CAI - DAYTON 36VF75

B07J27FZG5

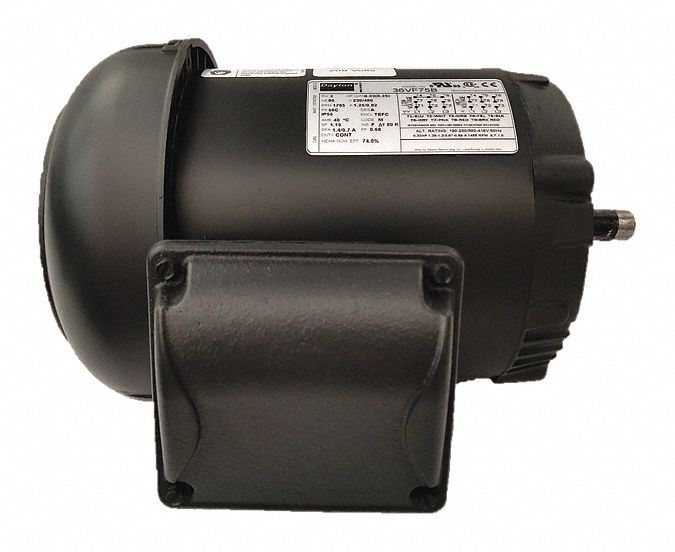

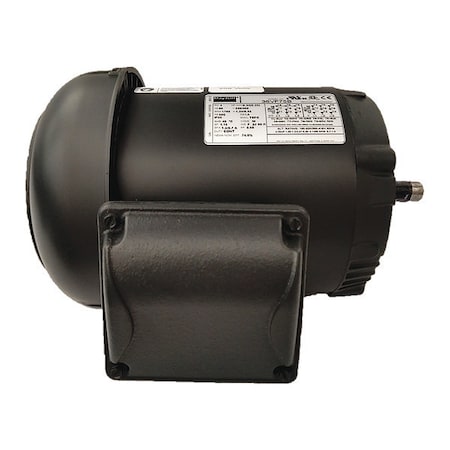

Dayton 1/3 HP General Purpose Motor,3-Phase,1765 Nameplate RPM,Voltage 208-230/460,Frame 56C

Dayton 1/3 HP General Purpose Motor,3-Phase,1765 Nameplate RPM,Voltage 208-230/460,Frame 56Czoom

Attributes

Key Value
Amps1.3-1.2/0.62
BearingsBall
BrandDayton
Current Stock9
Duty CycleContinuous
Efficiency74%
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Frame56C
HP1/3
Hz60
Insulation ClassF
International ShippingNo
ItemGeneral Purpose Motor
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 11/16 in
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Diameter6-1/2"
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length9-21/32"
Motor Thermal ProtectionNone
MountingC-Face/Rigid
Mpn36VF75
Nameplate RPM1,765
Number of Speeds1
Overall Length11-9/16", 11 9/16 in
Phase3
Product Type3 Phase
RotationReversible
RPM1765
RPM Range1,701-1,800
Service Factor (SF)1.15
Shaft Dia.5/8 in
Shaft Diameter5/8" Keyed
Shaft Length1-7/8", 1 7/8 in
Ship Weight25 lbs.
SKUZO-G1860419
StandardsCE, CSA, UL
SubCategoryMotors/Ac Motors
Thermal ProtectionNone
UPC190735276075
Voltage230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1860419195.99111Dayton24.15195.99 @ 1
simsupply.comZO-G1860419232.0419Dayton232.04 @ 1
thumbzoomsustainablesupply.comC2878237261.441In StockDayton24.15261.44 @ 1
emotorpro.com36VF75297.291In StockDayton25.0297.29 @ 1
thumbzoomRaptor SuppliesAH7KPQ301.47220351In StockDAYTON301.4722035 @ 1
