Dayton 4C330

B07C7XBTTM

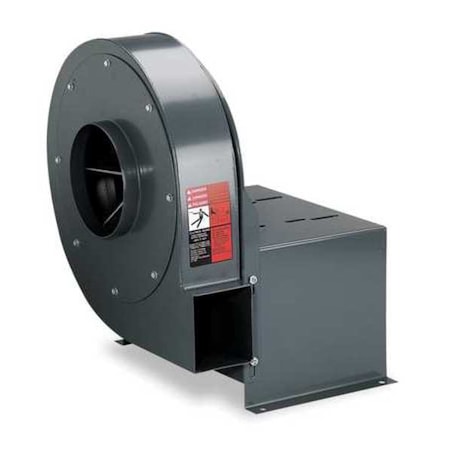

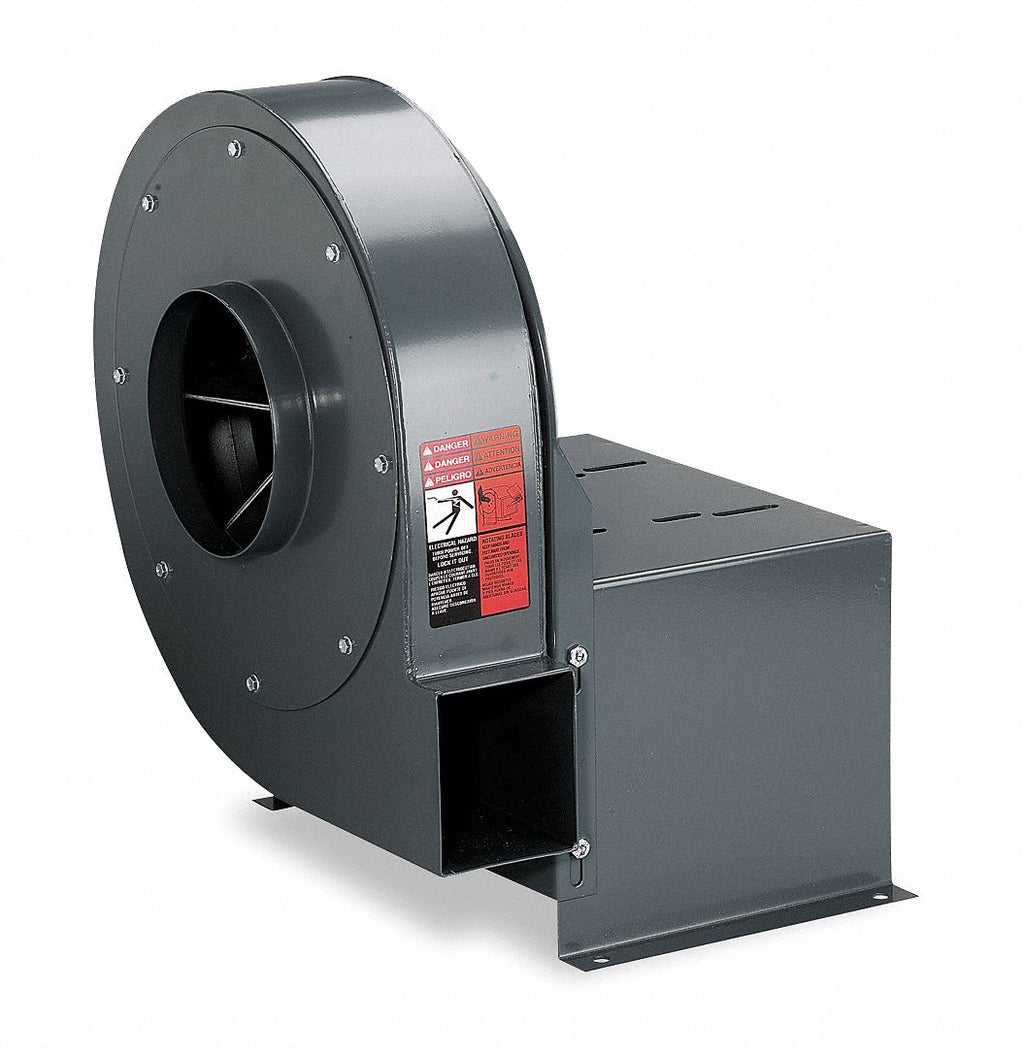

High Pressure Blower Less Motor, 13-1/2" Wheel Dia., 23-1/8"H ???

High Pressure Blower Less Motor, 13-1/2" Wheel Dia., 23-1/8"H ???zoom

Attributes

Key Value
20"?1,025.56
Agency ComplianceAMCA AIR
ApplicationHandling Long Stringy M.
AssemblyUnassembled
Bearing TypeBall in Motor
BrandDayton
ColorAluminum
Current Stock197
Depth (In.)18 7/8 in
Dimension A (In.)17 5/8 in
Dimension B (In.)11 1/4 in
Dimension C (In.)7 1/8 in
Dimension D (In.)5 3/4 in
Dimension E (In.)8 in
Dimension F (In.)9 9/16 in
Dimension G (In.)1 in
Dimension H (In.)10 1/2 in
Dimension J (In.)9 5/8 in
Dimension K (In.)11 3/8 in
Dimension L (In.)11 in
Dimension O (In.)18 7/8 in
Dimension P (In.)8 in
Dimension R (In.)11 1/2 in
Dimension S (In.)8 1/8 in
Dimension V (In.)7 1/4 in
Dimension X (In.)12 5/8 in
Discharge Height (In.)7 1/8 in
Discharge PositionBottom Angular Down, Bo.
Discharge Width (In.)5 3/4 in
Drive TypeDirect Drive
Electrical ConnectionGround Wire
FeaturesFloor-Mount Vibration I.
For Air TypeDusty
For Motor Horsepower (M.5 hp to 7 1/2 hp
For Ventilation TypeExhaust
Hazardous Location Appl.No
Hazardous Location Spec.Not for Use in Hazardou.
Height (In.)23 1/8 in
Housing ColourGray
Housing FinishGray Polyester Epoxy
Housing MaterialSteel
Housing Material FinishGray Baked Polyester Ep.
Housing Material Gauge16 ga
Includes MotorNo
Inlet Dia. (In.)8 in
Inlet Diameter8 in
International ShippingNo
ItemHigh Pressure Blower
Lead TimeExpected to ship in 1-2.
Manufacturer Warranty L.1 yr Limited
Max. Ambient Temp. (F)104 Degrees F
Max. Inlet Temp. (Deg. .180 Degrees F
Maximum Airflow2,005 cfm
Maximum Ambient Tempera.104 Degrees F
Maximum Inlet Air Tempe.180 Degrees F
Maximum Motor Horsepower7 1/2 hp
Maximum Static Pressure8 in wc
Minimum Airflow1,319 cfm
Minimum Motor Horsepower5 hp
Motor Frame Designation182T; 184T, 182T: 184T
Mount TypeMotor Mount
Mpn4C330
Number of Discharge Pos.8
Number of Inlets1
Outlet DiameterNot Applicable
Outlet Height7 1/8 in
Outlet ShapeRectangular
Outlet Size (H x W)7 1/8 in x 5 3/4 in
Outlet Width5 3/4 in
Overall Depth18 7/8 in
Overall Height23 1/8 in
Overall Width22 3/8 in
Product TypeHigh Pressure Blower
RotationCW/CCW
SKUZO-G2907177
Sound Level92 dBA @ 5 ft
StandardsAMCA Certified, NEC, OS.
TypeLess Motor
UPC190735321997
Wheel Bore (In.)1 1/8 in
Wheel Bore Diameter1 1/8 in
Wheel Dia. (In.)13 1/2 in
Wheel Diameter13 1/2 in
Wheel MaterialAluminum
Wheel TypeRadial
Wheel Width4 3/8 in
Wheel Width (In.)4 3/8 in
Width (In.)22 3/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2907177445.991261Dayton61.4445.99 @ 1
AmazonTPB000LDDK8K545.771In Stock3Dayton Electric Manufacturing Co.545.77 @ 1
thumbzoomRaptor SuppliesAD6WFC550.17196651In StockDAYTON550.1719665 @ 1
thumbzoomsimsupply.comZO-G2907177555.091197Dayton555.09 @ 1
thumbzoomsustainablesupply.comC1136991846.271In StockDayton61.4846.27 @ 1
grainger.caDMD4C330894.70105621In StockDAYTON61.4894.7010562 @ 1
