- mpn4CVZ3
- brandname: Dayton
- manufacturername: Dayton

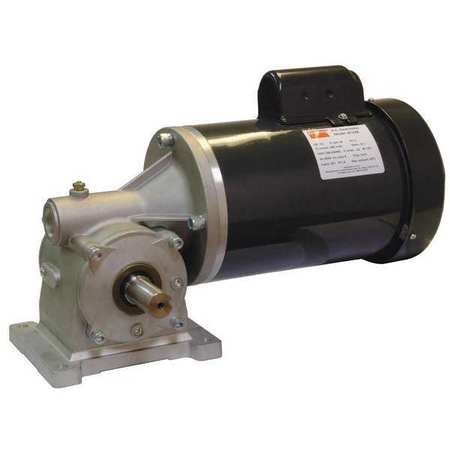

AC Gearmotor,30 RPM,TEFC,115/208-230V
- Brand: Dayton
- PartNumber: 4CVZ3
- Model: 4CVZ3
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Agency Compliance | UL Recognized, CSA |
| Ambient (C) | 40 |
| Application | Printing Press, Conveyo. |
| Approved | UL Recognized, CSA |
| Bearings | Ball, Roller on Case, B. |
| Brand | Dayton |
| Country of Origin (subj. | China |
| Current Stock | 2 |
| Dimension A | 9.27 in |
| Dimension AA | 6.72 in |
| Dimension AB | 6 in |
| Dimension B | 7.13 in |
| Dimension BA | 1" |
| Dimension C | 7 in |
| Dimension D | 6 in |
| Dimension D1 | 10.14" |
| Dimension D2 | 3" |
| Dimension E | 3.22 in |
| Dimension F | 5.2" |
| Dimension H | 3.25" |
| Dimension L | 2.5" |
| Dimension N | 0.44 in |
| Dimension S | 1.38" |
| Dimension U | 9 7/100" |
| Dimension X | 2" |
| Dimension Z | 5" |
| Enclosure | TEFC |
| Full Load Amps | 8.4/4.2 |
| Full Load Torque (In.-L. | 680.0 |
| Gear Case | Die Cast Aluminum |
| Gear Case Material | Die Cast Aluminum |
| Gear Material | Hardened Steel/Forged B. |
| Gear Ratio | 58:1 |
| Gear Type | Worm |
| Gearmotor Brake Type | None |
| Gearmotor Enclosure | Totally Enclosed Fan-Co. |
| Gearmotor Mounting Posi. | All Angle |
| Gearmotor Phase | 1 |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Shaft Orienta. | Right Angle |
| Gearmotor Shaft Type | Single Left |
| Gearmotor Type | AC Gearmotor |
| Gearmotor Voltage | 115/208-230 V AC, 115/2. |
| Gears | Hardened Steel Worm, Fo. |
| Height (Dimension O) | 10.66" |
| Housing | Aluminum/Cast Iron |
| Hz | 60, 60/50 Hz, 50/60 |
| Includes | Capacitor |
| Input HP | 1/2 hp, 1/2 |
| Insulation Class | F |
| International Shipping | No |
| Item | AC Gearmotor |
| Keyway (In.) | 1/4 X 1 1/4 |
| Keyway Size | 1/4" Square x 1-1/4" |
| Keyway Size Type | 1/4 sq in x 1-1/4 in, 1. |
| Lubrication | Gear Oil |
| Lubrication Quantity (Q. | 3/8 |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Max. Torque | 680 in.- lbs., 680.0 in. |
| Motor Frame | 56Y |
| Motor Type | Capacitor-Start, Capaci. |
| Mounting | All Position |
| Mpn | 4CVZ3 |
| Nameplate RPM | 30 RPM, 30 |
| Overall Length | 15.99 in, 15.99" |
| Overhung Load | 980 lbs., 980 lb |
| Overhung Load (Lb.) | 980 |
| Phase | 1 |
| Rotation | Reversible |
| RPM Range | 16 to 30 |
| Seals | Lip, Oil Seals on Axle . |
| Shaft | Single, Single Output |
| Shaft Dia. (Dimension U) | 1" |
| Shaft Dimensions (In.) | 1 X 2 1/4 |
| Shaft Length (Dimension. | 2.25" |
| Shaft Orientation | Right Angle |
| Ship Weight | 43 lbs. |
| SKU | ZO-G2339486 |
| Standards | UL Recognized/CSA |
| Starting Torque | 2,436 in-lb, 2,436 in.-. |
| Starting Torque (In.-Lb. | 2436 |
| SubCategory | Power Transmission |
| Thermal Protection | None, No |
| Type | Right Angle |
| UPC | 190735322994 |
| Voltage | 115/208-230 |
| Voltage Rating | 115/208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2339486 | 933.99 | 1 | In Stock | | Dayton | 43.0 | 933.99 @ 1 |
 | simsupply.com | ZO-G2339486 | 1072.66 | 1 | 2 | | Dayton | | 1072.66 @ 1 |
| grainger.ca | WWG4CVZ3 | 1268.07017872 | 1 | In Stock | | DAYTON | 43.0 | 1268.07017872 @ 1 |
| AmazonTP | B007IBQL1Q | 1300.0 | 1 | In Stock | 2 | DAYTON | | 1300.0 @ 1 |
| AmazonSC | B007IBQL1Q | 1324.99 | 1 | In Stock | | Dayton | | 1324.99 @ 1 |
 | sustainablesupply.com | C1685765 | 1375.96 | 1 | In Stock | | Dayton | 43.0 | 1375.96 @ 1 |
| emotorpro.com | 4CVZ3 | 1400.0 | 1 | In Stock | | Dayton | 43.0 | 1400.0 @ 1 |
