Dayton 4FDZ4

B007IBJO10

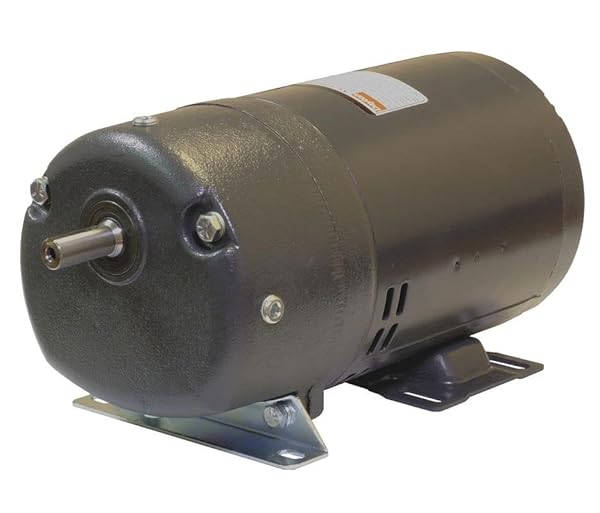

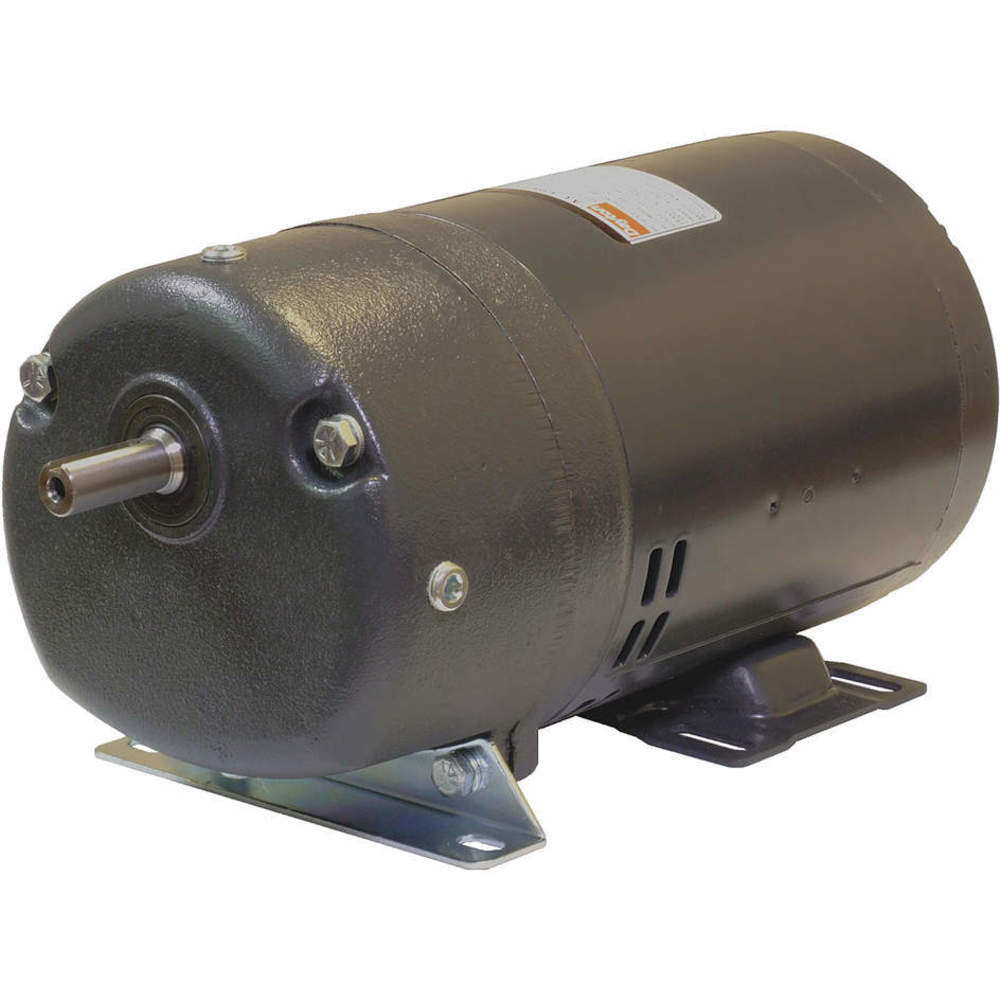

AC Gearmotor, 157 RPM, OFC, 208-230/460VAC

AC Gearmotor, 157 RPM, OFC, 208-230/460VACzoom

Attributes

Key Value
Agency ComplianceUL Recognized, CSA
Ambient (C)40
BearingsBall On Case And Motor
Dimension A6.5 in
Dimension C13.65 in
Dimension E2.75 in
Dimension H0.344"
Dimension N3/16 in x 1-1/8 in
Dimension S3.81"
Dimension U5/8"
Dimension Z5-1/8"
EnclosureOFC
Full Load Amps1.4-1.3/.7
Full Load Torque (In.-L.125.0
Gear CaseCast Iron
Gear Ratio11:1
GearsSteel
Height (Dimension O)6.83"
Hz60
Input HP1/3
Insulation ClassF
ItemAC Gearmotor
Keyway (In.)3/16 x 1 1/8
Keyway Depth1 1/8 in
Keyway Size3/16" Square x 1-1/8"
Keyway Size Type3/16 sq in x 1-1/8 in
Keyway Width3/16 in
Length Less Shaft12 1/2 in
Length Less Shaft (In.)12-1/2
LubricationSae #90, Type 5ep, Iso .
Motor Frame56Y
Motor Type3-Phase
Mount Hole Center-to-Ce.7.69 in
Mount Hole Center-to-Ce.5.5 in
MountingHorizontal
Nameplate RPM157
Output Shaft Diameter5/8 in
Output Shaft Height4.63 in
Output Shaft Length1 5/8 in
Overall Height6.83 in
Overall Length13.65 in
Overall Width6.5 in
Overhung Load (Lb.)245
Phase3
RotationReversible
SealsLip Type On Input And O.
ShaftSingle
Shaft Dia. (Dimension U)5/8"
Shaft Dimensions (In.)5/8 x 1 5/8
Shaft Length (Dimension.1.63"
Shaft OrientationParallel
Ship Weight41 lbs.
Thermal ProtectionNone
TypeParallel Shaft
Voltage Rating208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1095561892.9911Dayton40.29892.99 @ 1
emotorpro.com4FDZ41215.01In StockDayton41.01215.0 @ 1
thumbzoomsustainablesupply.comC26756521282.231In StockDayton40.291282.23 @ 1
thumbzoomRaptor SuppliesAD7LMN1467.53866351In StockDAYTON1467.5386635 @ 1
