Dayton 4JPD6

mpn4JPD6
brandname: DAYTON
manufacturername: DAYTON

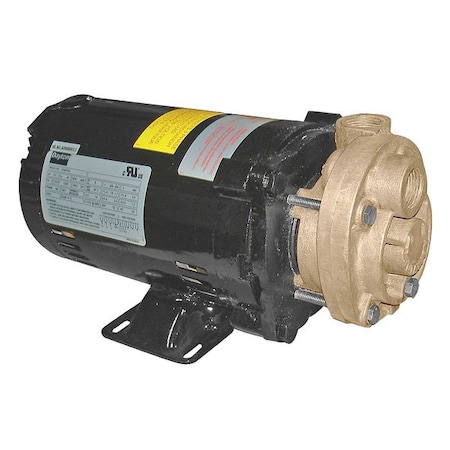

Turbine Pump, 1/2 HP, 3 Ph, 1.7/0.9 Amp

Brand: Dayton
PartNumber: 4JPD6
Color: Bronze
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Amps	1.8-1.7/0.9
Bearing Type	Ball
Best Efficiency GPM @ H.	1.8 @ 100 ft
Best Efficiency Head	100 ft
Case Pressure (Maximum)	300 psi
Compatible Discharge Pi.	3/4 in
Compatible Intake Pipe .	3/4 in
Compatible with Media T.	Water
Discharge Type	NPT
Duty Cycle	Continuous
Features	Designed to Handle Liqu.
Flow Rate @ 10 psi	6 gpm
Flow Rate @ 100 psi	1.1 gpm
Flow Rate @ 120 psi	1.2 gpm
Flow Rate @ 140 psi	Not Applicable
Flow Rate @ 15 psi	Not Applicable
Flow Rate @ 160 psi	Not Applicable
Flow Rate @ 180 psi	Not Applicable
Flow Rate @ 20 psi	5.4 gpm
Flow Rate @ 200 psi	Not Applicable
Flow Rate @ 220 psi	Not Applicable
Flow Rate @ 240 psi	Not Applicable
Flow Rate @ 260 psi	Not Applicable
Flow Rate @ 30 psi	4.9 gpm
Flow Rate @ 40 psi	4.3 gpm
Flow Rate @ 50 psi	3.7 gpm
Flow Rate @ 60 psi	3.4 gpm
Flow Rate @ 70 psi	Not Applicable
Flow Rate @ 80 psi	2.6 gpm
Flow Rate @ 90 psi	2.2 gpm
Frame	56J
Frequency	60 Hz
GPM @ 30 PSI	4.9
GPM @ 50 PSI	6.8
Height	6 3/8 in
Horsepower	1/2 hp
Housing Material	Bronze
HP	1/2 hp
Impeller Design	Open
Impeller Material	Bronze
Impeller Type	Open
Includes	OIPM
Intake and Discharge Si.	3/4 in , 3/4 in
Intake Type	NPT
Item	Turbine pump
Max. Pressure	120 psi
Maximum Flow Rate	6 gpm
Maximum RPM	3,450 RPM
Minimum Flow Rate	1.2 gpm
Minimum Media Temperatu.	-20 Degrees F
Motor Enclosure	ODP, Open Dripproof
Motor Frame Designation	56J
Motor RPM	3,450 RPM
Motor Type	3-Phase
Nameplate Voltage	208-230/460V AC
NPSHr	150 psi
Operation	Manual
Overall Height	6.38 in
Overall Width	6.5 in
Phase	3, Three
Priming	Self-Priming
Pump Housing Material	Bronze
Seal Material	Buna-N with Carbon and .
Seal Type	Mechanical Seal
Shut Off Pressure (Maxi.	120 psi
Specific Gravity (Maxim.	1
Standards	UL Listed
Voltage	208-230/460
Wetted Material	316 Stainless Steel, Br.
Wetted Materials	Bronze, Buna-N, Carbon,.
Width	6 1/2 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
grainger.ca	GGM4JPD6	566.12868	1	In Stock		DAYTON	36.11	566.12868 @ 1
Zoro	G1968915	843.99	1	1		Dayton	34.95	843.99 @ 1
AmazonTP	B004KFG3WK	936.32	1	In Stock	5	Dayton		936.32 @ 1
sustainablesupply.com	C2776715	1023.22	1	In Stock		Dayton	34.95	1023.22 @ 1
Raptor Supplies	AD8EXD	1387.033596	1	In Stock		DAYTON		1387.033596 @ 1
