Dayton 4JPF9

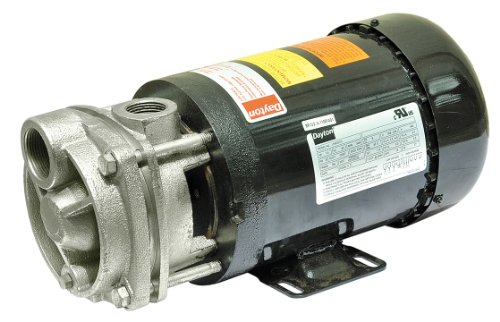

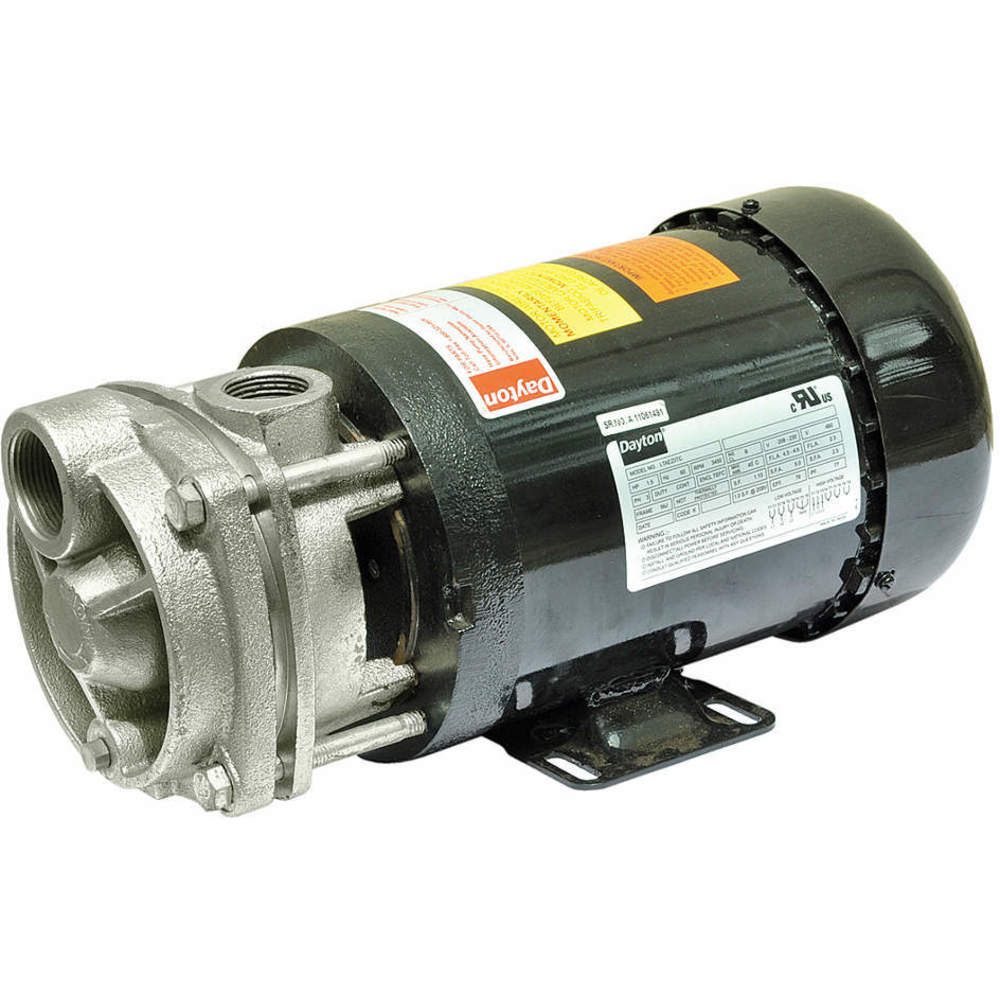

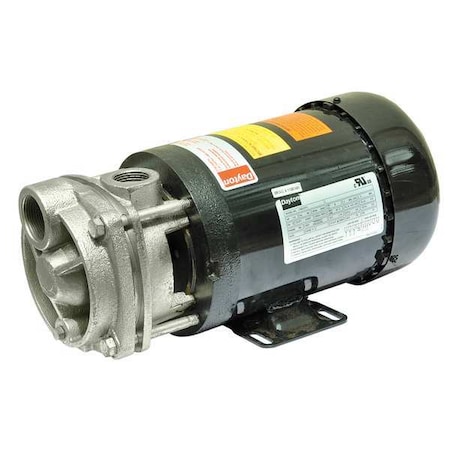

DAYTON 4JPF9 Turbine Pump, 1 1/2 HP, 3 Ph, 4.6/2.3 Amp

DAYTON 4JPF9 Turbine Pump, 1 1/2 HP, 3 Ph, 4.6/2.3 Ampzoom

Attributes

Key Value
Bearing TypeBall
Best Efficiency GPM @ H.7.0 @ 70 ft
Best Efficiency Head70 ft
BrandDayton
Case Pressure (Maximum)200 psi
Compatible Discharge Pi.1 in
Compatible Intake Pipe .1 1/4 in
Compatible with Media T.Water
Current Stock2
Discharge TypeNPT
Duty CycleContinuous
FeaturesDesigned to Handle Liqu.
Flow Rate @ 10 psi9.7 gpm
Flow Rate @ 100 psi5.6 gpm
Flow Rate @ 120 psi4.7 gpm
Flow Rate @ 140 psi0 gpm
Flow Rate @ 15 psiNot Applicable
Flow Rate @ 160 psiNot Applicable
Flow Rate @ 180 psiNot Applicable
Flow Rate @ 20 psi9.2 gpm
Flow Rate @ 200 psiNot Applicable
Flow Rate @ 220 psiNot Applicable
Flow Rate @ 240 psiNot Applicable
Flow Rate @ 260 psiNot Applicable
Flow Rate @ 30 psi8.8 gpm
Flow Rate @ 40 psi8.3 gpm
Flow Rate @ 50 psi7.8 gpm
Flow Rate @ 60 psi7.4 gpm
Flow Rate @ 70 psiNot Applicable
Flow Rate @ 80 psi6.5 gpm
Flow Rate @ 90 psi6.1 gpm
Frequency60 Hz
GPM @ 10 PSI9.7
GPM @ 40 PSI8.3
GPM @ 60 PSI7.4
GPM @ 80 PSI6.5
GPM @ 90 PSI6.1
Height7 1/8 in
Horsepower1 1/2 hp
Housing MaterialCast Iron with nickel p.
HP1 1/2 hp
Hz60
Impeller DesignOpen
Impeller MaterialBronze
IncludesOIPM
Inlet1-1/4 in
Inlet Pressure170 psi
Intake and Discharge Si.1 1/4 in , 1 in
Intake TypeNPT
International ShippingNo
ItemTurbine pump
Max. Case Pressure200 psi
Max. Pressure140 psi
Maximum Flow Rate9.7 gpm
Maximum RPM3,450 RPM
Minimum Flow Rate4.7 gpm
Minimum Media Temperatu.-20 Degrees F
Motor EnclosureTotally Enclosed Fan Co.
Motor Frame Designation56J
Motor Type3-Phase
Mpn4JPF9
Nameplate Voltage208-230/460V AC
NPSHr170 psi
OperationManual
Overall Height7.13 in
Overall Width8.88 in
PhaseThree
PrimingSelf-Priming
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialCast Iron
Seal MaterialBuna-N with Carbon and .
Seal TypeMechanical Seal
Shut Off Pressure (Maxi.140 psi
SKUZO-G0426946
Specific Gravity (Maxim.1
StandardsUL Listed
SubCategoryPumps
UPC190735327135
Voltage208-230/460
Wetted Material316 Stainless Steel, Br.
Wetted MaterialsBronze, Carbon, Cast Ir.
Width8 7/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0426946904.9911Dayton53.0904.99 @ 1
grainger.caGGM4JPF9910.41475611In StockDAYTON53.0910.4147561 @ 1
thumbzoomsimsupply.comZO-G04269461049.512Dayton1049.5 @ 1
thumbzoomsustainablesupply.comC17406011057.391In StockDayton53.01057.39 @ 1
thumbzoomRaptor SuppliesAD8EYB1486.5894811In StockDAYTON1486.589481 @ 1
