Dayton 4RN87

B007I9Z28Q

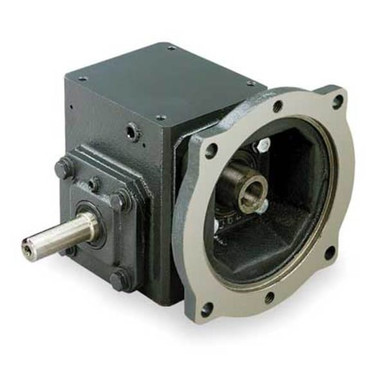

Dayton Standard Cast Iron C-Face Speed Reducer, Single Output, 388 lb. Overhung Load 4RN87-1 Each

Dayton Standard Cast Iron C-Face Speed Reducer, Single Output, 388 lb. Overhung Load 4RN87-1 Eachzoom

Attributes

Key Value
BearingsBall
Bore Dia.5/8"
BrandDayton
Current Stock3
Dimension U3/4 in
DutyStandard
FinishPowdered Epoxy Paint
Frame56c
Gear MaterialHardened and Ground Ste.
Gear TypeWorm
Housing MaterialCast Iron
Input RPM1750 rpm, 1750
Input Shaft Diameter5/8 in
International ShippingNo
ItemSpeed Reducer
Lead TimeExpected to ship in 1-2.
LubricationKluber Food Grade, Klub.
Max. Input HP1
Max. Output Torque163.00 in.-lb.
Max. Torque (In.-Lbs.)163
MountingAny Position Except Inp.
Mpn4RN87
NEMA/IEC Frame56c
Nominal Output RPM350 RPM, 350
Nominal Ratio5:1
Number of Stages1
Oil SealDouble Lip
Output Shaft Dia.3/4 in
Output Shaft Diameter3/4 in
Output Torque @ 1 HP163 in-lb, 163 in-lbs
Output Torque @ 1 HP (I.163
Output Torque @ 1.5 HP163 in-lbs
Output Torque @ 1/2 HP79 in-lb
Output Torque @ 1/2 HP .79
Output Torque @ 1/3 HP51 in-lb
Output Torque @ 1/3 HP .51
Output Torque @ 1/4 HP37 in-lb, 37 in.-lb.
Output Torque @ 1/4 HP .37
Output Torque @ 1/40 HP3,600 in-lbs, 3600 in.-.
Output Torque @ 3/4 HP121 in-lbs, 121 in-lb
Output Torque @ 3/4 HP .121
Overhung Load388 lb, 388 lbs.
Overhung Load (Lb.)388
Pinion MaterialHardened Steel
Prop 65WARNING: Cancer and Rep.
RotationCW/CCW, Forward/Reversi.
Seal TypeDouble Lip
Shaft AssemblyLeft
Shaft OrientationRight Angle
Ship Weight21 lbs.
Single/Double Output/Un.Single Output
SKUZO-G2042546
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA
SubCategoryPower Transmission
TypeC-Face
UPC190735332702
Worm Center Distance1.54 in, 1.54", 1.53"
Worm Gear MaterialBronze

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caDTN4RN87447.517463481In StockDAYTON20.4447.51746348 @ 1
thumbzoomZoroG2042546534.9918Dayton20.4534.99 @ 1
thumbzoomsimsupply.comZO-G2042546637.9213Dayton637.92 @ 1
thumbzoomsustainablesupply.comC2879621717.011In StockDayton20.4717.01 @ 1
thumbzoomRaptor SuppliesAD9FTC879.25388851In StockDAYTON879.2538885 @ 1
emotorpro.com4RN871038.461In StockDayton21.01038.46 @ 1
