- mpn4TM82
- brandname: DAYTON
- manufacturername: DAYTON

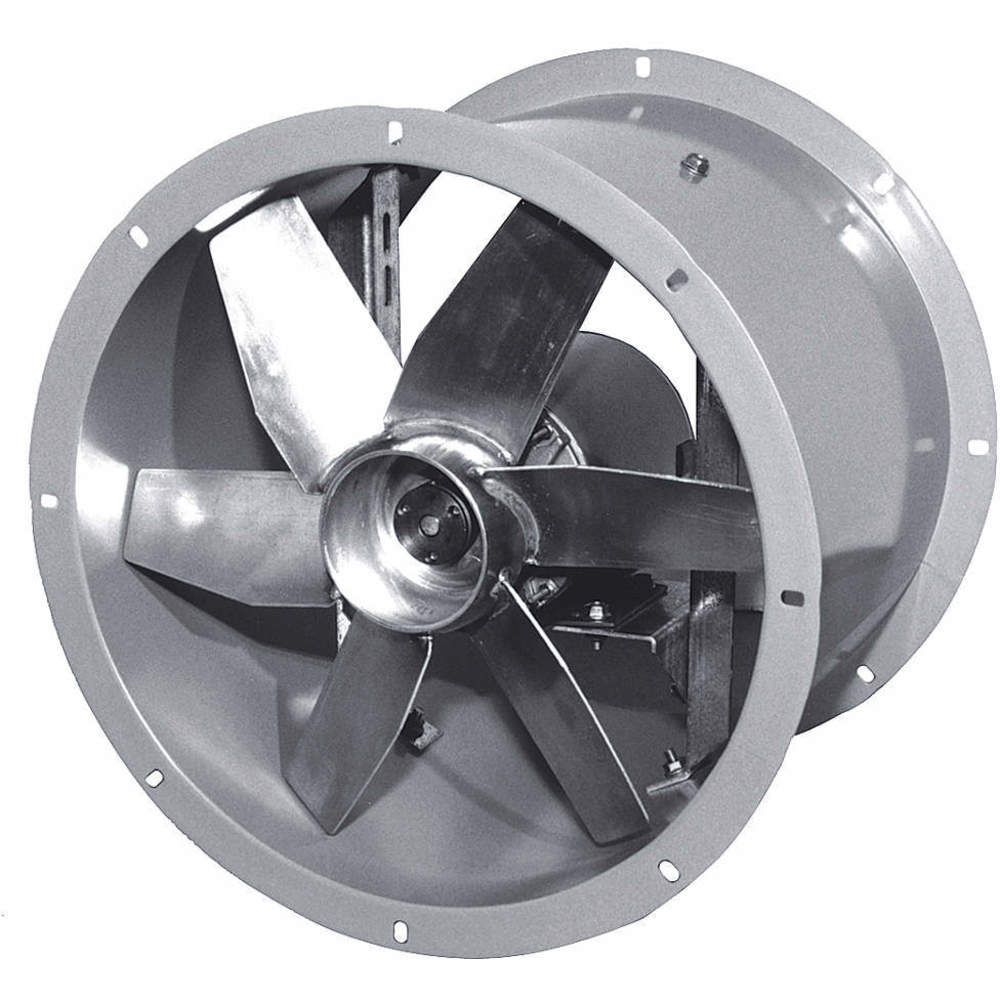

Direct Drive Tubeaxial Fan,18 In.,115V
- Brand: Dayton
- PartNumber: 4TM82
- PackageQuantity: 1
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Airflow @ 0.000 in SP | 3,938 cfm |
| Assembly | Fully Assembled |
| Bearing Type | Ball Bearing |
| Blade Diameter | 18 in |
| Blade Material | Aluminum |
| Body Diameter | 18 1/2 in |
| Bolt Circle Diameter | 19 7/8 in |
| Brake Horsepower | 7/50 hp |
| Center Height | 10 1/2 in |
| Compatible Flange Grain. | 4C718 |
| Current | 6.7/4.6 A |
| Drive Type | Direct Drive |
| Exhaust Airflow @ 0.000. | 3,938 cfm |
| Exhaust Airflow @ 0.125. | 3,724 cfm |
| Exhaust Airflow @ 0.250. | 3,521 cfm |
| Exhaust Airflow @ 0.375. | 3,323 cfm |
| Exhaust Airflow @ 0.500. | 3,058 cfm |
| Features | Precision Balanced Alum. |
| Flange Diameter | 21 in |
| For Air Type | Clean Air |
| Frequency | 60 Hz |
| Housing Finish | Baked Enamel |
| Housing Material | Steel |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Item | Tubeaxial Fan |
| Maximum Ambient Tempera. | 104 Degrees F |
| Maximum Fan Speed | 1,750 RPM |
| Maximum Inlet Air Tempe. | 104 Degrees F |
| Maximum Noise Level @ 5. | 25 sones |
| Motor Enclosure | Totally Enclosed Air Ov. |
| Motor Horsepower | 1/2 hp |
| Motor Type | Capacitor-Start |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 115V AC |
| Noise Level | 25/20 sones@ 0.250 in S. |
| Number of Blades | 6 |
| Number of Speeds | 2 |
| Overall Diameter | 21 in |
| Overall Height | 21 in |
| Overall Length | 16 in |
| Phase | 1 |
| Standards | UL Listed and AMCA Cert. |
| Supply Airflow @ 0.000 . | 3,938 cfm |
| Supply Airflow @ 0.125 . | 3,724 cfm |
| Supply Airflow @ 0.250 . | 3,521 cfm |
| Supply Airflow @ 0.375 . | 3,323 cfm |
| Supply Airflow @ 0.500 . | 3,058 cfm |
