Dayton 4ZA35

B00F1I3FGM

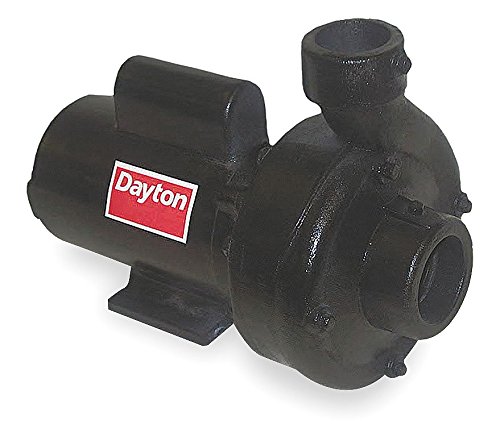

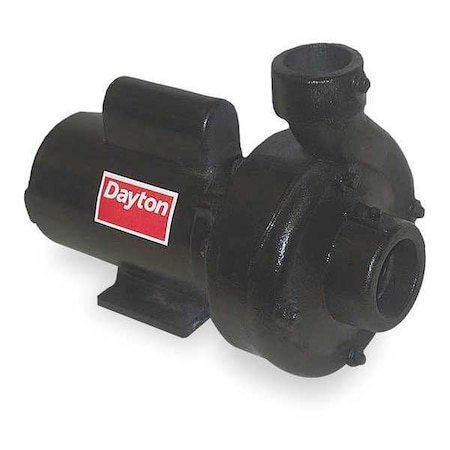

Dayton Cast Iron 2 HP Centrifugal Pump 115/230V, 4ZA35

Dayton Cast Iron 2 HP Centrifugal Pump 115/230V, 4ZA35zoom

Attributes

Key Value
Amps16.6/8.3
Bearing TypeBall
Best Efficiency Range G.65 to 33 gpm @ 90 to 14.
Country of Origin (subj.India
Discharge Pump TypeStraight Center Dischar.
DutyContinuous
Frame56J
GPM of Water @ 20 Ft. o.168
GPM of Water @ 30 Ft. o.153
GPM of Water @ 40 Ft. o.130
GPM of Water @ 50 Ft. o.96.2
Height12 in
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP2
HP - Pumps2 hp
Hz60
Impeller MaterialBronze
Impeller TypeEnclosed
Inlet2-1/2" NPT
Inlet Pressure100 psi
Inlet Size - Pumps2-1/2 in NPT
ItemStraight Center Dischar.
Length16 1/4 in
Length (Straight Wirewa.16 1/4 in
Manufacturers Warranty .1 yr
Max. Dia. Solids13/32 in
Max. Head63 ft
Max. Liquid Temp.180 Degrees F
Max. Pressure26.5 psi
Max. Pressure - Pumps27 psi
Max. Specific Gravity1.0
Motor EnclosureTEFC
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor RPM3,500 RPM
Motor TypeCapacitor Start
Outlet2" NPT
Outlet Size - Pumps2 in NPT
Phase1
Phase - Pumps1
Port Rotation4 Position Increments
Seal MaterialBuna Elastomer and Stai.
Voltage115/230
Voltage - Pumps120/240V AC
Wetted MaterialsBuna-N, Carbon, Ceramic.
Width9 3/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2028144890.651In StockDayton890.65 @ 1
thumbzoomsustainablesupply.comC17404711127.411In StockDayton90.01127.41 @ 1
AmazonTPB00F1I3FGM1144.451In Stock2Dayton1144.45 @ 1
AmazonUNKB00F1I3FGM1144.451In StockDayton1144.45 @ 1
