Dayton 6A197

B000BGRCHW

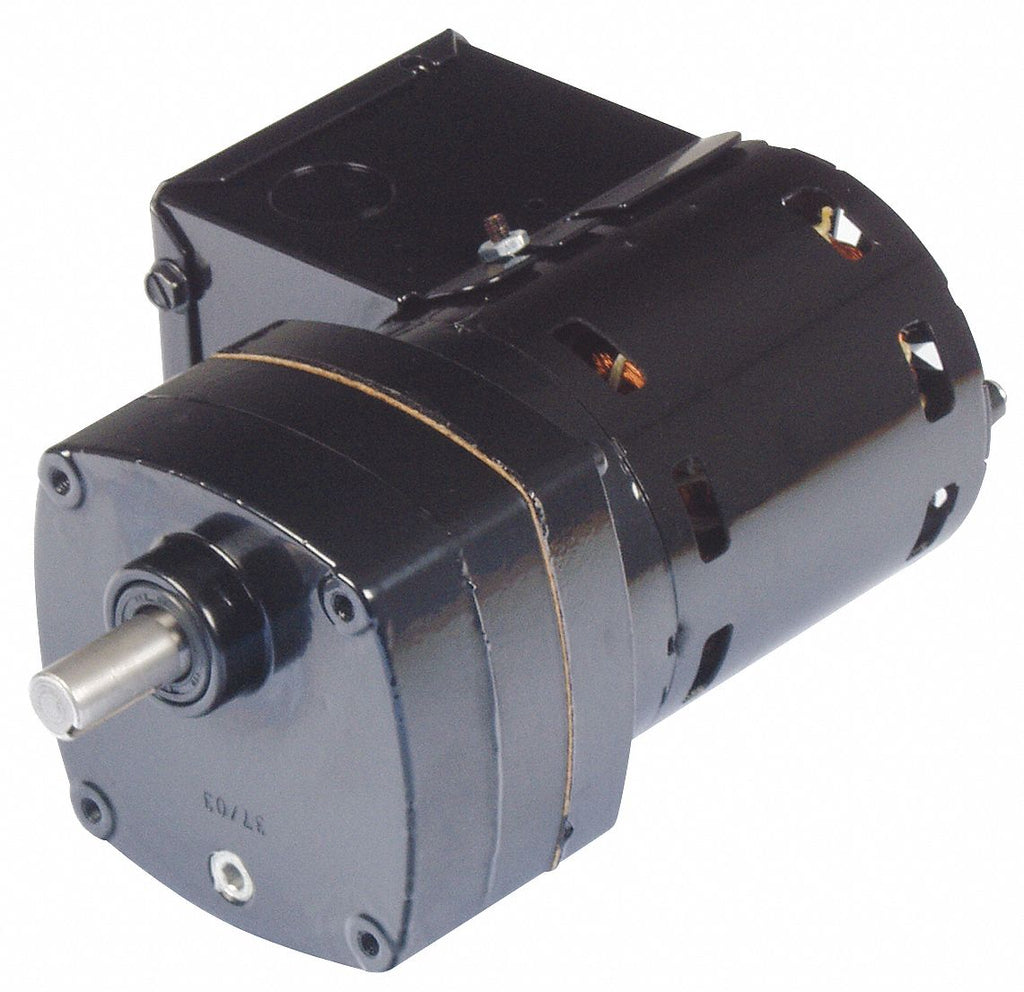

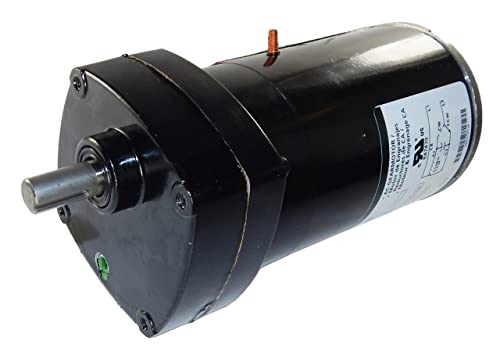

AC Gearmotor, 95 RPM, TENV, 115V

AC Gearmotor, 95 RPM, TENV, 115Vzoom

Attributes

Key Value
Ambient (C)40
BearingsHeavy Duty Needle on Ca.
Brake5X400
BrandDayton
Capacitor RequiredDMD2MDV6, 2MDV6
Current Stock22

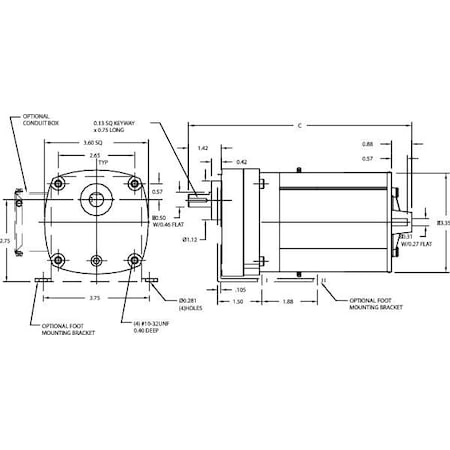

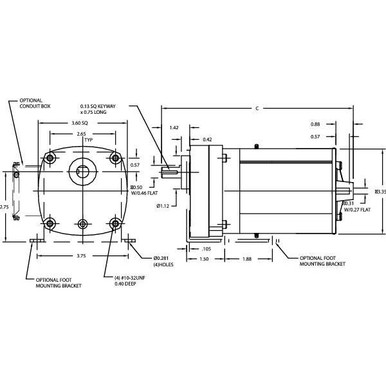

Dimension C8.41 in
Dimension L4.34"
Dimension X2.1"
EnclosureTENV
Full Load Amps0.60, 0.6
Full Load Torque (In.-L.30.0
Gear CaseDie Cast Aluminum
Gear Case MaterialDie Cast Aluminum
Gear MaterialSteel or Heat Treated P.
Gear Ratio17:1
Gear TypeHelical First Stage/Spur
Gearmotor Brake TypeNone
Gearmotor EnclosureTotally Enclosed Nonven.
Gearmotor Mounting Posi.All Angle
Gearmotor Phase1
Gearmotor RotationCW/CCW
Gearmotor Shaft Orienta.Parallel
Gearmotor Shaft TypeSingle
Gearmotor TypeAC Gearmotor
Gearmotor Voltage115V AC, 115 V AC
Gears1st Stage Steel, Helica.
HousingDie Cast Aluminum
Hz60
Input HP1/20
International ShippingNo
ItemAC Gearmotor
Keyway Depth0 in
Keyway Width1/8 mm
Lead TimeExpected to ship in 1-2.
Length Less Shaft7-3/8", 7 3/8 in
Length Less Shaft (In.)7-3/8
LubricationPermanent Heavy Duty Ge.
Max. Ambient Temp.40 Degrees C
Max. Torque30.0 in-lb, 30 in.- lbs.
Motor TypePermanent Split Capacit.
Mount Hole Center-to-Ce.1.63 in
Mount Hole Center-to-Ce.2.63 in
MountingAll Position
Mpn6A197
Nameplate RPM95, 95 RPM
Output Shaft Diameter1/2 in
Output Shaft Height1 in
Output Shaft Length1 in
Overall Height3.63 in
Overall Width3.63 in
Overhung Load90 lbs.
Overhung Load (Lb.)90
Phase1
RotationRev.
SealsSpring Loaded Lip Type .
Shaft Dia. (Dimension U)1/2"
Shaft Dimensions (In.)1/2 x 1
Shaft Length (Dimension.1"
Shaft OrientationParallel
Ship Weight7 lbs.
SKUZO-G0711986
StandardsUL Recognized, C-UL Rec.
SubCategoryPower Transmission
Thermal ProtectionNone
TypeParallel Shaft
UPC190735359624
Voltage Rating115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB000BGRCHW238.651In Stock2DAYTON238.65 @ 1
grainger.caDTN6A197347.051396961In StockDAYTON6.95347.05139696 @ 1
thumbzoomZoroG0711986374.99140Dayton6.95374.99 @ 1
emotorpro.com6A197410.221In StockDayton7.0410.22 @ 1
thumbzoomsimsupply.comZO-G0711986443.85122Dayton443.85 @ 1
thumbzoomsustainablesupply.comC2611027499.81In StockDayton7.0499.8 @ 1
thumbzoomRaptor SuppliesAE7QTZ616.34143351In StockDAYTON616.3414335 @ 1
