Dayton Audio 15MB500N-8

B09TQBSZ2J

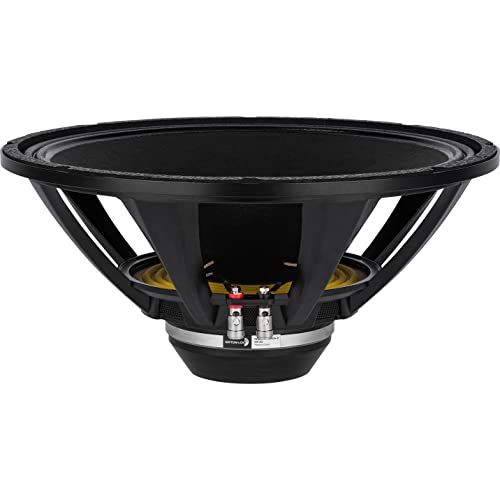

Dayton Audio Pro 15 in. 8 Ohm Neodymium Midbass Woofer Odeum 15N

Dayton Audio Pro 15 in. 8 Ohm Neodymium Midbass Woofer Odeum 15Nzoom

Attributes

Key Value
# Mounting Holes8
Baffle Cutout Diameter13.89"
Basket / Frame MaterialSteel
BL Product (BL)20.96T?m
BrandDayton Audio
Compliance Equivalent V.5.46ft?
Cone MaterialCoated Paper
DC Resistance (Re)5.8?
Depth6.65"
Diaphragm Mass Inc. Air.93.39g
Electromagnetic Q (Qes)0.34
Frequency Response40 to 4,500Hz
Impedance8?
Magnet MaterialNeodymium
Maximum Linear Excursio.6.55mm
Mechanical Compliance o.0.142mm/N
Mechanical Q (Qms)10.47
Model15MB500N-8
Nominal Diameter12"
Overall Outside Diameter15.42"
Part Number295-643
Power Handling (MAX)1000 Watts
Power Handling (RMS)500 Watts
Resonant Frequency (Fs)44Hz
Sealed F3114Hz
Sealed Volume1.7ft?
Sensitivity98.6dB 2.83V/1m
Surface Area of Cone (S.844.53cm?
Surround MaterialPaper
Total Q (Qts)0.33
Unit of MeasureEach
UPC848791008511
Vented F349Hz
Vented Volume3.5ft?
Voice Coil Diameter3"
Voice Coil FormerFiberglass
Voice Coil Inductance (.0.14mH
Voice Coil Wire MaterialCopper
Weight14
