Dayton Audio RSS315HFA-8

B0045ZCC0C

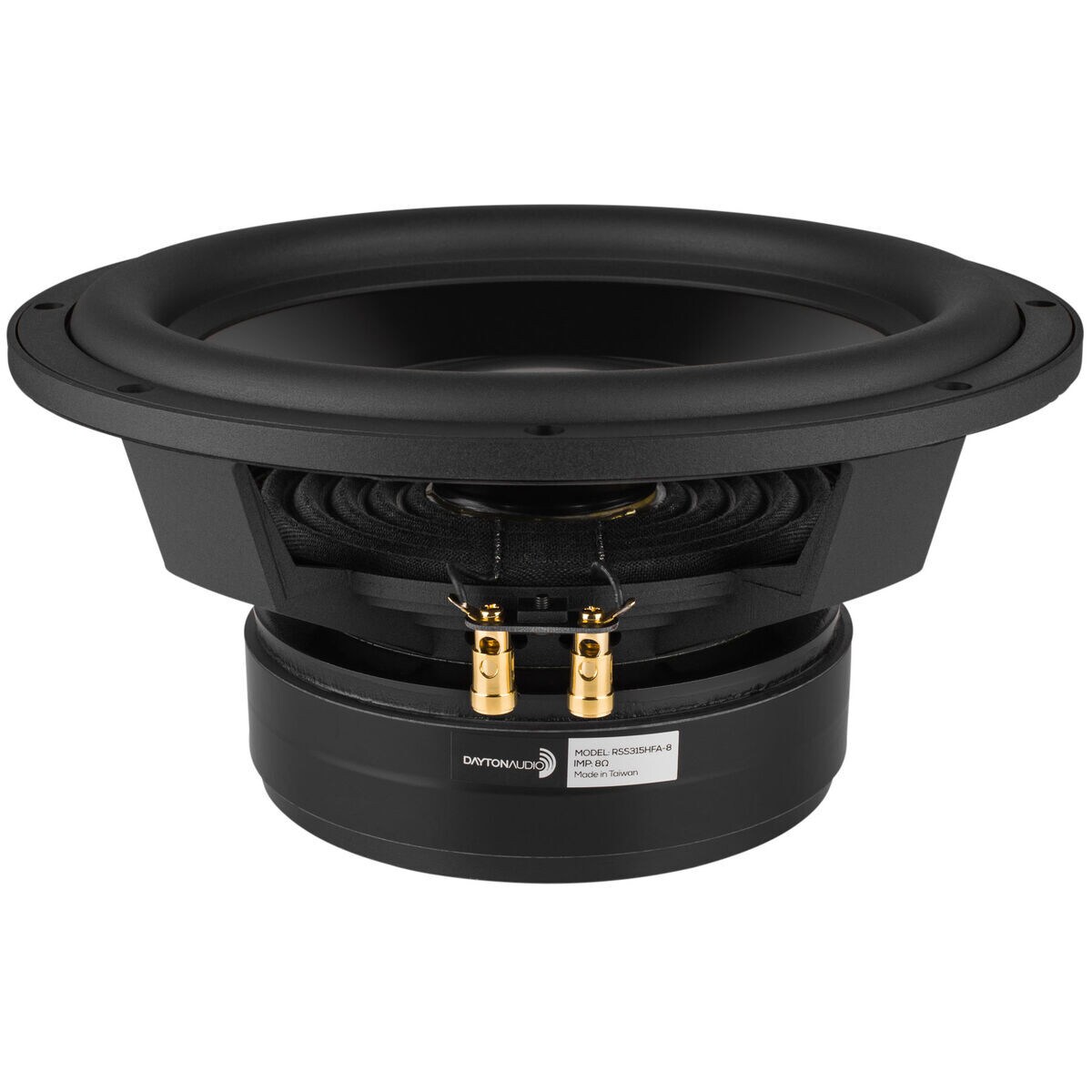

Dayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohm

Dayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohmzoom

Attributes

Key Value
# Mounting Holes8
Baffle Cutout Diameter11.1"
Basket / Frame MaterialSteel
BL Product (BL)18T?m
BrandDayton Audio
Compliance Equivalent V.3.43ft?
Cone MaterialAluminum
DC Resistance (Re)6.5?
Depth5.75"
Diaphragm Mass Inc. Air.194g
Electromagnetic Q (Qes)0.54
Frequency Response25 to 1,500Hz
Impedance8?
Magnet MaterialFerrite
Maximum Linear Excursio.14.3mm
Mechanical Compliance o.0.27mm/N
Mechanical Q (Qms)2.5
ModelRSS315HFA-8
Nominal Diameter12"
Overall Outside Diameter12.36"
Part Number295-445
Power Handling (MAX)700 Watts
Power Handling (RMS)400 Watts
Resonant Frequency (Fs)22.2Hz
Sealed F339Hz
Sealed Volume1.5ft?
Sensitivity85.7dB 2.83V/1m
Surface Area of Cone (S.506.7cm?
Surround MaterialRubber
Total Q (Qts)0.45
Unit of MeasureEach
UPC844632088681
Vented F325Hz
Vented Volume2.5ft?
Voice Coil Diameter2.58"
Voice Coil FormerAluminum
Voice Coil Inductance (.1.56mH
Voice Coil Wire MaterialCopper
Weight24.5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomparts-express.com295-445234.981In StockDayton Audio24.5234.98 @ 1
