PartsCollection EFB0424LD

B094Z26Q1D

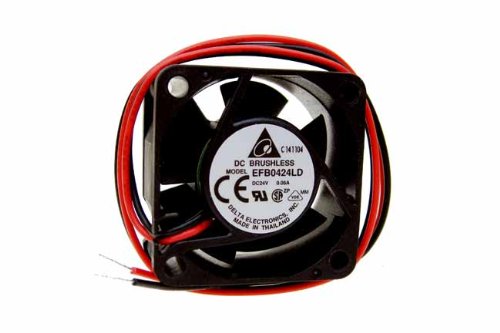

PartsCollection 4020 EFB0424LD 40MM Brushless Cooling Fan, 40mm x 40mm x 20mm 24V DC EFB0424LD Fan 5000RPM

PartsCollection 4020 EFB0424LD 40MM Brushless Cooling Fan, 40mm x 40mm x 20mm 24V DC EFB0424LD Fan 5000RPMzoom

Attributes

Key Value
Air Flow5.5 CFM (0.154m?/min)
Approval AgencyCE, CSA, UL, VDE
Base Product NumberEFB0424
Bearing TypeBall
CategoryFans, Thermal Management
Current Rating (Amps)0.040A
Fan TypeTubeaxial
FeaturesLocked Rotor Protection
Ingress Protection-
Lifetime @ Temp.70000 Hrs @ 40?C
Material - BladePlastic
Material - FramePlastic
MfrDelta Electronics
Noise22.0dB(A)
Operating Temperature14 ~ 158?F (-10 ~ 70?C)
PackageTray
Part StatusActive
Power (Watts)960 mW
RPM5000 RPM
SeriesEFB
Size / DimensionSquare - 40mm L x 40mm H
Static Pressure0.136 in H2O (33.9 Pa)
Termination2 Wire Leads
Voltage - Rated24VDC
Voltage Range14 ~ 27.6VDC
Weight0.073 lb (33.11 g)
Width20.00mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AvnetEFB0424LD6.418921In StockDelta Product Groups6.41892 @ 1
Master ElectronicsEFB0424LD8.051413Delta Product Groups8.05 @ 1
HotendaH190036610.931619Delta Product Groups / Fans10.93 @ 1
thumbzoomNewark77AH733611.76336In StockDELTA ELECTRONICS / FANS11.76 @ 1
Digi-Key101434213.14672In StockDelta Electronics0.07313.14 @ 1
Future Electronics508477713.4881336Delta13.488 @ 1
