Scales Plus offers free product support from experienced technicians. Have questions about the Detecto LFB-1000HMT? Contact us for free product support!
Attributes
| Key ^ | Value |
|---|---|
| Cable Color Code | Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Ground |
| Cable Length | 120" |
| Capacity | 1100 lb |
| Construction | Stainless steel |
| Excitation Terminal Resistance | 375 - 414 ohms |
| Full Scale Output | 2 mV/V |
| Height, Width | 1" |
| Insulation Resistance | 5000 megohms |
| IP Rating | IP67 |
| Length | 4.8" |
| Manufacturer | Detecto |

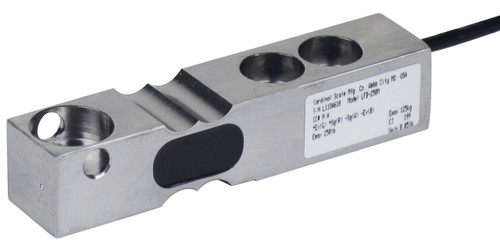

| Model | LFB-1000HMT |
| Recommended Excitation Voltage | 10 VDC (maximum of 15 V) |
| Safe Overload | 150% capacity |
| Seal Type | Environmentally sealed |
| Signal Terminal Resistance | 350 ? 5 ohms |
