| Bore (in.) | 3.780 in. |
| Bore (mm) | 96.000mm |

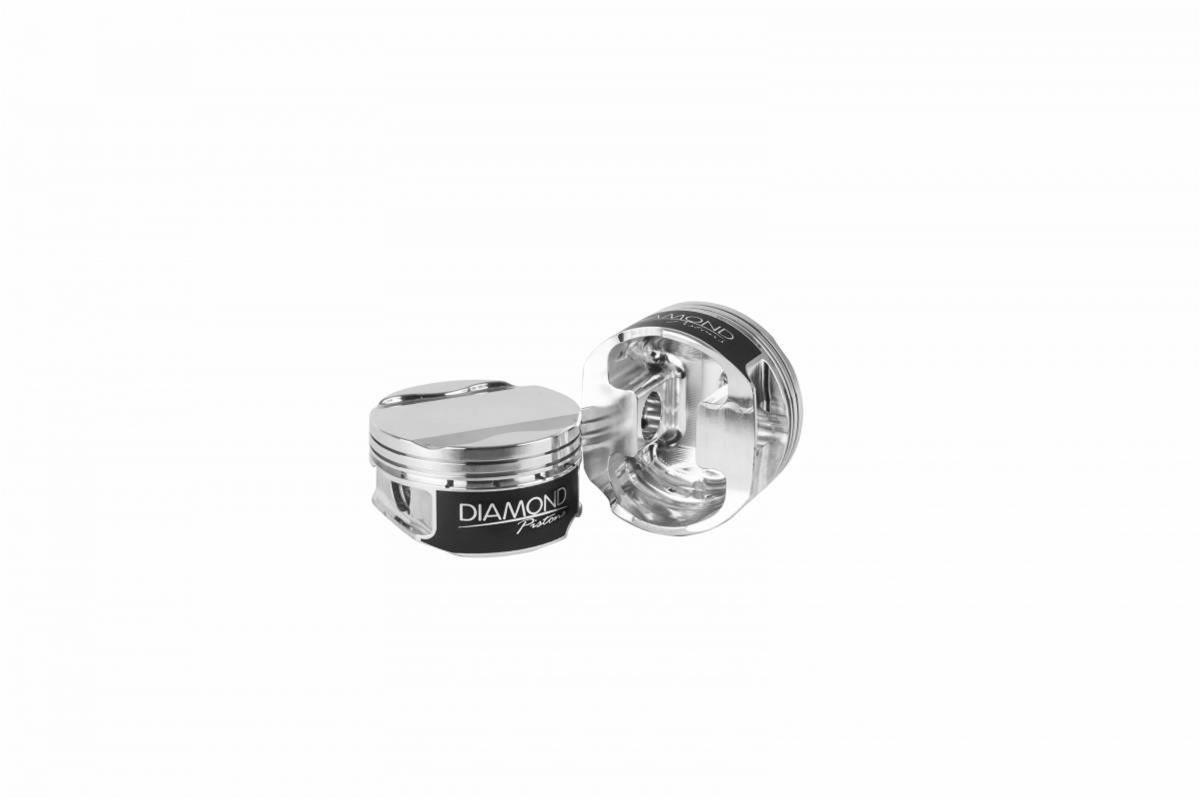

| Brand | Diamond Pistons |
| Compression Height (in.) | 1.167 in. |
| Engine Stroke Type | Stock |
| File Fit, Piston Rings Included, Wrist Pin Included, Wrist Pin Retainers Included | Yes |
| Gapless | No |
| Manufacturer's Part Number | 83053-6 |
| Notes | Pistons are 2618 material. |
| Oil Ring Material, Top Ring Material | Stainless steel |
| Oil Ring Tension | Standard |
| Oil Ring Thickness | 3.0mm |
| Part Type | Pistons |
| Pin Diameter (in.) | 0.866 in. |
| Piston Head Volume (cc) | -1.00cc |
| Piston Material | Forged aluminum |
| Piston Ring Thickness | 1.20mm x 1.50mm x 3.00mm |
| Piston Style | Dome, with four valve reliefs |
| Product Line | Diamond Pistons Sport Compact Series |
| Quantity | Sold as a kit. |
| Rod Length | 5.676 in. |
| Second Ring Facing Material, Second Ring Material | Ductile iron |
| Second Ring Thickness | 1.5mm |
| Stroke | 81.40mm |
| Summit Racing Part Number | DPP-83053-6 |
| Top Ring Facing Material | C-23 PVD Chrome |
| Top Ring Thickness | 1.2mm |
| UPC | 686162345830 |
| Wrist Pin Style | Floating |
