DIODES SBR05M100BLP-7

B06XDK8DVD

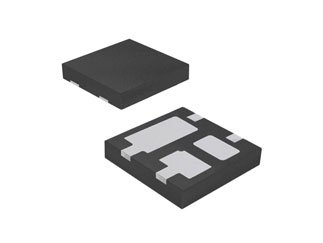

DIODES SBR05M100BLP-7 Single Phase 100 V 0.5 A Surface Mount Super Barrier Bridge Rectifier -DFN3030-4 - 3000 item(s)

DIODES SBR05M100BLP-7 Single Phase 100 V 0.5 A Surface Mount Super Barrier Bridge Rectifier -DFN3030-4 - 3000 item(s)zoom

Attributes

Key Value
Alternate Part No.621-SBR05M100BLP-7
Average Current0.5 A
Base Product NumberSBR05
BrandDiodes Incorporated
CategoryDiscrete Semiconductor .
ConfigurationQuad Bridge
Current - Average Recti.500 mA
Current - Reverse Leaka.25 ?A @ 100 V
Diode TypeSingle Phase
Forward Continuous Curr.0.5 A
Forward Voltage Drop0.73 V
ManufacturerDiodes Incorporated
Manufacturer Part No.SBR05M100BLP-7
Max Surge Current8 A
Maximum Operating Tempe.+ 150 C
Maximum Reverse Leakage.25 uA
MfrDiodes Incorporated
Minimum Operating Tempe.- 55 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Operating Temperature-55?C ~ 150?C (TJ)
PackageTape & Reel (TR)
Package / Case4-PowerUDFN
Package/CaseDFN-4
PackagingReel
Peak Reverse Voltage100 V
ProductSchottky Rectifiers
Product CategorySchottky Diodes & Recti.
Product StatusActive
Repetitive Peak Voltage100 V
SeriesSBR?, SBR Series
Supplier Device PackageU-DFN3030-4
TechnologySilicon, Super Barrier
Voltage - Forward (Vf) .630 mV @ 500 mA
Voltage - Peak Reverse .100 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceSBR05M100BLP-70.22515118000Diodes Incorporated0.225 @ 3000
Digi-Key82839130.4250413000Diodes Incorporated0.42504 @ 3000
thumbzoomNewark69AH21260.43117792DIODES INC.0.43 @ 3000
Future Electronics70005830.552300099000Diodes Incorporated0.552 @ 3000
us.rs-online.com705505540.63203000Diodes Inc0.63 @ 3000
RS Delivers823-16400.991214460DiodesZetex0.9912 @ 3000
thumbzoomswatee.comSBR05M100BLP-71.4813000Diodes Incorporated1.48 @ 3000
