- mpn006590
- brandname: Dodge
- manufacturername: Dodge

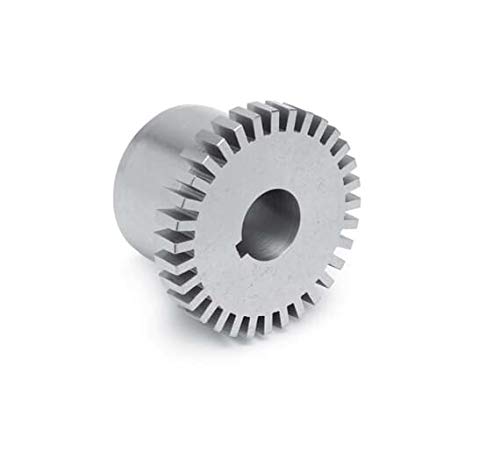

DODGE - 1030T HUB X 1-1/4, Actual 1.25 in Bore Dia, 1.9 inBore Length,
- Brand: Dodge
- PartNumber: 006590
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Angular misalignment | 0.5000, 0.5 |
| Axial misalignment | 0.3750 in, 9.525 mm |
| Bore diameter actual | 1.2500 in, 31.75 mm |
| Bore fit | Clearance |
| Bore length | 1.9000 in, 48.26 mm |
| Bore tolerance standard | AGMA 9002 |
| bore type: | Finished w/ Keyway |
| Country of Origin (subj. | United States |
| Coupling component | Hub |
| coupling outside diamet. | 3.88 (T10) in, 4-3/4 (T. |
| coupling overall length: | 3.89 in |
| Coupling size | 1030 |
| coupling size code: | 1030 |
| Coupling style | Grid |
| Coupling type | Metallic |
| horsepower @ 100 rpm: | 2.09 hp |
| Horsepower per 100 rat | 2.0900 hp, 1.559 kW |
| hub material: | Steel |
| hub type: | Standard Grid Taper Hub |
| I.D. | 1 1/4 in |
| keyway size: | 1/4 x 1/8 in |
| Lubrication type | Grease |
| Material | Steel |
| Max RPM | 3600 rpm |
| Max temperature rating | 215.0000 F, 101.667 C |
| maximum rpm: | 6000 RPM |
| Min temperature rating | -22.0000 F, -30.0 C |
| operating temperature r. | -35 to +210 |
| Parallel misalignment | 0.0050 in, 0.127 mm |
| Rated Torque | 1320.0000 lbf, 5871.653. |
| Shaft attachment | Bored to size |
| Shaft spacing | Close coupled |
| torque capacity: | 1320 in-lbs |
