- mpn20Q20L56
- brandname: Dodge
- manufacturername: Dodge

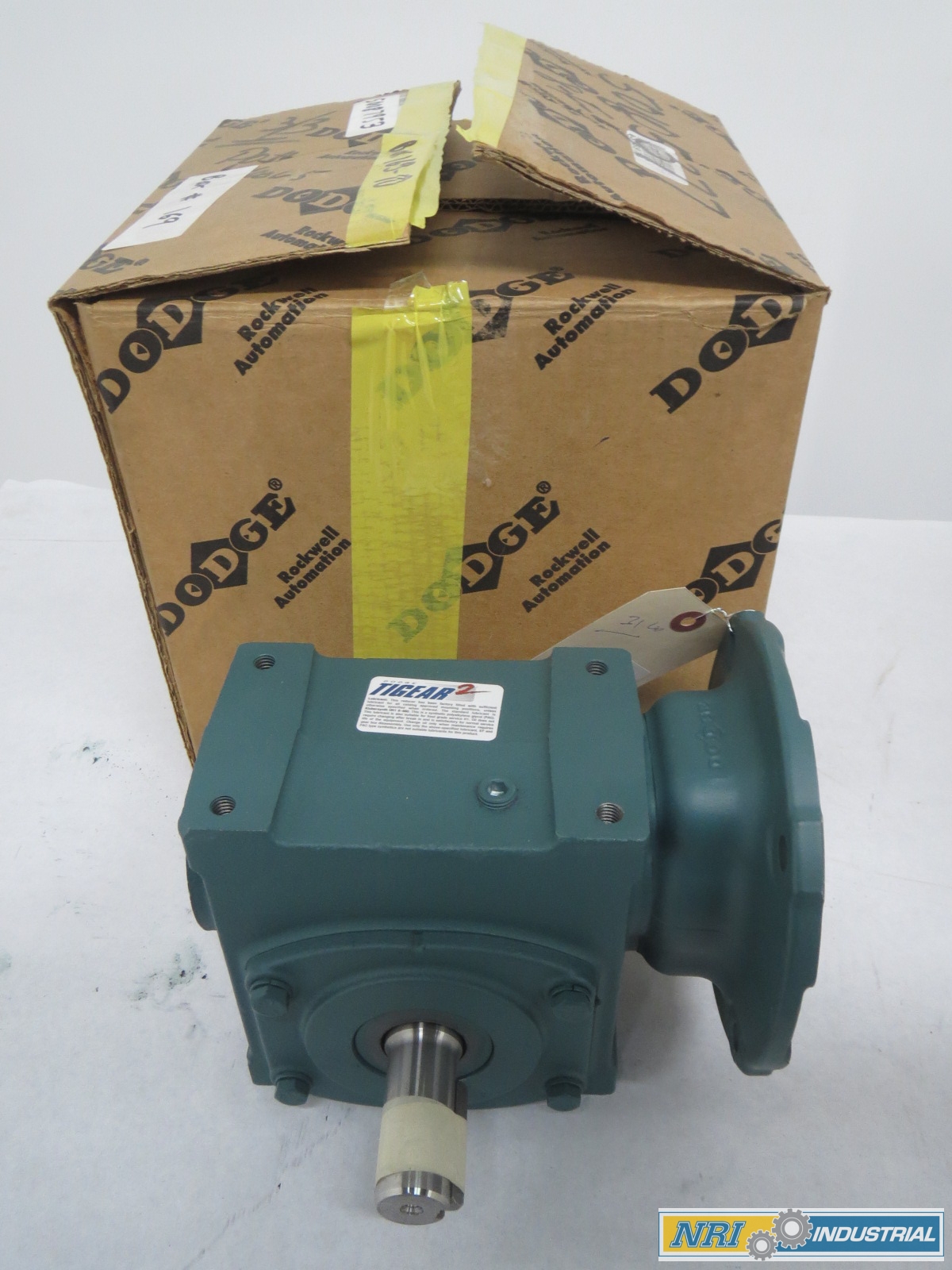

Dodge - 20Q20L56 - - Dodge Tigear-2 Reducer
- Brand: Dodge
- PartNumber: 20Q20L56
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.2400 in, 56.896 mm |
| Case size | 20 |
| Center distance (in) | 2 in, Center distance (. |
| Center to end of shaft . | 4.6900 in, 119.126 mm |
| Finish | Green |
| Horsepower rating input | 1.3400 hp, 0.999 kW |
| Horsepower rating output | 1.1100 hp, 0.828 kW |
| Housing material | Cast iron |
| Input | 56C flange |
| Input flange | 56C |
| Input HP | 1.34 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 88 rpm |
| Motor compatibility | NEMA motor, 56C frame |
| Mounting bolt pattern l. | 5.0000 in, 127.0 mm |
| Mounting bolt pattern w. | 2.8800 in, 73.152 mm |
| Nominal ratio | 20 |
| Output | Left side solid output . |
| Output bore/shaft diame. | 1 in |
| Output horse power | 1.11 |
| Output shaft | Left (solid A) |
| Output shaft center to . | 5.0000 in, 127.0 mm |
| Output style | Left |
| Overhung load | 1560 lbf, 6939.226 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 796 in/lb, 796.0 in/lb |
| Ratio | 20 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.0000 in, 25.4 mm |
| Shaft length output | 2.1100 in, 53.594 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 1.9900 hp, 1.484 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | B370056 | 294.98 | 1 | In Stock | | DODGE | | 294.98 @ 1 |
 | Zoro | G708846273 | 646.99 | 1 | 1 | | Dodge | | 646.99 @ 1 |
 | Walker Industrial | 20Q20L56 | 760.4 | 1 | In Stock | | Dodge | | 760.4 @ 1 |
 | MRO Supply | 141894 | 760.4 | 1 | In Stock | | Dodge | | 760.4 @ 1 |
| AmazonTP | B081B498GC | 899.7 | 1 | In Stock | 3 | Dodge | | 899.7 @ 1 |
| cbtcompany.com | 20Q20L56 | 958.49 | 1 | In Stock | | Dodge | | 958.49 @ 1 |
| kirbyrisk.com | 2059048 | 1027.39 | 1 | In Stock | | Dodge | | 1027.39 @ 1 |
