- mpn26Q10H14
- brandname: Dodge
- manufacturername: Dodge

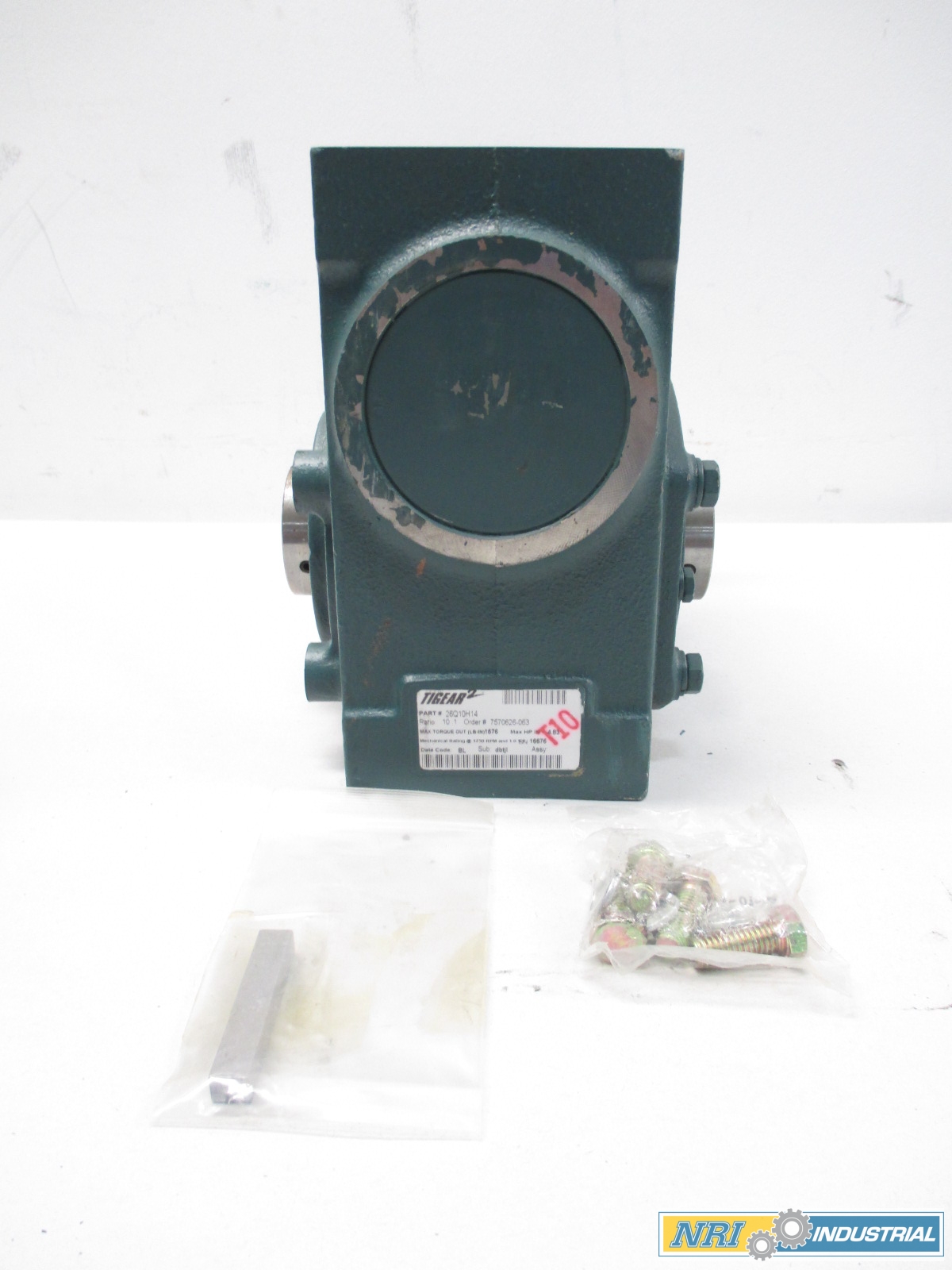

Dodge - 26Q10H14 - - Dodge Tigear-2 Reducer
- Brand: Dodge
- PartNumber: 26Q10H14
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Bore dia output | 1.4380 in, 36.525 mm |
| Bore length | 6.6200 in, 168.148 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 4.8300 hp, 3.602 kW |
| Horsepower rating output | 4.3700 hp, 3.259 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 4.83 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| Nominal ratio | 10 |
| Output | Hollow bore |
| Output bore/shaft diame. | 1.4375 in |
| Output horse power | 4.37 |
| Output shaft | Hollow |
| Output shaft center to . | 5.4900 in, 139.446 mm |
| Output style | Hollow |
| Overhung load | 1610 lbf, 7161.637 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 1576 in/lb, 1576.0 in/lb |
| Ratio | 10 to 1 |
| Seal type | Single-lip contact |
| Suitable for washdown | No |
| Thermal horsepower rati. | 5.6100 hp, 4.183 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D417924 | 257.52 | 1 | In Stock | | DODGE | | 257.52 @ 1 |
 | Walker Industrial | 26Q10H14 | 1263.36 | 1 | In Stock | | Dodge | | 1263.36 @ 1 |
| factorysupplyoutlet.com | UQ58OJ | 1310.26 | 1 | In Stock | 25 | DODGE | | 1310.26 @ 1 |
 | MRO Supply | 142513 | 1431.81 | 1 | In Stock | | Dodge | | 1431.81 @ 1 |
