- mpn30AZ05H14
- brandname: Dodge
- manufacturername: Dodge

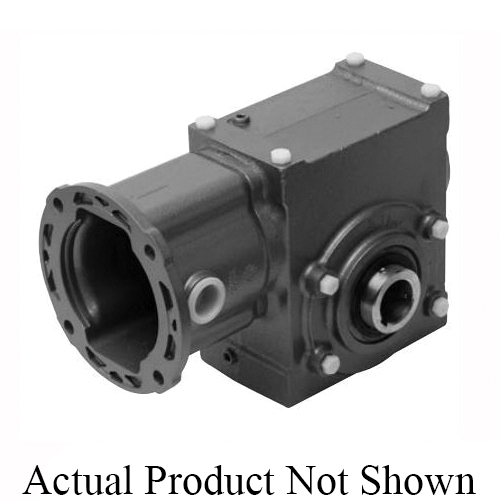

DODGE 30AZ05H14 TIGEAR-2 E-Z KLEEN REDUCER
- Brand: Dodge
- PartNumber: 30AZ05H14
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| Base to output center h. | 3.2500 in, 82.55 mm |
| Bore dia output | 1.9380 in, 49.225 mm |
| Bore length | 7.7600 in, 197.104 mm |
| Case size | 30 |
| Center distance (in) | 3 in, Center distance (. |
| Finish | Silver-gray epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 10.8400 hp, 8.083 kW |
| Horsepower rating output | 10.2700 hp, 7.658 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 10.84 |
| Input style | 3-Piece coupled |
| Lubrication type | PAG, standard temperatu. |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 7.0000 in, 177.8 mm |
| Mounting bolt pattern w. | 4.0000 in, 101.6 mm |
| Nominal ratio | 5 |
| Output | Hollow bore |
| Output bore/shaft diame. | 1.9375 in |
| Output horse power | 10.27 |
| Output shaft | Hollow |
| Output shaft center to . | 9.2300 in, 234.442 mm |
| Output style | Hollow |
| Overhung load | 1330 lbf, 5916.135 N |
| Paint type | Stainless epoxy |
| Paint/coating | Green |
| Rated torque output | 1849 in/lb, 1849.0 in/lb |
| Ratio | 5 to 1 |
| Seal type | Two-piece harsh duty |
| Suitable for washdown | Yes |
| Thermal horsepower rati. | 12.5300 hp, 9.344 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 30AZ05H14 | 2571.84 | 1 | In Stock | 10 | Dodge | | 2571.84 @ 1 |
 | MRO Supply | 145951 | 2914.39 | 1 | In Stock | | Dodge | | 2914.39 @ 1 |
 | Purvis | 30AZ05H14 | 3155.52 | 1 | In Stock | | Dodge | | 3155.52 @ 1 |
| factorysupplyoutlet.com | EM96BB | 3943.91 | 1 | In Stock | 25 | DODGE | | 3943.91 @ 1 |
