- mpn35Q15LR18
- brandname: Dodge
- manufacturername: Dodge

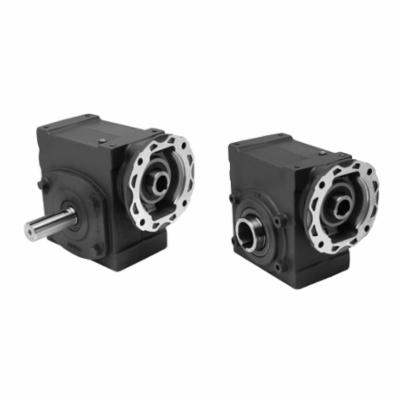

Dodge 35Q15LR18 CENTER DISTANCE: 3.5 RATIO: 15:1 OUTPUT RPM:
- Brand: Dodge
- PartNumber: 35Q15LR18
Attributes
| Key | Value |
|---|
| Base to output center h. | 3.9900 in, 101.346 mm |
| Case size | 35 |
| Center distance (in) | 3.5 in, Center distance. |
| Center to end of shaft . | 7.0600 in, 179.324 mm |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 7.4400 hp, 5.548 kW |
| Horsepower rating output | 6.6600 hp, 4.966 kW |
| Housing material | Cast iron |
| Input | 180TC flange |
| Input flange | 180TC |
| Input HP | 7.44 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 117 rpm |
| Motor compatibility | NEMA motor, 180TC frame |
| Mounting bolt pattern l. | 7.5000 in, 190.5 mm |
| Mounting bolt pattern w. | 4.0000 in, 101.6 mm |
| Nominal ratio | 15 |
| Output | Double solid output sha. |
| Output bore/shaft diame. | 1.5 in |
| Output horse power | 6.66 |
| Output shaft | Double (solid) |
| Output shaft center to . | 7.5500 in, 191.77 mm |
| Output style | Left, right |
| Overhung load | 2760 lbf, 12277.092 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 3599 in/lb, 3599.0 in/lb |
| Ratio | 15 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.5000 in, 38.1 mm |
| Shaft length output | 3.5100 in, 89.154 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 7.5600 hp, 5.637 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 35Q15LR18 | 2086.8 | 1 | In Stock | 10 | Dodge | | 2086.8 @ 1 |
 | MRO Supply | 151467 | 2364.84 | 1 | In Stock | | Dodge | | 2364.84 @ 1 |
 | Purvis | 35Q15LR18 | 2560.4 | 1 | In Stock | | Dodge | | 2560.4 @ 1 |
| factorysupplyoutlet.com | AH30ZR | 3200.1 | 1 | In Stock | 25 | DODGE | | 3200.1 @ 1 |
