- mpn47Q60R18WP
- brandname: Dodge
- manufacturername: Dodge

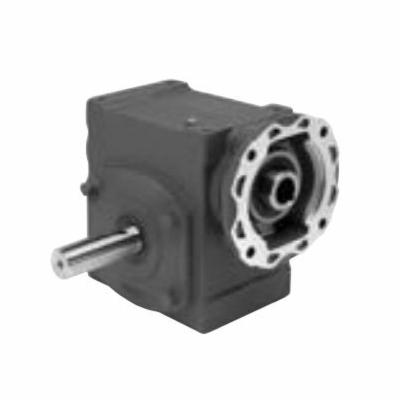

Dodge 47Q60R18WP CENTER DISTANCE: 4.7 RATIO: 60:1 OUTPUT RPM:
- Brand: Dodge
- PartNumber: 47Q60R18WP
Attributes
| Key | Value |
|---|
| Base to output center h. | 5.3100 in, 134.874 mm |
| Case size | 47 |
| Center distance (in) | 4.7 in, Center distance. |
| Center to end of shaft . | 9.0600 in, 230.124 mm |
| Finish | White epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 4.1200 hp, 3.072 kW |
| Horsepower rating output | 2.6300 hp, 1.961 kW |
| Housing material | Cast iron |
| Input | 180TC flange |
| Input flange | 180TC |
| Input HP | 4.12 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 29 rpm |
| Motor compatibility | NEMA motor, 180TC frame |
| Mounting bolt pattern l. | 11.0000 in, 279.4 mm |
| Mounting bolt pattern w. | 5.8100 in, 147.574 mm |
| Nominal ratio | 60 |
| Output | Right side solid output. |
| Output bore/shaft diame. | 2 in |
| Output horse power | 2.63 |
| Output shaft center to . | 9.4700 in, 240.538 mm |
| Output style | Right |
| Overhung load | 5600 lbf, 24910.041 N |
| Paint type | White epoxy |
| Paint/coating | White |
| Rated torque output | 5683 in/lb, 5683.0 in/lb |
| Ratio | 60 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 2.0000 in, 50.8 mm |
| Shaft length output | 4.0100 in, 101.854 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 3.6500 hp, 2.722 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| factorysupplyoutlet.com | VU22AW | 3936.17 | 1 | In Stock | 25 | DODGE | | 3936.17 @ 1 |
 | MRO Supply | 151502 | 4509.87 | 1 | In Stock | | Dodge | | 4509.87 @ 1 |
 | Walker Industrial | 47Q60R18WP | 4509.87 | 1 | In Stock | 17 | Dodge | | 4509.87 @ 1 |
 | Purvis | 47Q60R18WP | 4882.76 | 1 | In Stock | | Dodge | | 4882.76 @ 1 |
