Dodge P2BSC014

B006MI7IO0

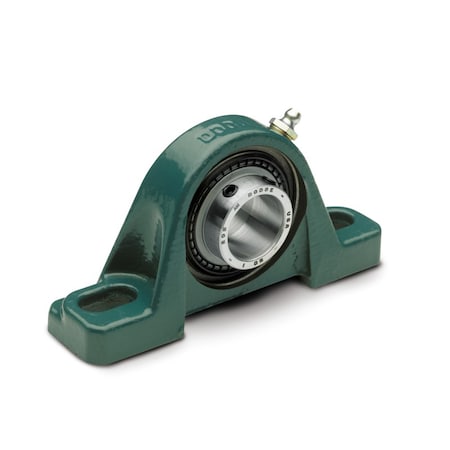

Dodge P2BSC014 Normal-Duty Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Inner Ring, Steel Insert, Inch, 7/8" Bore Diameter

Dodge P2BSC014 Normal-Duty Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Inner Ring, Steel Insert, Inch, 7/8" Bore Diameterzoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationGeneral Purpose
Ball bearing series205 series
Base to center height1.4400 in, 36.576 mm
Base to Center Height1.438 Inch | 36.525 Mil.
Bearing typeBall, ball
Bolt centerline range4 1/4 inch-4 1/2 inch
Bolt Diameter0.3750 in
Bolt Spacing Maximum4.5 Inch | 114.3Millime.
Bolt Spacing Minimum3.688 Inch | 93.675Mill.
Bolt to bolt max4.5000 in, 114.3 mm
Bolt to bolt min3.6900 in, 93.726 mm
Bore7/8 in
Bore length1.3400 in, 34.036 mm
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
FinishPowder coated
Global Part Number GPN522078
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.7/8 inch
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-014
Insert typeBall Bearing
Length Thru Bore1.188 Inch | 30.17 Mill.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max RPM7500 rpm
Max Speed4500 rpm
Measure systemImperial
Mounting Bolts3/8 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .4.1 Inch | 105 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
price$ 68.59 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft centerline height1 7/16 inch
Shaft diameter0.8750 in
Standoff housingNo
Static load capacity1769 lbf, 7868.904 N
Suitable for high tempe.No
Suitable for washdownNo
Take-up frame sizeLD-10, TS-100
titleP2B-SC-014
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm0.82
Weight / LBS1.8

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingP2B-SC-01458.31In StockDODGE1.80458.3 @ 1
thumbzoomMRO Supply12336573.081In StockDodge73.08 @ 1
thumbzoomZoroG00041727089.381In Stock20Dodge89.38 @ 1
