- mpn43200/15
- brandname: Doran
- manufacturername: Doran

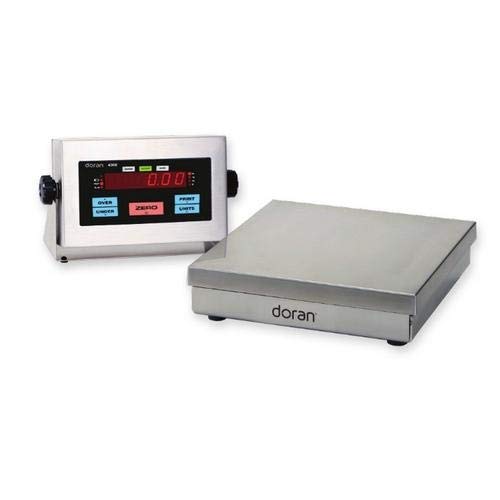

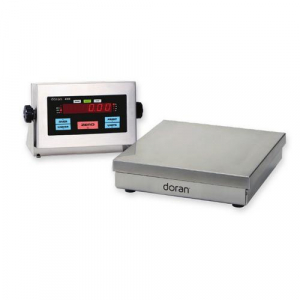

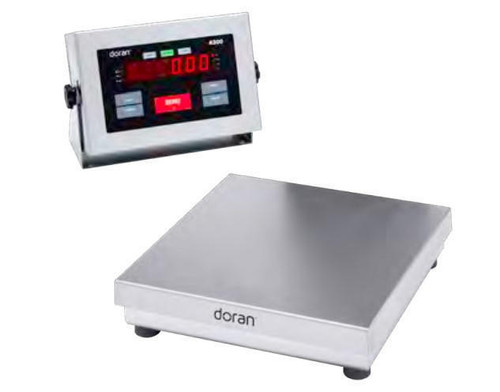

Doran 43200/15, 4300 200 lb. SS Checkweigher Scale, U-Bracket, NTEP
- Brand: Doran
- PartNumber: 43200/15
- PackageQuantity: 1
- Manufacturer: Doran
- Label: Doran
Attributes
| Key | Value |
|---|
| Analog Sensitivity | 0.16 uV/e min., 0.5 uV/. |
| Analog Signal Range | -0.5 mV/V to 5mV/V; 4 &. |
| Base Dimension | 15" x 15" |
| Base NTEP CC | 97-097A1 |
| Brand | Doran |
| Buttons | Zero, Over, Under, Unit. |
| Cable Length (between b. | Approx. 6 ft |
| Capacity | 200 lb |
| Capacity (kg x g) | 91 x 20g |
| Capacity (lb) | 200 x 0.05 |
| Capacity (oz) P | 3200 x 1 |
| Class | III |
| Construction | 304 stainless steel |
| Controls | Zero, Over, Under, Unit. |
| Digital I/O | Two remote switch inputs |
| Display Size | 0.8" tall |
| Display Type | LED |
| Excitation Voltage | 5 VDC |
| Indicator NTEP CC | 97-038A1 |
| IP Rating | IP69K |
| Item | Checkweigher,15x15",200. |
| Load Cell Excitation | 5 VDC |
| Measurement Canada Appr. | Yes |
| NTEP | Yes |
| Number of Load Cells | Up to eight 350 Ohm |
| Optional Power | Rechargeable battery (n. |
| Part Number | 43200/15 |
| Platform Size | 15" x 15" |
| Power | Standard US power cord,. |
| Power Input | 100 - 240VAC 50/60Hz |
| Readability | 0.05 lb |
| Resolution Range | 200d to 50,000d |
| Serial Interface | Two Bi-directional RS-2. |
| System Linearity | 0.01% full scale |
| Temperature Range | 14? to 140? F (-10? to . |
| Units | lb, kg, oz, g, lb:oz |
| Wiring Style | Hard Wire |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0395847 | 1673.75 | 1 | In Stock | 8 | Doran | 40.0 | 1673.75 @ 1 |
 | Megadepot | 43200/15 | 1737.0 | 1 | In Stock | | Doran | | 1737.0 @ 1 |
 | usmegastore.com | 43200/15 | 1770.0 | 1 | In Stock | | Doran | | 1770.0 @ 1 |
 | scalesplus.com | 43200/15 | 1930.0 | 1 | In Stock | | Doran | | 1930.0 @ 1 |
