Dorian Tool CCGT-21.52-UEXR-DPC35RT

B00G2NIJW0

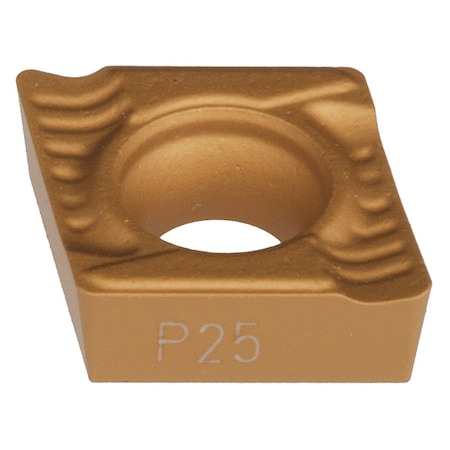

Dorian Tool HP-High Performance 7 Degrees ANSI Tungsten Carbide Precision Positive Ground Turning Insert, DPC35RT, CVD Multi Layer Coating, CCGT Style, UEXR Chipbreaker, CCGT-21.52-UEXR, 3/32" Thickness, 0.031" Nose Radius (Pack of 10)

Dorian Tool HP-High Performance 7 Degrees ANSI Tungsten Carbide Precision Positive Ground Turning Insert, DPC35RT, CVD Multi Layer Coating, CCGT Style, UEXR Chipbreaker, CCGT-21.52-UEXR, 3/32" Thickness, 0.031" Nose Radius (Pack of 10)zoom

Attributes

Key Value
ANSI CodeCCGT-21.52-UEXR
Chip-BreakerYes
Chip-Breaker CodeUEX
Chip-Breaker StyleOn One Side
Clearance Angle7 Degrees
Coating ProcessCVD
Coolant FedCoolant Through
Corner Radius1/32 in
Country of Origin (subj.Austria
Cutting ApplicationCasting, Forging, Inter.
Cutting DirectionRight Hand
Cutting EdgeHoned
Cutting Edge Length6.00 mm
Depth of Cut0.0120 in to 0.1560 in
FeaturesBest for Cutting Carbon.
Finish - MachiningAl2O3+TiCN+Al2O3+TiCN
General ShapeDiamond
Hole Type40 Degrees to 60 Degre.
Included Angle80 Degrees
Inscribed Circle1/4 in
Insert Holding Type40 Degrees to 60 Degre.
Insert ShapeDiamond
Insert StyleCCGT
ISO NumberCCGT-060208-UEXR
ItemDiamond Turning Insert
Manufacturer GradeDPC35RT
Material - MachiningCarbide
Material Grade - Machin.C5
Measurement SystemFractional Inch
Number of Coolant Holes2
Number of Cutting Edges1
Primary Material Applic.Steel
Primary Material Applic.P40
RakePositive
Secondary Material Appl.Stainless Steel
Secondary Material Appl.M
ShapeRhombic
StandardsDIN 6499
Thickness3/32 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG402445919.051011Dorian0.0319.0 @ 10
AmazonB00G2NIJW0123.84110Dorian Tool International123.84 @ 10
