Dormer A94127/64

B0051QGNN6

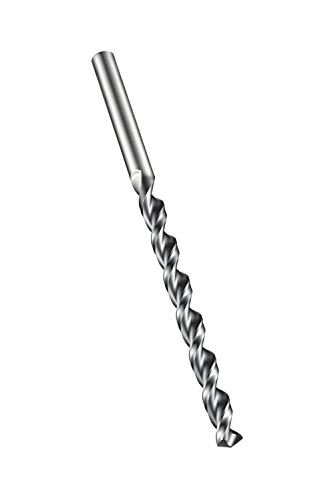

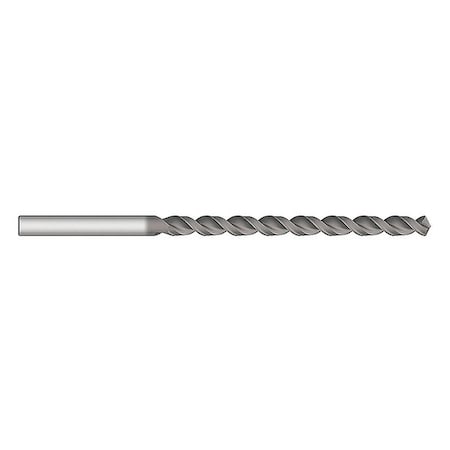

Dormer A941 Cobalt Steel Spectrum Long Length Drill Bit, AlCrN Coating, Round Shank, 130 Degree Special Point, 27/64"

Dormer A941 Cobalt Steel Spectrum Long Length Drill Bit, AlCrN Coating, Round Shank, 130 Degree Special Point, 27/64"zoom

Attributes

Key Value
ApplicationFor Metalworking
Basic StandardDIN/ANSI
CoatingALCRONA TOP
Coating processPVD
Coating property (CTP)1
Connection (shank) desc.Cylindrical shank
Connection diameter - m.10.72
Coolant ThroughExternal Cooling Supply
Country of Origin (subj.France
Cutting diameter - frac.27/64
Cutting diameter - inch.0.4219
Cutting diameter - mill.10.72
Cutting diameter tolera.h8
Decimal Equivalent0.4219
Depth x Dia. Ratio10xD
Depth:Dia. Ratio10xD
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishAlCrN
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle130 Degrees
Drill Bit Size27/64 in
Drill LengthLong
Drill StyleLong
EDP number636046
Flute Length117.00 mm
Flute TypeDIN/ANSI
GradeHeavy Duty
Hand (Cutting direction)Right
ItemExtra Long Drill Bit
Length chip flute - mil.117
List NumberA941
MaterialHSS-E
Material applicationK - Cast iron, M - Stai.
MID number5972460
Number of Flutes2
Number of Pieces1
Ordering code ANSIA94127/64
Overall Length184.00 mm
Overall length - millim.184
Point Angle (SIG)130
Point TypeNon-Conventional Point
Shank ShapeStraight
Sizes Included27/64
Spiral formQuick Spiral
StandardsNot Rated
Usable length (ULDR)10

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG954544492.971In Stock2Dormer0.2392.97 @ 1
Grainger38FZ42104.31In Stock10DORMER104.3 @ 1
thumbzoomMRO Supply6073957114.651In StockDormer Pramet114.65 @ 1
