mpn:
brand:
manufacturer:
MPN:
Weight:
0.59965735264
Weight:
0.59965735264 LB
Preferred Price:
387.43
Price:
387.43
Min Simple Price:
218.89
Absolute Min Price:
310.82
Min Price:
310.82
Dimensions:
[4.0, 1.0, 1.0]
qty:
21
simpleSku:
jc4MDE:::S803HA18.0
sku:
jc4MDE::3K:S803HA18.0@y0
condition:
11
seller:
MRO Supply
amzMan:
dormer pramet
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Basic Standard | DIN 6527 K |
| Coating property (CTP) | 1 |
| Connection diameter - millimeter (DCON MS), Cutting diameter - millimeter (DC), Depth of cut maximum - millimeter (APMX), Length of Cut (In.), Milling Dia., Shank Dia. (In.) | 18 |
| Connection diameter tolerance machine side (TCDCONMS) | h6 |
| Country of Origin (subject to change) | Italy |
| Cutting Direction | Right |
| Dimension Type | Metric |
| EDP number | 641279 |
| End Mill Material, Material | HM |
| End Mill Style | Slot Drill |
| Finish | ALCRONA |
| Flute count (NOF), Number of Flutes, Peripheral effective cutting edge count (ZEFP) | 3 |
| Flute helix angle (FHA) | 28 |

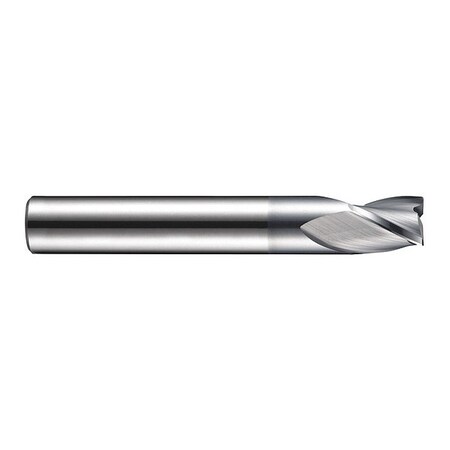

| Item | Mill,Extra Short,Finishing End,3 Fl,18mm |
| Material application | K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel |
| MID number | 5983363 |
| Ordering code ANSI | S803HA18.0 |
| Overall Length (In.) | 84 |
| Radial rake angle (GAMF) | 9 |
| Shank Shape | Extra short |
