Dwyer 616KD-LR-B41-BD1

B077NW8XKJ

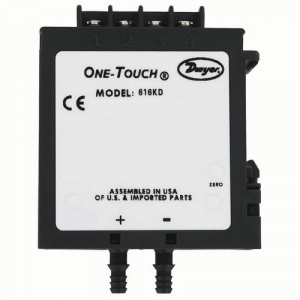

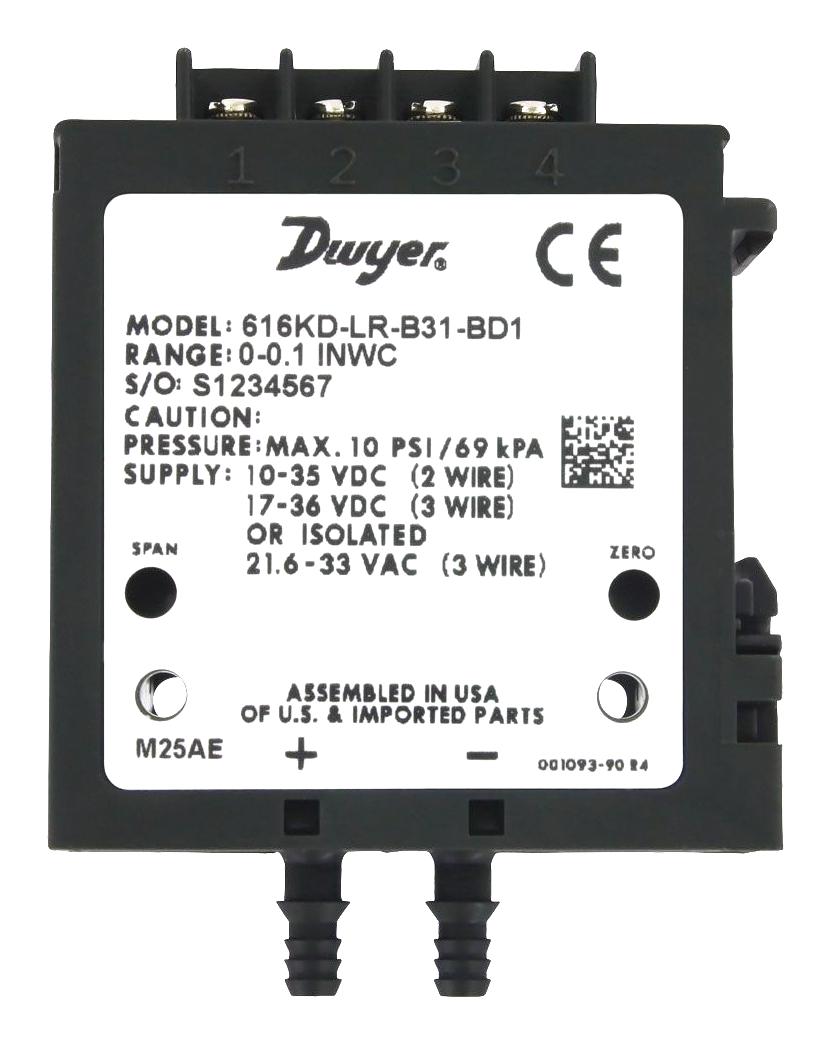

Dwyer? 616KD-LR-B41-BD1, DP Transmitter, Low Range - ?0.1" wc with 1.0% Acc, Barb Connection, 4-20 mA & 0-10V Output

Dwyer? 616KD-LR-B41-BD1, DP Transmitter, Low Range - ?0.1" wc with 1.0% Acc, Barb Connection, 4-20 mA & 0-10V Outputzoom

Attributes

Key Value
Accuracy?1% FS for ?0.1" (25 Pa.
Agency ApprovalCE
ApprovalsCE
Current Consumption40 mA max
DisplayNo
Electrical ConnectionScrew Terminal
Electrical ConnectionsScrew-type terminal blo.
Enclosure RatingNEMA 1 (IP20)
Family SeriesDwyer Instruments HVAC .
Gross Weight0 lbs
IP RatingIP20
Item Number616KD-LR-B41-BD1
Loop ResistanceCurrent Output: 0 to 12.
ManufacturerDwyer Instruments
Manufacturer Part Number616KD-LR-B41-BD1
Max Pressure1 psi
Mounting OrientationVertical with pressure .
Net Weight0.1125 lbs
Output0-10 VDC, 4-20 mA
Output Signal4 to 20 mA (2-wire), 0 .
Power Requirements10 to 35 VDC (2 wire), .
Pressure Limits1 psi max., operation; .
Pressure Range0-0.1 in WC
Process ConnectionBarbed Fitting
Process ConnectionsBarbed, dual size to fi.
Product Series616KD-LR
Response Time2.5 Hz sample rate
Sensor StyleDifferential Transmitter
ServiceAir and non-combustible.
Stability?1% / year FSO
Supply Voltage21.6-33 VAC
Temperature Limits0 to 140?F (-17.8 to 60.
Temperature Range0-140 ?F
Weight1.8 oz (51 g).
Wetted MaterialsConsult factory
Zero and Span Adjustmen.Push button

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com4124871103.51In StockDwyer103.5 @ 1
thumbzoomGalco616KD-LR-B41-BD1-DWYR106.791In StockDwyer Instruments0.1125106.79 @ 1
thumbzoomNewark82AK9597119.61In StockDWYER119.6 @ 1
thumbzoomMegadepot616KD-LR-B41-BD1122.81In StockDwyer0.1125122.8 @ 1
thumbzoomblackhawksupply.com616KD-LR-B41-BD1127.251In StockDwyer127.25 @ 1
thumbzoomusmegastore.com616KD-LR-B41-BD1127.91In StockDwyer0.1125127.9 @ 1
alliedcontrols.com616KD-LR-B41-BD1140.01In StockDwyer140.0 @ 1
