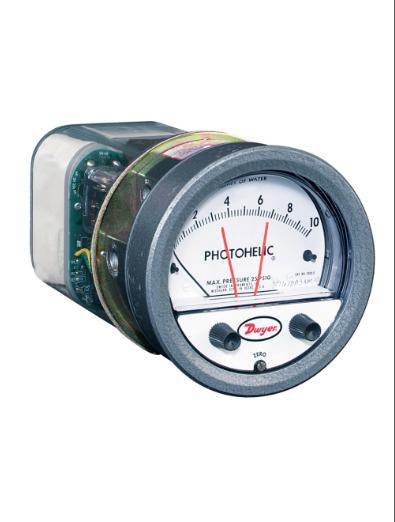

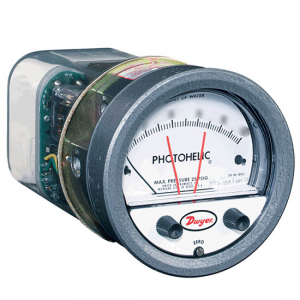

Dwyer A3002AV

B000LE9J2A

Pressure Gauge, 0 to 2 In H2O

Pressure Gauge, 0 to 2 In H2Ozoom

Attributes

Key Value
(Hidden) Series x Accur.+/-2.00% x A3000 Photoh.
Accuracy?2% of FS at 70?F (21.1.
Accuracy Details+/-2% of FS at 70 Degre.
Adjustable Set PointsYes
Agency ApprovalsCE, CSA, UL
Air Velocity Range1,000 to 5,600 fpm
ApplicationFume Exhaust Systems
ApprovalsCE, CSA and UL
Basic Gauge Case Materi.Metal
Blowout Safety BackNo
Body MaterialDie Cast Aluminum
Bolt Circle Diameter5.125 in
Brand and SeriesDWYER A3000 Photohelic
Case Depth2.5 in
Case Diameter5 in
Case ShapeRound
Compatible Process MediaAir, Non-Combustible an.
Connection LocationSingle-Side
Connections1/8" female NPT
Contact Rating10A @ 120/240VAC, 10A @.
Country of Origin (subj.United States
Dial ColorWhite
Dial TypeAnalog
Differential Gauge Conn.1/8 in
Differential Gauge Conn.FNPT
Differential Pressure G.Differential Pressure G.
Differential Pressure R.0 to 2 in wc
Differential Pressure R.in wc
Differential Pressure R.0 to 2
Dimensions5 x 5 x 7.81
Dual ScaleYes
Electrical ConnectionsScrew terminals. Use 16.
Electrical Rating10A @ 28 VDC, 10A @ 120.
English0 - 2 / 1000 - 5600 Ve.
Family SeriesDwyer Instruments Misce.
Flange Diameter5.5 in
For Panel Cut-Out Size4.812 in
Gauge Accuracy+/-2.00%
Gauge Case MaterialPlastic
Gauge Connection Locati.Side
Gauge Nominal Dial Size3 3/4 in
Gauge Operating Temp. R.20 Degrees to 120 Degr.
Gauge Primary Range Sma.0.05
Gross Weight0 lbs
Hazardous Location Rati.Not Rated
HousingPlastic
Housing MaterialDie Cast Aluminum
IncludesInstructions
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
IP/NEMA RatingNot Rated
ItemDifferential Pressure G.
Item NumberA3002AV
Lens MaterialPolycarbonate
ManufacturerDwyer Instruments
Manufacturer Part NumberA3002AV
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Mounting OrientationDiaphragm in vertical p.
Mounting PositionDiaphram Vertical
Net Weight0 lbs
Nominal Dial Size4 in
Non-SparkingNo
Number of Switches2
Panel-MountableYes
Pointer ColorBlack
Power Requirement110 to 120V AC @ 50/60 .
Power Requirements120 VAC, 50/60 Hz
Pressure Gauge TypeDifferential Pressure G.
Pressure Limits-20" Hg. to 25 psig (-0.
Pressure Range0 to 2 in wc
Process Connection1/8 in NPT Female
Process Connection Gend.Female
Process Connection Loca.Side
Process Connection Size1/8 in
Process Connection TypeNPT
Process Connections1/8" female NPT
Process Temperature Ran.20 Degrees to 120 Degr.
Range0-2" w.c. & 1000-5600 F.
Rated Total Pressure-20 in Hg to 25 psi
Relay Type(2) DPDT
Removable BezelYes
Repeatability+/-1%, ?1% of FS
Scale TypePressure and Air Veloci.
Sensor TypeDiaphragm
SeriesA3000 Series, Photohelic
ServiceAir and non-combustible.
Set Point AdjustmentAdjustable knobs on face
StandardsCE/UL/CSA
Switch Contact TypeDPDT
Switch Electrical Requi.10A @ 28V DC; 10A @ 120.
Switch TypeEach setpoint has 2 For.
Temperature Limits20 to 120?F. (-6.67 to .
Velocity Range1000 to 5600 fpm
Weight4 (lb), 4 lb (1.81 kg)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1757332460.591In StockDwyer Instruments4.65460.59 @ 1
thumbzoomRadwellA3002AV540.01In StockDWYER540.0 @ 1
thumbzoomcappusa.com3060326578.71In StockDwyer578.7 @ 1
TranscatA3002AV582.01In StockDWYER582.0 @ 1
thumbzoomZoroG0835134582.01In Stock26Dwyer Instruments4.65582.0 @ 1
us.rs-online.com70334254588.311In StockDwyer Instruments588.31 @ 1
thumbzoomMegadepotA3002AV597.01In StockDwyer4.0597.0 @ 1
thumbzoomusmegastore.comA3002AV597.01In StockDwyer4.0597.0 @ 1
thumbzoomheavydutydepot.comA3002AV597.01In StockDwyer Instruments597.0 @ 1
thumbzoomGalcoA3002AV-DWYR597.071In StockDwyer Instruments597.07 @ 1
thumbzoomSolutions DirectA3002AV634.931In StockDwyer Instruments4.0634.93 @ 1
thumbzoomNewark82AK6040668.71In StockDWYER668.7 @ 1
thumbzoommidwestapplianceparts.comA3002AV-DW-P671.051In StockDwyer671.05 @ 1
thumbzoomindustrialstores.comA3002AV700.221In Stock10Dwyer700.22 @ 1
thumbzoomblackhawksupply.comA3002AV711.471In StockDwyer711.47 @ 1
alliedcontrols.comA3002AV765.01In StockDwyer765.0 @ 1
ptacsolutions.comA3002AV841.241In StockDwyer Instruments841.24 @ 1
thumbzoomRaptor SuppliesAD8TUZ934.04873251In StockDWYER INSTRUMENTS934.0487325 @ 1
