Dwyer DM-1104

B009P8VDTK

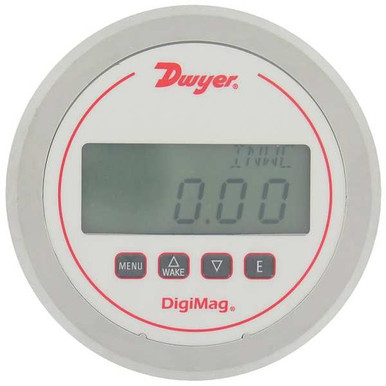

DwyerDM-1104 DigiMag Digital Differential Pressure and Flow Gage, Range 0-1" W.C.

DwyerDM-1104 DigiMag Digital Differential Pressure and Flow Gage, Range 0-1" W.C.zoom

Attributes

Key Value
Accuracy?1% FS including linear.
Agency ApprovalsCE
ApprovalsCE
Basic Gauge Case Materi.Plastic
Basic Gauge Wetted PartsPlastic
Battery Service LifeBattery life depending .
Bolt Circle Diameter5.531 in
BrandDwyer
Case ColorLight Gray
Case Depth2.33 in
Case Diameter5 in
Case MaterialPlastic
Case Size5 "
Case StyleRound
Compensated Temperature.32 to 122?F (0 to 50?C)
Connection1/8 ID Tubing
Current Consumption5 mA maximum
Current Stock3
Differential Gauge Conn.1/8 in
Differential Gauge Conn.Smooth Barb
Differential Pressure R.0 to 1
Digit Height0.6 in
Display4-digit LCD (Digits: 0..
Display UpdateSelectable for 1 second.
Electrical ConnectionsRemovable terminal bloc.
Electrical EntryCable gland for 0.114 t.
Enclosure RatingNEMA 4X (IP66)
Family SeriesDwyer Instruments Panel.
FeaturesDifferential Measurement
Flange Diameter5.125 in
For Panel Cut-Out Size4.562 in
Gauge Connection Locati.Back
Gauge Nominal Dial Size5 in
Gross Weight0 lbs
Housing MaterialsGlass filled plastic
Includes9V Battery and Instruct.
International ShippingNo
ItemDigital Differential Pr.
Item NumberDM-1104
Lead TimeExpected to ship in 1-2.
Long Term Stability?1% FS per year
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-1104
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
MpnDM-1104
Net Weight1.18 lbs
Nominal Dial Size5 in
Number of Display Digits4
Power Requirements9V battery, included, u.
Pressure LimitsNormal and bi-direction.
Process Connection Size1/8 in
Process Connections1/8" (3 mm) ID tubing
Product SeriesDM-1000
ResolutionDependent on Display Un.
Selectable Engineering .in w.c., psi, kPa, Pa, .
SeriesDigiMag Series
ServiceAir and non-combustible.
Size5" (127 mm) OD front fa.
SKUZO-G2668461
Socket MaterialGlass filled plastic
SubCategoryTest Instruments
Temperature Limits0 to 140?F (-18 to 60?C)
Thermal Effect?0.05% FS/?F typ.; ?0.1.
TypeElectronic
UPC094713837282
Weight1.18 lb (535 g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1758201155.71In StockDwyer Instruments1.61155.7 @ 1
us.rs-online.com70328567195.191In StockDwyer Instruments195.19 @ 1
TranscatDM-1104203.01In StockDWYER203.0 @ 1
thumbzoomcappusa.com3334781203.711In StockDwyer203.71 @ 1
thumbzoomGalcoDM-1104-DWYR214.01In StockDwyer Instruments1.18214.0 @ 1
thumbzoomMegadepotDM-1104218.31In StockDwyer1.18218.3 @ 1
thumbzoomusmegastore.comDM-1104218.31In StockDwyer1.18218.3 @ 1
thumbzoomNewark82AK4394222.551In StockDWYER222.55 @ 1
thumbzoomZoroG2668461224.99115Dwyer1.61224.99 @ 1
thumbzoommidwestapplianceparts.comDM-1104-DW-P234.591In StockDwyer234.59 @ 1
thumbzoomblackhawksupply.comDM-1104236.781In StockDwyer236.78 @ 1
alliedcontrols.comDM-1104253.751In StockDwyer253.75 @ 1
thumbzoomindustrialstores.comDM-1104256.831In Stock10Dwyer256.83 @ 1
thumbzoomsimsupply.comZO-G2668461266.3513Dwyer266.35 @ 1
thumbzoomRaptor SuppliesAE6JLY324.1879291In StockDWYER INSTRUMENTS324.187929 @ 1
