Dwyer DM-1107

B009P8VQ38

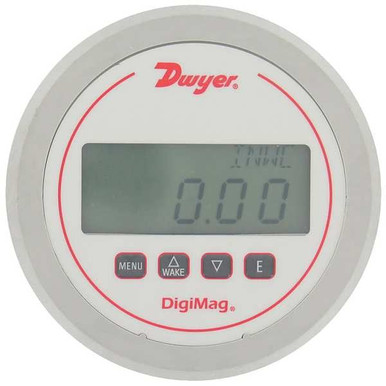

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-5"WC

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-5"WCzoom

Attributes

Key Value
Accuracy?1% FS including linear.
Agency ApprovalsCE
ApprovalsCE
Basic Gauge Case Materi.Plastic
Basic Gauge Wetted PartsPlastic
Battery Service LifeBattery life depending .
Bolt Circle Diameter5.531 in
BrandDwyer
Case ColorLight Gray
Case Depth2.33 in
Case Diameter5 in
Case MaterialPlastic
Case Size5 "
Case StyleRound
Compensated Temperature.32 to 122?F (0 to 50?C)
Connection1/8 ID Tubing
Current Consumption5 mA maximum
Current Stock9
Differential Gauge Conn.1/8 in
Differential Gauge Conn.Smooth Barb
Digit Height0.6 in
Digital Gauge Accuracy+/-1.00% of Reading
Display4-digit LCD (Digits: 0..
Display UpdateSelectable for 1 second.
Electrical ConnectionsRemovable terminal bloc.
Electrical EntryCable gland for 0.114 t.
Enclosure RatingNEMA 4X (IP66)
Family SeriesDwyer Instruments Panel.
Flange Diameter5.125 in
For Panel Cut-Out Size4.562 in
Gauge Connection Locati.Back
Gauge Nominal Dial Size5 in
Gauge Operating Temp. R.0 Degrees to 140 Degre.
Gross Weight0 lbs
Housing MaterialsGlass Filled Plastic
Includes9V Battery and Instruct.
International ShippingNo
ItemDigital Differential Pr.
Item NumberDM-1107
Lead TimeExpected to ship in 1-2.
Long Term Stability?1% FS per year
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-1107
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
MpnDM-1107
Net Weight1.18 lbs
Nominal Dial Size5 in
Number of Display Digits4
Power Requirements9V battery, included, u.
Powered By9V Battery or 9 to 24V .
Pressure LimitsNormal and bi-direction.
Process Connection Size1/8 in
Process Connections1/8" (3 mm) ID tubing
Product SeriesDM-1000
Selectable Engineering .in w.c., psi, kPa, Pa, .
SeriesDigiMag Series
ServiceAir and non-combustible.
Size5" (127 mm) OD front fa.
SKUZO-G2615347
Socket MaterialGlass Filled Plastic
SubCategoryTest Instruments
Temperature Limits0 to 140?F (-18 to 60?C)
Thermal Effect?0.05% FS/?F typ.; ?0.1.
UPC094713837305
Weight1.18 lb (535 g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com70334154115.01In StockDwyer Instruments115.0 @ 1
thumbzoomsustainablesupply.comC1758203150.631In StockDwyer Instruments1.55150.63 @ 1
thumbzoomcappusa.com3124790153.011In StockDwyer153.01 @ 1
thumbzoomRadwellDM-1107195.01In StockDWYER195.0 @ 1
thumbzoomindustrialzone.comDM-1107209.01In StockDwyer1.0209.0 @ 1
thumbzoomZoroG2615347211.48129Dwyer1.55211.48 @ 1
thumbzoomGalcoDM-1107-DWYR214.01In StockDwyer Instruments1.18214.0 @ 1
thumbzoomMegadepotDM-1107218.31In StockDwyer1.18218.3 @ 1
thumbzoomusmegastore.comDM-1107218.31In StockDwyer1.18218.3 @ 1
thumbzoomNewark82AK4396222.551In StockDWYER222.55 @ 1
thumbzoomblackhawksupply.comDM-1107236.781In StockDwyer236.78 @ 1
thumbzoomsimsupply.comZO-G2615347250.9719Dwyer250.97 @ 1
alliedcontrols.comDM-1107253.751In StockDwyer253.75 @ 1
thumbzoomRaptor SuppliesAE6JMA335.14913251In StockDWYER INSTRUMENTS335.1491325 @ 1
