Dwyer DM-1110

B008FM8I36

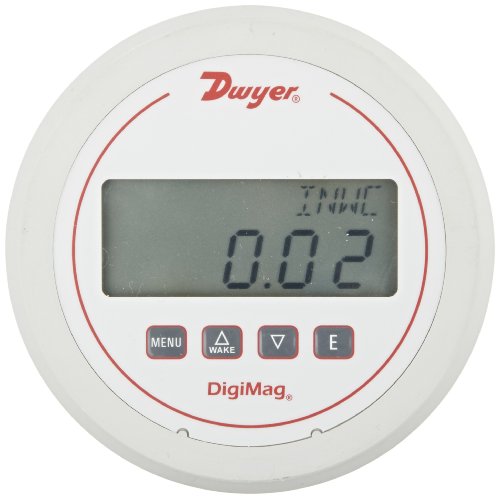

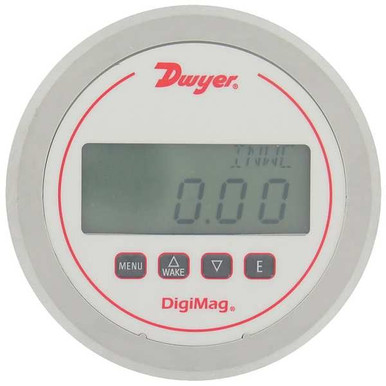

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-25"WC

Dwyer DigiMag Series DM-1000 Differential Digital Pressure Gauge, Range 0-25"WCzoom

Attributes

Key Value
Accuracy+/-1.00%, ?1% FS includ.
Accuracy Details+/-1% FS, +/-2% FS for.
Accuracy GradeNot Graded
Agency ApprovalsCE
Ambient Operating Tempe.0 Degrees to 140 Degre.
ApplicationFiltration
ApprovalsCE
Auto-ShutoffNo
Backlit ScreenNo
Bar GraphNo
Battery Run Time150 hr, 9 mo
Battery Service LifeBattery life depending .
Battery Type9V Battery
Blowout Safety BackNo
Bolt Circle Diameter5.531 in
BrandDwyer
Case ColourLight Gray
Case Depth2.33 in
Case Diameter5 in
Case MaterialPlastic
Case ShapeRound
Case Size5 "
Case StyleRound
Compatible Process MediaAir, Compatible Gases
Compensated Temperature.32 to 122?F (0 to 50?C)
Connection1/8 ID Tubing
Current Consumption5 mA maximum, 5 mA
Current Stock3
Data Update Frequency1 sec, 10 min
Digit Height0.6 in
Display4-digit LCD (Digits: 0..
Display Screen TypeLCD
Display Unitsin Hg, in wc, kPa, mBar.
Display UpdateSelectable for 1 second.
Electrical ConnectionsRemovable terminal bloc.
Electrical EntryCable gland for 0.114 t.
Enclosure RatingNEMA 4X (IP66)
Family SeriesDwyer Instruments Panel.
Flange Diameter5.125 in
For Panel Cut-Out Size4.562 in
Gauge Case MaterialGlass-Filled Plastic
Gross Weight0 lbs
Hazardous Location Rati.Not Rated
Housing MaterialGlass filled plastic
Housing MaterialsGlass filled plastic
Includes BatteriesYes
Includes Mounting Hardw.Yes
International ShippingNo
IP/NEMA RatingNEMA 4X
ItemDigital Differential Pr.
Item NumberDM-1110
LanguagesEnglish
Lead TimeExpected to ship in 1-2.
Line Power Voltage24 V DC
Long Term Stability?1% FS per year
Low Battery IndicatorNo
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-1110
Manufacturer Warranty L.1 yr
Mounting Hardware Inclu.Flange
Mounting OrientationUpright Only
MpnDM-1110
Net Weight1.18 lbs
Nominal Dial Size5 in
Non-SparkingNo
Number of Digits4
Number of Display LinesAdjustable
Over-Pressure Limit100% Full Scale
Panel Mount Characteris.(1) 5 17/32 Dia Holes o.
Panel-MountableYes
Peak HoldYes
Power Requirements9V battery, included, u.
Power Source9V DC Battery: 9 to 24V.
Pressure Gauge TypeDigital Differential Pr.
Pressure LimitsNormal and bi-direction.
Primary Display Range0 to 25 in wc
Process Connection Loca.Back
Process Connection Size1/8 in
Process Connection TypeTubing
Process Connections1/8" (3 mm) ID tubing
Product SeriesDM-1000
Selectable Engineering .in w.c., psi, kPa, Pa, .
SeriesDigiMag DM-1000, DigiMa.
ServiceAir and non-combustible.
Size5" (127 mm) OD front fa.
SKUZO-G2474044
StandardsCE Certified
SubCategoryTest Instruments
Temperature Limits0 to 140?F (-18 to 60?C)
Thermal Effect?0.05% FS/?F typ.; ?0.1.
Weight1.18 lb (535 g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com70334157115.01In StockDwyer Instruments115.0 @ 1
thumbzoomcappusa.com3008302153.011In StockDwyer153.01 @ 1
thumbzoomsustainablesupply.comC1758206192.281In StockDwyer Instruments1.6192.28 @ 1
TranscatDM-1110203.01In StockDWYER203.0 @ 1
thumbzoomindustrialzone.comDM-1110209.01In StockDwyer1.0209.0 @ 1
thumbzoomGalcoDM-1110-DWYR214.01In StockDwyer Instruments1.18214.0 @ 1
thumbzoomMegadepotDM-1110218.31In StockDwyer1.18218.3 @ 1
thumbzoomusmegastore.comDM-1110218.31In StockDwyer1.18218.3 @ 1
thumbzoomNewark82AK4399222.551In StockDWYER222.55 @ 1
grainger.caWWG5TCP8225.166795381In StockDWYER INSTRUMENTS1.6225.16679538 @ 1
thumbzoomZoroG2474044227.22122Dwyer Instruments1.6227.22 @ 1
thumbzoomblackhawksupply.comDM-1110236.781In StockDwyer236.78 @ 1
alliedcontrols.comDM-1110253.751In StockDwyer253.75 @ 1
thumbzoomsimsupply.comZO-G2474044261.6213Dwyer261.62 @ 1
thumbzoomRaptor SuppliesAE6JMD321.6627181In StockDWYER INSTRUMENTS321.662718 @ 1
