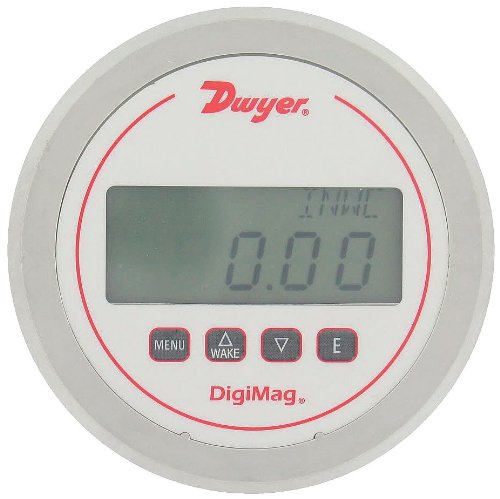

Dwyer DM-1203

B007ICGP1G

Digital Differential, Flow Gauge, 0.5 InWC

Digital Differential, Flow Gauge, 0.5 InWCzoom

Attributes

Key Value
Accuracy?1% FS including linear.
Agency ApprovalsCE
Agency ComplianceCE
ApprovalsCE
Basic Gauge Case Materi.Plastic
Basic Gauge Wetted PartsPlastic
Battery Service LifeBattery life depending .
Bolt Circle Diameter5.531 in
Case ColorLight Gray
Case Depth2.33 in
Case Diameter5 in
Compensated Temperature.32 to 122?F (0 to 50?C)
Connection1/8 "
Current Consumption5 mA maximum
Differential Gauge Conn.1/8 in
Digit Height0.6 in
Digital Gauge Accuracy+/-2.00% of Reading
Display4-digit LCD (Digits: 0..
Display UpdateSelectable for 1 second.
Electrical ConnectionsRemovable terminal bloc.
Electrical EntryCable gland for 0.114 t.
Enclosure RatingNEMA 4X (IP66)
Family SeriesDwyer Instruments Panel.
FeaturesDifferential and Air Ve.
Flange Diameter5.125 in
For Panel Cut-Out Size4.562 in
Gauge Nominal Dial Size5 in
Gross Weight0 lbs
Housing MaterialsGlass filled plastic
Includes9V Battery and Instruct.
ItemDigital Differential Pr.
Item NumberDM-1203
Long Term Stability?1% FS per year
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-1203
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Maximum Value0
Minimum Value0
Net Weight1.18 lbs
Nominal Dial Size5 in
Number of Display Digits4
Power Requirements9V battery, included, u.
Powered By9V Battery or 9 to 24V .
Pressure LimitsNormal and bi-direction.
Process Connection Size1/8 in
Process Connections1/8" (3 mm) ID tubing
Product SeriesDM-1000
Range0-0.5 WC
ResolutionDependent on Display Un.
RoHSNo
Selectable Engineering .in w.c., psi, kPa, Pa, .
ServiceAir and non-combustible.
Size5" (127 mm) OD front fa.
Temperature Limits0 to 140?F (-18 to 60?C)
Thermal Effect?0.05% FS/?F typ.; ?0.1.
Vacuum MeasurementNo
Weight1.18 lb (535 g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger5TCR8219.01In Stock15DWYER INSTRUMENTS219.0 @ 1
thumbzoomZoroG5877471230.01In Stock26Dwyer2.0230.0 @ 1
thumbzoomsustainablesupply.comC1702818232.911In StockDwyer Instruments2.0232.91 @ 1
thumbzoomGalcoDM-1203-DWYR247.391In StockDwyer Instruments1.18247.39 @ 1
thumbzoomMegadepotDM-1203254.01In StockDwyer1.18254.0 @ 1
thumbzoomblackhawksupply.comDM-1203257.751In StockDwyer257.75 @ 1
thumbzoomindustrialzone.comDM-1203262.01In StockDwyer1.0262.0 @ 1
us.rs-online.com72201768267.011In StockDwyer Instruments267.01 @ 1
TranscatDM-1203269.01In StockDWYER269.0 @ 1
thumbzoomusmegastore.comDM-1203272.31In StockDwyer1.18272.3 @ 1
thumbzoomNewark82AK4409279.751In StockDWYER279.75 @ 1
alliedcontrols.comDM-1203318.751In StockDwyer318.75 @ 1
thumbzoomRaptor SuppliesAE6JMP400.5029341In StockDWYER INSTRUMENTS400.502934 @ 1
