Dwyer TE-DFN-D0644-00

B007ICWACY

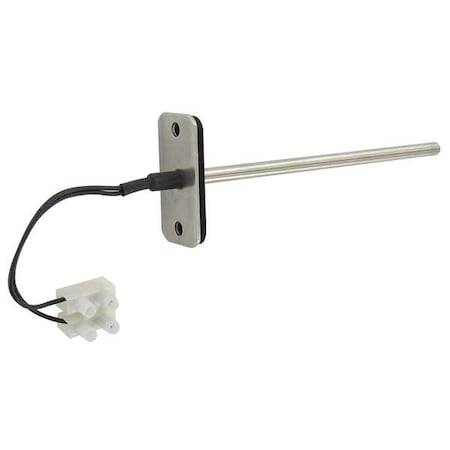

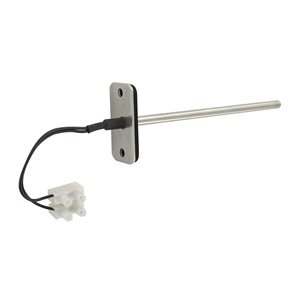

Duct Temp Probe, RTD, Pt 100 Ohm, 6 in L

Duct Temp Probe, RTD, Pt 100 Ohm, 6 in Lzoom

Attributes

Key Value
Accuracy+/-0.28 Degrees F/ +/-0.
Cable Length4 in
Connector TypeTerminal Block
Country of Origin (subj.China
For AirYes
For ApplicationAHU Monitoring, Buildin.
For GasesYes
For Liquids and GelsYes
For SolidsNo
For SurfacesNo
Includes Signal Convert.No
Includes ThermowellNo
ItemDuct Temperature Probe
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Maximum Temperature ?C150 Degrees C
Maximum Temperature ?F302 Degrees F
Maximum Temperature C150 Degrees C
Maximum Temperature F302 Degrees F
Minimum Temperature ?C-40 Degrees C
Minimum Temperature ?F-40 Degrees F
Minimum Temperature C-40 Degrees C
Minimum Temperature F-40 Degrees F
Number of Wires2-Wire
Opening/Diameter0.235 in
Primary Measuring Eleme.RTD
Probe BendStraight
Probe Connection TypeBare Wire
Probe ConnectorBare Wire
Probe Contact Material304 Stainless Steel
Probe Dia.1/4 in
Probe Diameter0.25 in
Probe Length6 in
Probe Material304 Stainless Steel
Probe Sheath Material304 Stainless Steel
Probe Size1/4 in x 6 in
Probe Temp. Measuring E.100 Ohm RTD
Probe Wire Length4 in
Process ConnectionFlange, Probe Only
Resistance100 ohm
RTD Type2-Wire 100 ohm
Sensor TypeRTD
Temp. Range (C)-40 Degrees to 150 Deg.
Temp. Range (F)-40 Degrees to 302 Deg.
Temperature Measuring E.RTD, Pt 100 Ohm
Temperature Range-40 Degrees to 302 Deg.
UseAir and Gases
Wire Length4"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG564822119.01In Stock26Dwyer Instruments0.419.0 @ 1
thumbzoomsustainablesupply.comC173003820.631In StockDwyer Instruments0.420.63 @ 1
thumbzoomRaptor SuppliesAE8EWJ34.2802981In StockDWYER INSTRUMENTS34.280298 @ 1
