E-Switch R5BBLKREDEF1

B07BZQQB5X

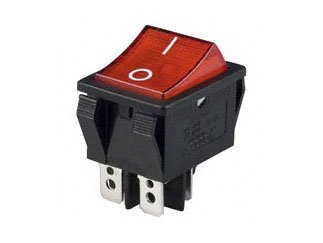

E-Switch R5BBLKREDEF1 R5 Series 20 A DPST On-Off Quick Connect Panel Mount Rocker Switch - 2 Item(s)

E-Switch R5BBLKREDEF1 R5 Series 20 A DPST On-Off Quick Connect Panel Mount Rocker Switch - 2 Item(s)zoom

Attributes

Key Value
AC contacts rating @R16A / 250V AC
Actuator MarkingNeon, Red
Actuator TypeRed
Backlight colourRed
Body colourblack
Body dimensions32.1x25.2x19.2mm
Button height8.9mm
Button markingblank
Button shaperectangular
CategorySwitches
CircuitOn-Off
Color - Actuator/CapNo Marking
Contacts configurationDPST-NO
Current Rating (Amps)Concave (Curved) - Illu.
Electrical Life125 V
Electrical life10000 cycles
FeaturesRectangular - 30.00mm x.
Illuminationneon lamp
Illumination Type, Color125 VAC
Illumination Voltage (N.Quick Connect - 0.250" .
Ingress Protection-
Key button colourRed
Leadsconnectors 6,35x0,8mm
ManufacturerE-Switch
Manufacturer seriesR5
Max. contact resistance:20m?
Mechanical durability30000 cycles
Mechanical Life10,000 Cycles
MfrE-Switch
Min. insulation resista.1G?
Mountingon panel
Mounting hole diameter30.7x22.15mm
Mounting TypeDPST
Number of positions2
Operating Temperature30,000 Cycles
Operating temperature-20...55?C
PackageActive
Panel Cutout Dimensions-20?C ~ 55?C
Panel thickness0.75...3mm
Part StatusPanel Mount, Snap-In
SeriesBulk
Stable positions number2
Switch Function20A (AC)
Switching methodOn-Off
Termination Style-
Type of switchROCKER

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark15N91122.31156E-SWITCH2.31 @ 2
thumbzoomDigi-KeyEG1530-ND2.7512E-Switch2.75 @ 2
us.rs-online.com721009352.84452E-Switch2.84 @ 45
Future Electronics11582683.168115E-Switch3.168 @ 2
Hawk ElectronicsR5BBLKREDEF13.56752E-Switch3.56 @ 75
TMER5BBLKREDEF14.891502E-SWITCH4.89 @ 150
