E-Switch TL6100DF300QP

B00MMY4LGG

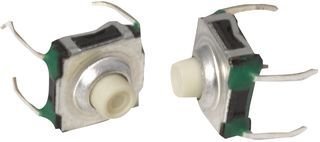

E-Switch TL6100DF300QP Switch Tactile

E-Switch TL6100DF300QP Switch Tactilezoom

Attributes

Key Value
Actuator Height off PCB.10.00mm
Actuator Length, Right .-
Actuator MaterialPolyamide (PA), Nylon
Actuator OrientationTop Actuated
Actuator TypeStandard
Base Product NumberTL6100
Body dimensions7.4x7.4x3.65mm
Button height10mm
Button markingblank
Button shaperound
CategorySwitches
CircuitSPST-NO
Contact platingsilver plated
Contact Rating @ Voltage0.05A @ 12VDC
Contacts configurationSPST-NO
DC contacts rating @R0.05A / 12V DC
Electrical life500000 cycles
FeaturesProcess Sealed
Illuminationnone, Non-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Key stroke0.5mm
Kind of packageTube
Leadsfor soldering
ManufacturerE-Switch
Manufacturer seriesTL6100
Max. contact resistance:100m?
Mechanical Life500,000 Cycles
MfrE-Switch
Min. insulation resista.100m?
MountingTHT
Mounting TypeThrough Hole
Number of positions2
Operating Force300gf, 3N
Operating Temperature-40?C ~ 85?C
Operating temperature-40...85?C
Outline7.20mm x 7.20mm
PackageTube
Product StatusActive
SeriesTL6100
Switch FunctionOff-Mom
Switch Travel0.50mm
Termination StylePC Pin
Type of switchmicroswitch TACT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Hawk ElectronicsTL6100DF300QP0.62850405E-Switch0.628 @ 5040
thumbzoomNewark15N45150.75650405E-SWITCH0.756 @ 5040
Onlinecomponents.comTL6100DF300QP0.851600E-SWITCH0.85 @ 5
TMETL6100DF300QP0.9950405E-SWITCH0.99 @ 5040
Future Electronics40358871.2650405E-Switch1.26 @ 5040
Digi-Key6598741.57215E-Switch1.572 @ 5
AmazonSCB073C1LSKN49.3615E-Switch49.36 @ 5
