Eaton R732358-AN16DN0AB

B0821TDSZD

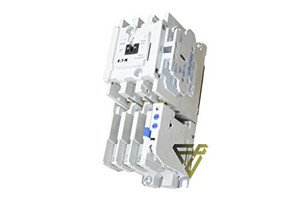

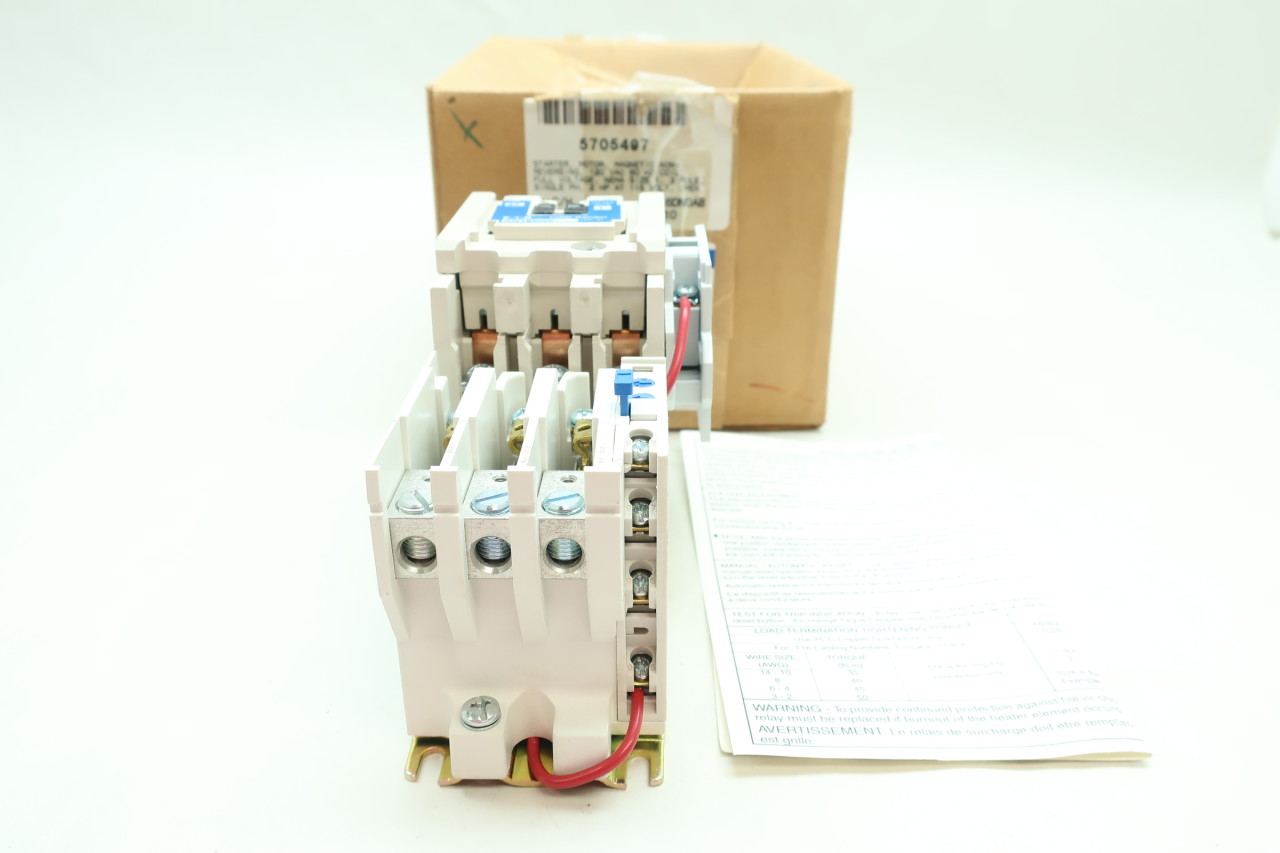

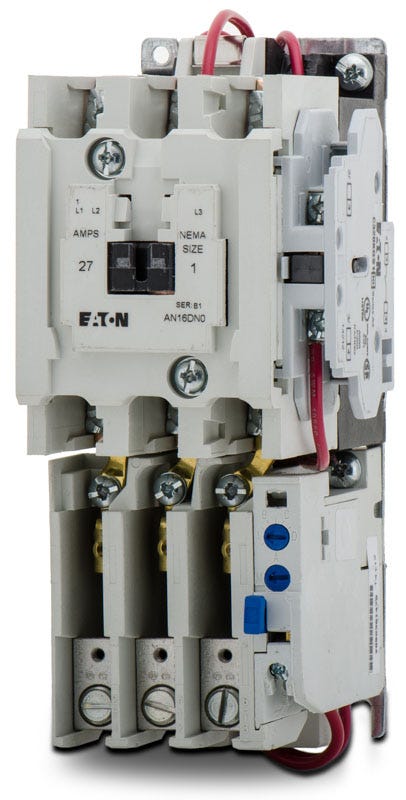

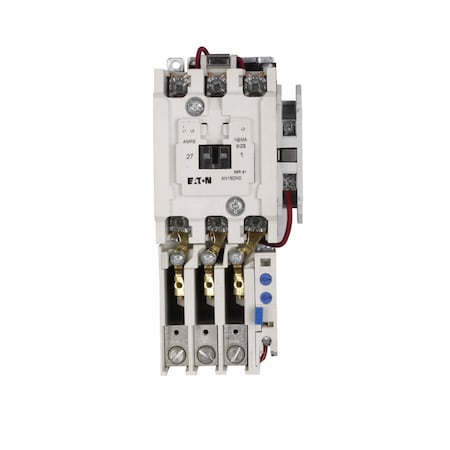

EATON AN16DN0AB 3P 27A AMPS 120V-AC 10HP Size 1 Starter

EATON AN16DN0AB 3P 27A AMPS 120V-AC 10HP Size 1 Starterzoom

Attributes

Key Value
Alternate Mfr Part Numb.AN16DN0AB
Amperage27A
Amperage Rating27 Amp
Amps27
ApplicationStationary Machinery an.
ApprovalsCSA Certified ; UL List.
Auxiliary Contact1 NO
Best Sellers RankSee Top 100 in Industri.
BrandEaton/Cutler-Hammer, Ea.
Brand NameEaton
Carton1
Catalog NumberAN16DN0AB
Category DescriptionFreedom/Nema Style
ClassificationFreedom/Nema Style
Coil Voltage120 VAC, 110 Volt AC at.
Cont Output Amp Rating27 A
Contact Configuration1NO, 1 NO Auxiliary
Contactor TypeMagnetic
Continuous Amps Rating27 A
Control Voltage120
Country of OriginDominican Republic
Country Of OriginDominican Republic
Current Rating30 A, 27 A
Date First AvailableAugust 1, 2009
Degree of ProtectionNo
DescriptionNema Open 3P STR Size 1.
dimensions4.6100 IN X 4.3800 IN X.
Dimensions4.61 Inch Length x 4.38.
EnclosureOpen
Enclosure TypeOpen
Energy Star FlagNo
extra long descriptionETN AN16DN0AB STARTER O.
Family / StyleFreedom
Family SeriesCutler Hammer, Div of E.
FeaturesEaton's Freedom starter.
Frame Type1 Frame (65mm)
Frequency Rating50/60 Hz
Gross Weight4.16 lbs
GTIN00782113971704, 7821139.
Gtin782113971704
Heater SeriesB
Height3.31 Inch
Horsepower Rating10 HP
Horsepower, Max, 1 Phas.2
Horsepower, Max, 1 Phas.3
Horsepower, Max, 3 Phas.7.5
Horsepower, Max, 3 Phas.7.5
Horsepower, Max, 3 Phas.10
Horsepower, Max, 3 Phas.10
Industry StandardNEMA
ItemContactor,120V 3P Nema1.
Item NameFull Voltage Motor Star.
Item NumberAN16DN0AB
Item TypeMotor control starter
Length4.61 in
Long DescriptionNon-Combination Non-Rev.
Made in USANo
ManufacturerCutler Hammer, Div of E.
Manufacturer NameEaton
Manufacturer Part NumberAN16DN0AB
Manufacturers Part Numb.AN16DN0AB
Max HP 120V 1PH2 hp
Max HP 200/208V 3PH7.5 hp
Max HP 230/240V 1PH3 hp
Max HP 230/240V 3PH7.5 hp
Max HP 460/480V 3PH10 HP
Max HP 575/600V 3PH10 HP
Maximum Load Capacity1-Phase: 2 hp at 115 Vo.
Motor FLA RangeHeaters Purchased Separ.
MountingHorizontal, Surface
Mounting TypePanel Mount, Surface, H.
MpnAN16DN0AB
National Stock Number6110-01-374-5710
NEMA Frame Size1
Nema RatingNema 1
NEMA Size1, Nema 1
Net Weight4 lbs
Nominal Coil Voltage120 VAC
Number of Phases1;3
Number of Poles3
Overall Depth167.6 mm
Overall Dimensions45 x 89.4 x 167.6
Overall Length45 mm
Overall Width89.4 mm
Overload SeriesC306
Overload TypeThermal
Package Dimensions9.25 x 6.5 x 5.5 inches.
Package Quantity1
Part NumberAN16DN0AB
Phase3, 1 Phase, 1 or 3
Poles3
Primary TypeDOL Starter
Product SeriesFreedom
Product TypeNon-Combination Non-Rev.
Product with faster shi.true
Relay TypeOverload
RoHS FlagContact manufacturer
SeriesAN16, Freedom Series
Service Limit Current32 A
Shippingundefined (Fixed Shippi.
Short DescriptionNon-Combination Non-Rev.
Size1
Special FeaturesStarter w/C306 bi-metal.
StandardCSA Certified,UL Listed
standardCSA Certified,UL Listed
StandardsCSA ; NEMA ; UL, UL Lis.
Standards MetUL Listed;CSA Certified
Starter TypeNEMA Starter
StyleOpen
TerminationScrew
TypeNon-Reversing, Motor co.
UNSPSC39121521, 39121521 - Mo.
Upc782113971704
UPC782113971704, 782113971.
UPC Code782113971704
Voltage120V
Voltage Rating600 Volt
Volts AC600
Volts AC Control120
Weight4.05 lb, 2.6 Pound
Weight per each4.05
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD658801210.511In StockEATON210.51 @ 1
thumbzoommostelectric.comAN16DN0AB418.0617CUTLER HAMMER418.06 @ 1
simplybreakers.comAN16DN0AB479.991In StockEaton Cutler-Hammer479.99 @ 1
hvacdiscountstore.comCUT--AN16DN0AB536.971In StockCUTLER HAMMER-EATON536.97 @ 1
thumbzoomsuperbreakers.comAN16DN0AB551.6186Eaton\/Cutler-Hammer551.6 @ 1
thumbzoomturtle.comCUH AN16DN0AB594.371In StockEaton594.37 @ 1
Monarch Electric4398596.191In StockEaton596.19 @ 1
thumbzoomVoomi SupplyAN16DN0AB609.991In StockCutler Hammer-Eaton609.99 @ 1
AmazonTPB001VXUW9Y612.721In Stock10Eaton612.72 @ 1
thumbzoomkempstoncontrols.co.ukAN16DN0AB630.7887691In StockEaton US630.788769 @ 1
thumbzoommidwestapplianceparts.comAN16DN0AB-CU-P640.091In StockCutler Hammer640.09 @ 1
thumbzoomhomeessentialsdirect.comAN16DN0AB642.071In StockEaton642.07 @ 1
thumbzoomcappusa.com3548140691.8715Eaton691.87 @ 1
thumbzoomCarlton Bates Company78211397170697.921In StockEATON697.92 @ 1
thumbzoomWalker IndustrialAN16DN0AB700.611In StockEaton Cutler-Hammer700.61 @ 1
thumbzoomZoroG4047957702.991In StockEaton Cutler-Hammer4.4702.99 @ 1
thumbzoomKelly HayesAN16DN0AB713.45146Eaton713.45 @ 1
thumbzoomptacsolutions.comAN16DN0AB721.641In StockCutler Hammer-Eaton721.64 @ 1
Airline HydraulicsEATON AN16DN0AB857.87123Eaton857.87 @ 1
us.rs-online.com70056960871.2519Eaton - Cutler Hammer2.6871.25 @ 1
thumbzoomPlatt.com0009549873.05110Eaton873.05 @ 1
thumbzoomGalcoAN16DN0AB-CHGP885.8712Cutler Hammer, Div of Eaton Corp4.16885.87 @ 1
thumbzoommotorsandcontrol.comAN16DN0AB898.5311Eaton Cutler Hammer898.53 @ 1
thumbzoomElliott ElectricAN16DN0AB988.821In StockEaton4.05988.82 @ 1
thumbzoomNewark45K57541060.291In StockEATON CUTLER HAMMER1060.29 @ 1
thumbzoombscsource.comAN16DN0AB1083.691In StockEaton Cutler-Hammer1083.69 @ 1
thumbzoomcrescentelectric.com532961128.515Eaton1128.5 @ 1
kirbyrisk.com5250531329.751In StockCutler Hammer1329.75 @ 1
thumbzoomNational Supply Network23532171595.721In StockEaton Cutler-Hammer1595.72 @ 1
