Eaton E57G-18SNN5-C2

B07J2XBF92

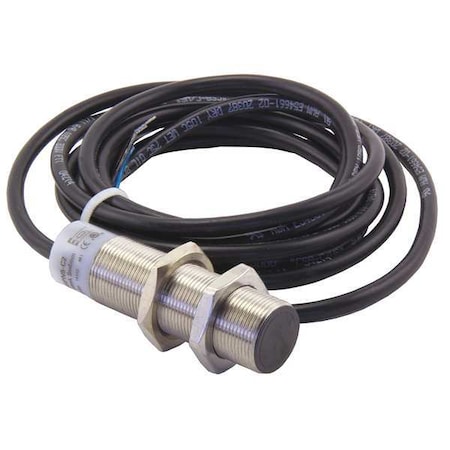

Eaton 1200 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 5.0mm

Eaton 1200 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 5.0mmzoom

Attributes

Key Value
ApprovalsCE;cULus
Basic Proximity Sensor .Metal
Body CompositionMetallic
BrandEaton
Case MaterialStainless Steel
Connection TypeCable Connection
Current Stock3
Depth6 in
Description/Special Fea.Proximity Switch
Diameter18 MilliMeters
Family SeriesCutler Hammer, Div of E.
Gross Weight0.335 lbs
International ShippingNO
IP Rating67
ItemCylindrical Proximity S.
Item NumberE57G-18SNN5-C2
Lead TimeExpected to ship in 1-2.
Length66 mm
Length (Straight Wirewa.66 mm
Length of Cables2 Meters
ManufacturerCutler Hammer, Div of E.
Manufacturer Part NumberE57G-18SNN5-C2
Max Leakage Current0.1 MilliAmps
Max Load Current0.1 Amps
Max. Current Load100mA
Max. Detecting Distance5 mm
MpnE57G-18SNN5-C2
NEMA Rating4X
Net Weight0.34 lbs
Nominal Voltage12 VDC;24 VDC
Number of Wires3
Operating Temp. Range-13 Degrees to 158 Deg.
Operating Voltage Range10~30 VDC
Output ModeNO
Output TypeNO NPN
Part NumberE57G-18SNN5-C2
Power TypeDC
Product Height1.75 in
Product SeriesE57G
Proximity Sensing MethodInductive
Proximity Sensor Diamet.18 mm
Proximity Sensor Electr.2m Cable
Proximity Sensor Operat.1,200 Hz
Proximity Sensor Output.3 Wire NPN
Proximity Sensor Power .10 to 30V DC
Proximity Sensor StyleCylindrical Proximity S.
Range5 MilliMeters
RoHSYes
Sensing TypeEnd
Shielded / UnshieldedShielded
ShieldingShielded
Short Circuit ProtectionYes
SKUZO-G0075848
StandardsCE Compliance, cUL List.
Status IndicatorYes
SubCategoryElectrical
UPC786685904863
Weld Field ImmuneNO
Width5 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com487289258.721In StockEaton58.72 @ 1
thumbzoomZoroG007584864.0511Eaton0.3664.05 @ 1
thumbzoomsimsupply.comZO-G007584875.9113Eaton75.91 @ 1
GalcoE57G-18SNN5-C2104.481In StockCutler Hammer, Div of Eaton Corp0.34104.48 @ 1
thumbzoomPlatt.com1287662109.111In StockEaton109.11 @ 1
thumbzoomNewark45Y9963123.041In StockEATON CUTLER HAMMER123.04 @ 1
thumbzoommotorsandcontrol.comE57G-18SNN5-C2130.931In StockEaton Cutler Hammer130.93 @ 1
thumbzoomturtle.comCUH E57G-18SNN5-C2136.211In StockEaton136.21 @ 1
