Bussmann SD53-150-R

B07345CBH6

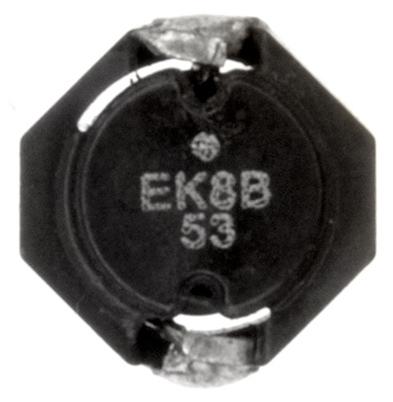

BUSSMANN SD53-150-R SD53 Series 15 uH ?20 % 1.1 A 0.122 ? Shielded Surface Mount Power Inductor - 10 item(s)

BUSSMANN SD53-150-R SD53 Series 15 uH ?20 % 1.1 A 0.122 ? Shielded Surface Mount Power Inductor - 10 item(s)zoom

Attributes

Key Value
Body dimensions5.2x5.2x3mm
CategoryInductors, Coils, Chokes
Current - Saturation (I.1.1A
Current Rating1.1 A
Current Rating (Amps)1.1 A
DC Resistance (DCR)142mOhm Max
Frequency - Self Resona.-
Height0.118 In.
Height - Seated (Max)0.118" (3.00mm)
Inductance15?H, 15 uH, 15 ?H
Inductance Frequency - .100 kHz
Length0.205 in
ManufacturerEATON ELECTRIC
Material - CoreFerrite
MfrEaton - Electronics Div.
MountingSMD
Mounting TypeSurface Mount
Operating current1.1A
Operating Temperature-40?C ~ 125?C
Operating temperature-40...125?C
PackageTape & Reel (TR)
Package / CaseNonstandard
Product StatusActive
Q @ Freq-
Ratings-
Resistance122m?
Saturation current1.1A
SeriesSD53, SD53 Series
ShieldingShielded
Size / Dimension0.205" L x 0.205" W (5..
Supplier Device Package-
Tolerance?20%
TypeDrum Core, Wirewound
Type of inductorwire
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH21261850.573512600Eaton (formerly Cooper Bussmann)0.5735 @ 2600
WaldomEATON SD53-150-R0.8212600Eaton0.82 @ 2600
TMESD53-150-R0.8326002600EATON ELECTRIC0.83 @ 2600
Future Electronics75528051.03226002600Eaton1.032 @ 2600
Digi-Key15554901.2391512600Eaton - Electronics Division1.23915 @ 2600
thumbzoomNewark99M55281.7626002600EATON COILTRONICS1.76 @ 2600
us.rs-online.com700380012.3726002600Eaton Electronics2.37 @ 2600
