Bussmann SD53-1R1-R

B076FCFYK8

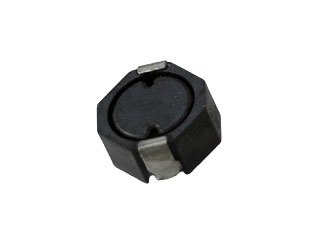

BUSSMANN SD53-1R1-R SD Series 1.1 uH ?20 % Tolerance 3.25 A Shielded SMT Low Profile Power Inductor - 2600 item(s)

BUSSMANN SD53-1R1-R SD Series 1.1 uH ?20 % Tolerance 3.25 A Shielded SMT Low Profile Power Inductor - 2600 item(s)zoom

Attributes

Key Value
Alternate Mfr Part Numb.SD53-1R1-R
Body dimensions5.2x5.2x3mm
CategoryInductors, Coils, Chokes
Current - Saturation (I.4.8A
Current Rating (Amps)3.25 A
DC Resistance (DCR)20mOhm Max
DescriptionFIXED IND 1.1UH 3.25A 2.
Detailed Description1.1 ?H Shielded Drum Co.
Digi-Key Part NumberSD53-1R1-R-ND - Tape & .
Frequency - Self Resona.-
Height - Seated (Max)0.118" (3.00mm)
Inductance1.1?H, 1.1 ?H
Inductance Frequency - .100 kHz
ManufacturerEATON ELECTRONICS, Eato.
Manufacturer Product Nu.SD53-1R1-R
Manufacturer Standard L.10 Weeks
Material - CoreFerrite
MfrEaton - Electronics Div.
MountingSMD
Mounting TypeSurface Mount
Operating current3.25A
Operating Temperature-40?C ~ 125?C
Operating temperature-40...125?C
PackageTape & Reel (TR)
Package / CaseNonstandard
Product StatusActive
Q @ Freq-
Ratings-
Resistance17m?
Saturation current4.8A
SeriesSD53
ShieldingShielded
Size / Dimension0.205" L x 0.205" W (5..
Supplier Device Package-
Tolerance?20%
TypeDrum Core, Wirewound
Type of inductorwire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TMESD53-1R1-R0.826002600EATON ELECTRONICS0.8 @ 2600
WaldomEaton Electronics SD53-1R1-R0.9426007800Eaton Electronics0.94 @ 2600
us.rs-online.com740898741.1926002600Eaton Electronics1.19 @ 2600
thumbzoomDigi-Key17624171.2301826002600Eaton - Electronics Division1.23018 @ 2600
Newark99M55261.3126002600EATON BUSSMANN1.31 @ 2600
