mpn:
brand:
manufacturer:
MPN:
Weight:
3.0
Weight:
3.0 LB
Preferred Price:
148.22
Price:
148.22
Min Simple Price:
81.0
Absolute Min Price:
115.02
Min Price:
115.02
Dimensions:
[17.0, 15.0, 3.0]
qty:
21
simpleSku:
ODM5Nw:::R2-16-36M
sku:
ODM5Nw::P6:R2-16-36M@y0
condition:
11
seller:
Zoro
amzMan:
eaton aeroquip
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Brand | Eaton Aeroquip |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water |
| Compatible With | Petroleum and Water Based Fluids |
| Cover, Hose Cover Material, Hose Tube Material | Synthetic Rubber |
| Current Stock | 40 |
| Dash Size | 16 |
| Fitting Material | Carbon Steel x Carbon Steel |
| Fitting Size | 1 in x 1 in |
| Fitting Type | MNPT x MNPT |
| Hose Color, Hose Colour | Black |
| Hose Configuration | Coupled Assembly |
| Hose Fitting A Material, Hose Fitting B Material, Hose Reinforcement Material | Carbon Steel |
| Hose Fitting A Size, Hose Fitting B Size, Hose Inside Dia. | 1 in |
| Hose Fitting A Type, Hose Fitting B Type | MNPT |
| Hose Inside Dia. (In.) | 1" |
| Hose Length | 36 in |
| Hose Outside Dia. | 1 3/8 in |
| Hose Outside Dia. (In.) | 1.36 |
| Hose Reinforcement Type | Braid |
| International Shipping | No |

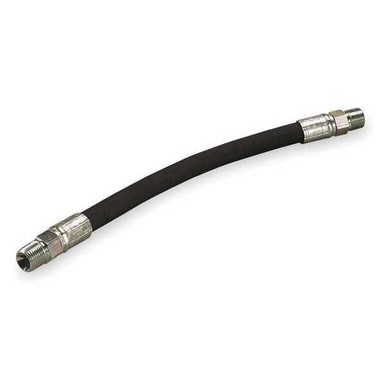

| Item | Hydraulic Hose Assembly |
| Max. Working Pressure @ 70 F | 2,400 psi |
| Min. Bend Radius (In.) | 6.00 |
| Mpn | R2-16-36M |
| Not Recommended Chemicals | 0, Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%) |
| Reinforcement | Braided Carbon Steel |
| Safety Factor | 4:1 |
| Series | EC215 |
| SKU | ZO-G0510623 |
| Standards | SAE J517C 100R2 |
| Temp. Range | -40 Degrees to 212 Degrees F |
| Temp. Range (F) | -40 to 212 |
| Type | High Pressure |
| Weight/Ft. (Lb.) | 0.71 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0510623 | 81.0 | 81.0 | 1 | 60 | Eaton Aeroquip | 3.35 | 81.0 @ Qty: 1+ | |
 | simsupply.com | ZO-G0510623 | 94.06 | 94.06 | 1 | 40 | Eaton Aeroquip | 94.06 @ Qty: 1+ | ||
| grainger.ca | WWG2F697 | 107.2378365 | 107.2378365 | 1 | In Stock | EATON AEROQUIP | 3.35 | 107.2378365 @ Qty: 1+ | ||
 | Raptor Supplies | AB9TTD | 126.014733 | 126.014733 | 1 | In Stock | EATON | 126.014733 @ Qty: 1+ |
