- mpn3412NGLE
- brandname: ebm-papst
- manufacturername: ebm-papst

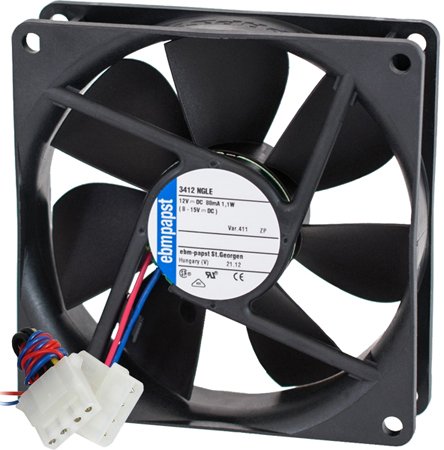

3412NGLE, DC Fan Axial Sintec-Sleeve Bearing 12V 8V to 15V 35.9CFM 23dB (92 X 92 X 25.4mm)
- Brand: EBM Papst
- PartNumber: 3412NGLE
- Model: 3412NGLE
- PackageQuantity: 1
- Binding: Personal Computers
- Manufacturer: ebm-papst
- Label: ebm-papst
Attributes
| Key | Value |
|---|
| Air Flow | 36 CFM, 35.9 CFM (1.01m. |
| Airflow | 35.9 CFM |
| Alternate Part No. | 5912-3412NGLE |
| Approval Agency | CSA, UL, VDE |
| Approvals | CSA, UL, VDE |
| Base Product Number | 3412N |
| Bearing Type | Sintec, Sleeve |
| Brand | ebm-papst |
| Category | Fans, Thermal Management |
| Current Rating (Amps) | - |
| Current Type | DC |
| Description | FAN AXIAL 92X25MM 12VDC. |
| Detailed Description | Fan Tubeaxial 12VDC Squ. |
| Digi-Key Part Number | 381-2846-ND |
| Family Series | ebm-papst, Inc. Fans, D. |
| Fan Speed | 1,950 RPM |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Frame Dimensions - mm | 92 mm x 92 mm x 25 mm |
| Gross Weight | 0 lbs |
| Height | 92 mm |
| Housing Material | Polybutylene Terephthal. |
| Impeller Material | Plastic |
| Ingress Protection | - |
| Item Number | 3412NGLE |
| Length | 92 mm |
| Lifetime @ Temp. | 80000 Hrs @ 40?C |
| Manufacturer | ebm-papst, Inc., ebm-pa. |
| Manufacturer Part No. | 3412NGLE |
| Manufacturer Part Number | 3412NGLE |
| Manufacturer Product Nu. | 3412NGLE |
| Manufacturer Standard L. | 69 Weeks |
| Material - Blade | Polyamide (PA), Nylon, . |
| Material - Frame | Polybutylene Terephthal. |
| Mfr | ebm-papst Inc. |
| Net Weight | 0.2188 lbs |
| Noise | 23 dBA, 23.0dB(A) |
| Noise Level | 23 dB |
| Nominal Depth | 25 mm |
| Nominal Height | 92 mm |
| Nominal Voltage | 12 VDC |
| Nominal Width | 92 mm |
| Operating Temp Range (F) | -4-176 ?F |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Operating Voltage | 12 VDC |
| Package | Bulk |
| Power (Watts) | 1.1 W |
| Power Consumption | 1.1 W |
| Power Rating | 1.1 W |
| Product Category | DC Fans |
| Product Series | DC INPUT SQUARE |
| Product Status | Active |
| RoHS | Yes |
| Rotation | Counter Clockwise |
| RPM | 1950 RPM |
| Series | 3400N |
| Size / Dimension | Square - 92mm L x 92mm H |
| Static Pressure | - |
| Tachometer Output | No |
| Termination | 2 Wire Leads |
| Termination Style | Wire Leads |
| Unit Weight | 99.790 g |
| Voltage - Rated | 12VDC |
| Voltage Range | 8 ~ 15VDC |
| Weight | 0.222 lb (100.7 g) |
| Width | 25.00mm, 25 mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 3412NGLE-EBM | 21.64 | 1 | In Stock | | ebm-papst, Inc. | 0.2188 | 21.64 @ 1 |
| Newark | 59J6805 | 25.52 | 27 | In Stock | | EBM-PAPST | | 25.52 @ 25 |
 | Digi-Key | 6624042 | 26.34 | 1 | In Stock | | ebm-papst Inc. | 0.222 | 26.34 @ 1 |
 | Radwell | 3412NGLE | 32.0 | 2 | In Stock | | EBM PAPST | | 32.0 @ 2 |
| RS Delivers | 760-4735 | 33.492 | 1 | In Stock | | ebm-papst | | 33.492 @ 1 |
| AmazonSC | B00FRC2U36 | 36.89 | 1 | In Stock | | EBM Papst | | 36.89 @ 1 |
 | swatee.com | 3412NGLE | 38.29 | 1 | 4 | | ebm-papst | | 38.29 @ 1 |
| Master Electronics | 3412NGLE | 41.09 | 1 | 51 | | ebm-papst | | 22.6184 @ 2 |
