- mpn125XBRIRBA24DB
- brandname: Edwards Signaling
- manufacturername: Edwards Signaling

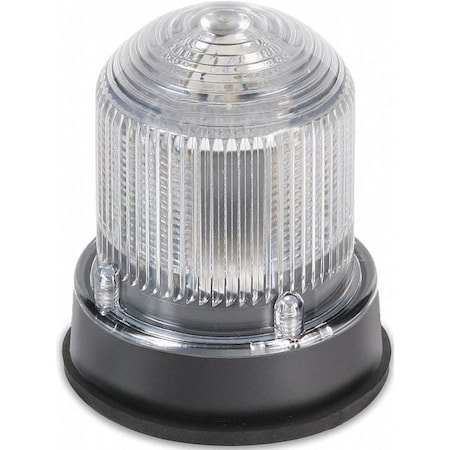

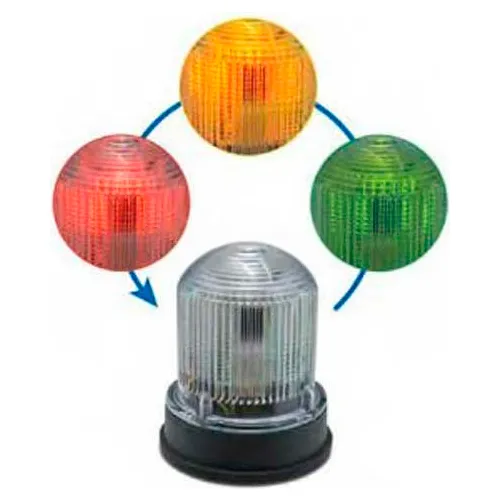

Edwards Signaling 125XBRIRBA24DB 125 Chameleon, Superbright, RBA
- Brand: Edwards-Signaling
- PartNumber: 125XBRIRBA24DB
- Model: 125XBRIRBA24DB
- Color: 4
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Edwards Signaling Company
- Label: Edwards Signaling Company
Attributes
| Key | Value |
|---|
| -35?C | Start Temp. (Min) |
| 0.15A | Amperage |
| 125XBRiRBA24DB | Stock Code |
| 24VDC | Voltage (V) |
| 66?C | Start Temp. (Max) |
| Approvals | cUL, UL |
| Audible Alarm Type | Visual |
| Base Diameter | 82.6 mm |
| Bulb Type | LED |
| Case Pack | 1 |
| Color | Blue ; Orange ; Red, Am. |
| Current Drawn | 0.15 A AC |
| Depth | 3 1/4 in |
| Diameter | 3 1/4 in |
| Edwards | Brand |
| Enclosure Rating | NEMA 4X |
| Estimated Lamp Life | 148,000 Hrs |
| Explosion Proof | No |
| Family Series | Edwards Signaling Visua. |
| Features | Heat Resistant, Shatter. |
| Flashes per Minute | 120, 240, 65 |
| For Use With | Outdoor |
| Gross Weight | 4 lbs |
| Hazardous Location Rated | No |
| Height | 3.874" (98.4mm), 3 7/8 . |
| Housing Material | Nylon 33% Glass Filled |
| Includes | Buna-N 70 Gasket |
| Item | Warning Light |
| Item Number | 125XBRIRBA24DB |
| Lamp Life | 148,000 hr |
| Lamp Type | (6) LED, LED |
| Lens Color | Amber ; Blue ; Red |
| Lens Design | Integral Screw Mount |
| Lens Material | Polycarbonate |
| Manufacturer | Edwards Signaling |
| Manufacturer Part Number | 125XBRIRBA24DB |
| Marine Listed | No |
| Maximum Opening Tempera. | 66 ?C |
| Minimum Operating Tempe. | -35 ?C |
| Mode of Operation | Continuous, Flashing |
| Mounting | Conduit, Panel, Panel/C. |
| Mounting Style | Conduit, Panel Mount |
| NEMA 4X | Enclosure Rating |
| Net Weight | 0.61 lbs |
| Nominal Voltage | 24 VDC |
| Operating Current | 0.15 A |
| Operating Temp. | -31 Degrees to 150 Deg. |
| Operating Temperature | -31-150 ?F |
| Operating Voltage | 24 VDC |
| Option For Panel Or Con. | Mounting |
| Power Source | DC Supply |
| Primary Type | Beacon |
| Product Series | 125XBRI |
| Rating | NEMA 4X |
| Red & Blue & Amber | Color |
| RoHS | No |
| Series | 125XBRi Series |
| Size | 82.6 W x 98.4 H mm |
| Special Features | Corrosion Resistant, Hi. |
| Standards | cUL, UL |
| Supply Voltage | 24 |
| Temperature Range | -35 to 66 C |
| Tower Light Color | Red, Blue, Amber |
| Type | Flashing |
| UL , cUL | UL Listed |
| Visual Signals | Family |
| Voltage | 24V DC |
| Width | 3 1/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5727093 | 316.99 | 1 | In Stock | | Edwards Signaling | 0.5 | 316.99 @ 1 |
 | sustainablesupply.com | C1797016 | 366.1 | 1 | In Stock | | Edwards Signaling | 0.5 | 366.1 @ 1 |
 | Walker Industrial | 125XBRIRBA24DB | 369.21 | 1 | In Stock | 17 | Edwards Signaling | | 369.21 @ 1 |
 | Galco | 125XBRIRBA24DB-EDWD | 381.52 | 1 | In Stock | | Edwards Signaling | 4.0 | 381.52 @ 1 |
 | National Supply Network | B664029 | 388.85 | 1 | In Stock | | Edwards Signaling | | 388.85 @ 1 |
 | Global Industrial | WBB664029 | 395.95 | 1 | In Stock | 80 | Edwards Signaling | | 395.95 @ 1 |
| Platt.com | 0341180 | 418.2 | 1 | In Stock | | Edwards | | 418.2 @ 1 |
 | Lighting Supply | 125XBRIRBA24DB | 436.71 | 1 | In Stock | | Edwards Signaling | | 436.71 @ 1 |
 | bulbspro.com | 125XBRIRBA24DB | 441.0 | 1 | In Stock | | Edwards | | 441.0 @ 1 |
 | Raptor Supplies | AA7QHL | 546.60762 | 1 | In Stock | | EDWARDS SIGNALING | | 546.60762 @ 1 |
| us.rs-online.com | 70016430 | 586.27 | 1 | In Stock | | Edwards Signaling | | 586.27 @ 1 |
| Kele | 125XBRIRBA24DB | 669.2 | 1 | In Stock | | Edwards Signaling | | 669.2 @ 1 |
| kirbyrisk.com | 2511758 | 685.53 | 1 | In Stock | | Edwards Signaling | | 685.53 @ 1 |
