Attributes
| Key ^ | Value |
|---|---|
| Amps - Water Heaters, Amps AC | 150 |
| Application, Water Heater Application | Sanitation |
| Cold Inlet Size | 1 1/4 in |
| Commercial / Residential, Residential / Commercial | Commercial |
| Control Type | Digital Display with Keypad |
| Cord Conductor Gauge | 1/0 AWG Wire |
| Country of Origin (subject to change) | United States |
| Current | 150 A |
| Default Temperature | 120 Degrees F |
| Depth | 10-9/32" |
| Element Material | Non-Ferrous Metal |
| Elements | Lead-Free Replaceable Cartridge Insert |
| Energy Factor | 0.94 |
| Environment | Indoor |
| Features | Fine Tuned Control Board with Temp/Pressure/Flow Algortithm, Speed to Temperature, Low Hysteresis, Low Pressure Drop, Minimal Diagnostics, and Temperature Overshoot, Dry Fire Safety Sensor, Temp Accuracy: +/-1 Degrees at Steady State Flow |
| Height | 17-27/64" |
| Housing Material | Aluminum |
| Housing Material Finish | Powder Coated |

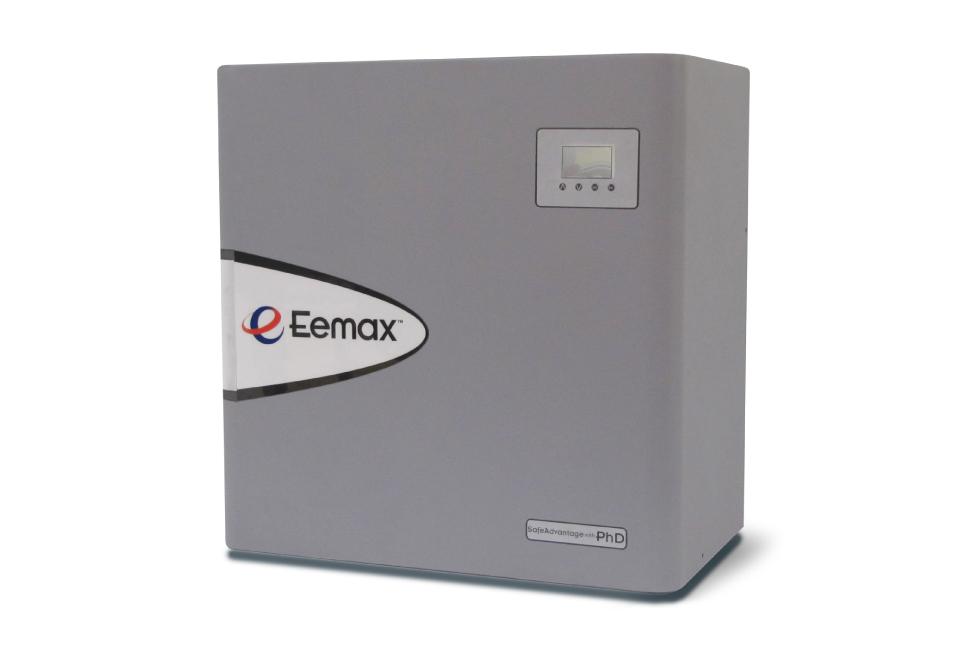

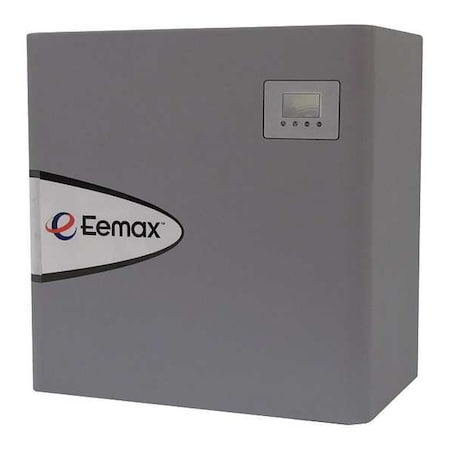

| Item, Item - Water Heaters | Electric Tankless Water Heater |
| Market | Commercial, Industrial |
| Max. Flow Rate, Maximum Flow Rate | 40 gpm |
| Maximum Delivered Temperature | 180 Degrees F |
| Maximum Water Pressure, Pressure Range | 150 psi |
| Min. Flow Activation | 1.50 gpm |
| Minimum Delivered Temperature | 100 Degrees F |
| Minimum Flow Activation | 6 gpm |
| Minimum Water Pressure | 35 psi |
| Mounting Type | Wall Mounting |
| Mounting, Mounting Orientation | Vertical |
| Operating Voltage | 208V AC |
| Overall Dimensions - H x W x D | 17.61 in x 26.17 in x 10.28 in |
| Phase, Phase - Water Heaters | 3 |
| Power Consumption | 54,000 W |
| Promotion Restriction | Not eligible for promotion |
| Standards | UL 499, CSA |
| Temp. Range, Temp. Range - Water Heaters | 0 Degrees to 180 Degrees F |
| Temp. Rise @ 1.5 GPM | 245 Degrees F |
| Temp. Rise @ 2.5 GPM, Temp. Rise @ 2.5 GPM - Water Heaters | 147 Degrees F |
| Temp. Rise @ 20.0 GPM | 18 Degrees F |
| Temp. Rise @ 4.0 GPM | 92 Degrees F |
| Temp. Rise @ 6.0 GPM | 61 Degrees F |
| Temp. Rise @ 8.0 GPM | 46 Degrees F |
| Temperature Range | 100 Degrees F to 180 Degrees F |
| Temperature Rise @ Flow | 12 Degrees F @ 30 gpm, 123 Degrees F @ 3 gpm, 14 Degrees F @ 26 gpm, 16 Degrees F @ 23 gpm, 18 Degrees F @ 20 gpm, 61 Degrees F @ 6 gpm, 74 Degrees F @ 5 gpm, 92 Degrees F @ 4 gpm |
| Voltage | 208VAC |
| Voltage - Water Heaters | 208 |
| Water Connection | 1-1/4" NPT |
| Water Connection Location | Bottom |
| Water Heater Design | Point-of-Use |
| Watts - Water Heaters | 54,000 |
| Width | 26-11/64" |
| Wire Size | 1/0 AWG |
