Eemax AP108480 EFD N4

B00LBHMN8S

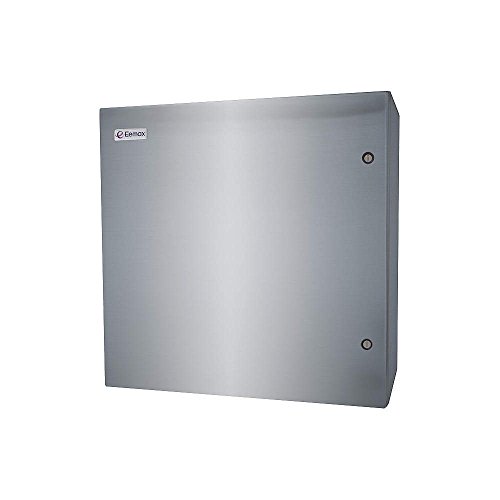

Eemax AP108480 EFD N4 108KW 480V Tankless Water Heater for Emergency Shower/Eye Wash Combo in Nema 4 Cabinet

Eemax AP108480 EFD N4 108KW 480V Tankless Water Heater for Emergency Shower/Eye Wash Combo in Nema 4 Cabinetzoom

Attributes

Key Value
Amps - Water Heaters130
Amps AC130
ApplicationEmergency Eye, Face and.
Cold Inlet Size1 1/4 in
Commercial / ResidentialCommercial
Control TypeDigital Display with Ke.
Cord Conductor Gauge1 AWG Wire
Country of Origin (subj.United States
Current130 A
Default Temperature120 Degrees F
Depth10-9/32"
Element MaterialNon-Ferrous Metal
ElementsLead-Free Replaceable C.
Energy Factor0.94
EnvironmentIndoor
FeaturesFine Tuned Control Boar.
Height17-27/64"
Housing MaterialSteel
Housing Material FinishPowder Coated
ItemElectric Tankless Water.
Item - Water HeatersElectric Tankless Water.
MarketCommercial, Industrial
Max. Flow Rate40 gpm
Maximum Delivered Tempe.90 Degrees F
Maximum Flow Rate40 gpm
Maximum Water Pressure150 psi
Min. Flow Activation2.50 gpm
Minimum Delivered Tempe.80 Degrees F
Minimum Flow Activation2.5 gpm
Minimum Water Pressure35 psi
MountingVertical
Mounting OrientationVertical
Mounting TypeWall Mounting
NEMA Rating4
Operating Voltage480V AC
Overall Dimensions - H .24 in x 30 in x 13.5 in
Phase3
Phase - Water Heaters3
Power Consumption108,000 W
Pressure Range150 psi
Promotion RestrictionNot eligible for promot.
Residential / CommercialCommercial
StandardsUL 499, CSA
Temp. Range60 Degrees to 90 Degre.
Temp. Range - Water Hea.60 Degrees to 90 Degre.
Temp. Rise @ 2.5 GPMLimited to Thermostatic.
Temp. Rise @ 2.5 GPM - .90 Degrees F
Temp. Rise @ 20.0 GPM37 Degrees F
Temp. Rise @ 4.0 GPMLimited to Thermostatic.
Temp. Rise @ 6.0 GPM122 Degrees F
Temp. Rise @ 8.0 GPM92 Degrees F
Temperature Range80 Degrees F to 90 De.
Temperature Rise @ Flow25 Degrees F @ 30 gpm, .
Voltage480VAC
Voltage - Water Heaters480
Water Connection1-1/4" NPT
Water Connection Locati.Bottom
Water Heater ApplicationEmergency Eye, Face & D.
Water Heater DesignPoint-of-Use
Watts - Water Heaters108,000
Width26-11/64"
Wire Size1 AWG
