- mpnEX190T2 S
- brandname: EEMAX
- manufacturername: EEMAX

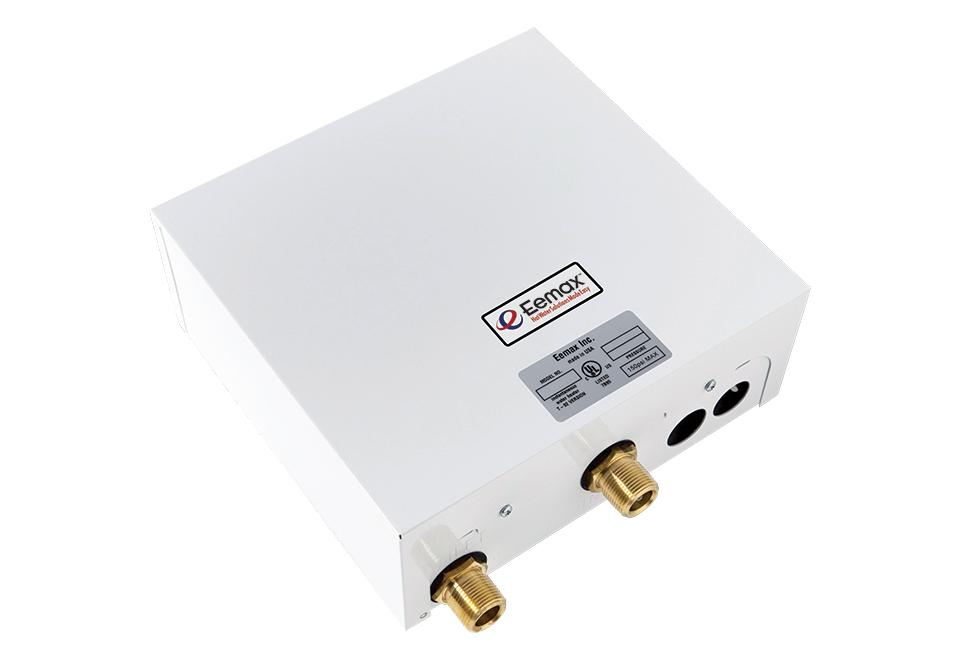

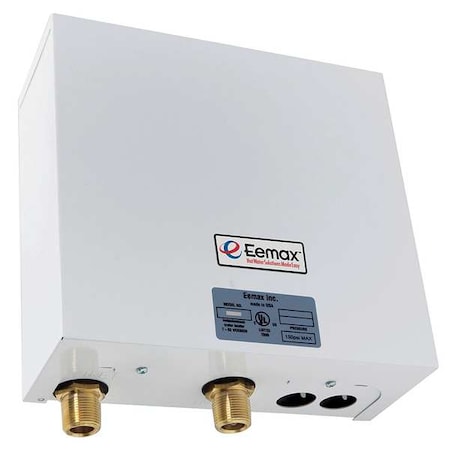

Eemax EX190T2 S 19KW 240V Canada Electric Tankless Water Heater, White
- Brand: Eemax
- PartNumber: EX190T2 S
- Model: EX190T2 S
- Color: White
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: StandardPlumbing: Kohler
- Label: StandardPlumbing: Kohler
Attributes
| Key | Value |
|---|
| Adjustable Thermostat | Yes |
| AMP | 80 |
| Amps - Water Heaters | 79 |
| ANSI Specifications | ANSI 372 |
| Application | Commercial, Industrial,. |
| Brand | Eemax |
| BTU | 64831 |
| Cold Inlet Size | 3/4 in |
| Collection | Series Two? TC |
| Color | White |
| Color Finish | White |
| Color Finish Category | Whites |
| Commercial / Residential | Commercial |
| Cord Conductor Gauge | 8 AWG Wire |
| CSA Certified | CSA-C22.2 No. 64 |
| Current | 79 A |
| Current Stock | 7 |
| Depth | 4-3/8 in, 4-1/2" |
| Element Material | Nichrome |
| End Connection 1 | NPT |
| End Connections | NPT |
| Environment | Indoor |
| Features | Cut Energy Costs - Flow. |
| Fitting Size 1 | 3/4 in |
| Fitting Sizes | 3/4 in |
| Flow Rate | 4 gpm |
| Height | 10", 10-1/8 in |
| High Pressure | 150 |
| Hot Outlet Size | 3/4 in |
| Hot Outlet Type | NPT |
| Housing Material Finish | Powder Coated |
| Indoor Outdoor | Indoor |
| Installation Type | Wall Mount |
| International Shipping | No |
| Item | Electric Tankless Water. |
| Item - Water Heaters | Electric Tankless Water. |
| Low Pressure | 35 |
| Manufacturer Warranty L. | 1 yr on Parts, 5 yr Lim. |
| Market | Commercial, Industrial |
| Max. Flow Rate | 4 gpm |
| Maximum Delivered Tempe. | 100 Degrees F |
| Maximum Flow Rate | 4 gpm |
| Maximum Temperature | 180 |
| Maximum Water Pressure | 150 psi |
| Min. Flow Activation | 1.50 gpm |
| Minimum Delivered Tempe. | 180 Degrees F |
| Minimum Flow Activation | 1.5 gpm |
| Minimum Water Pressure | 40 psi |
| Mounting | Vertical |
| Mounting Orientation | Vertical |
| Mounting Type | Wall Mounting |
| Mpn | EX190T2 S |
| NSF Certified | Yes |
| NSF Specifications | NSF 372 |
| Operating Voltage | 240V AC |
| Origin | Domestic |
| Overall Depth | 4.5 in |
| Overall Dimensions - H . | 10.25 in x 10.75 in x 4. |
| Overall Height | 10.25 in |
| Overall Width | 10.75 in |
| Phase | Single, Single Phase |
| Phase - Water Heaters | 1 |
| Power Consumption | 19,000 W |
| Power Source | Electric |
| Promotion Restriction | Not eligible for promot. |
| SKU | ZO-G7619586 |
| Standards | UL 499 File E36887(M) |
| SubCategory | Plumbing |
| Temp. Range | 180 Degrees F |
| Temp. Range - Water Hea. | 180 Degrees F |
| Temperature Range | 100 to 180 Deg F |
| Temperature Rise @ Flow | 32 Degrees F @ 4 gpm, 4. |
| Type | EEX190T2S |
| UL Listed | UL 499 |
| UPC | 091654902123 |
| Voltage - Water Heaters | 240 |
| Volts | 240V |
| Water Connection | 3/4" NPT |
| Water Heater Application | Sanitation |
| Water Heater Design | Point-of-Use |
| Water Heater Type | On-demand |
| Watts | 19 |
| Watts - Water Heaters | 19,000 |
| Weight | 10.5 |
| Width | 10-5/8 in, 10-1/2" |
| Wire Gauge | 8 ga |
| Wire Size | 8 AWG |
