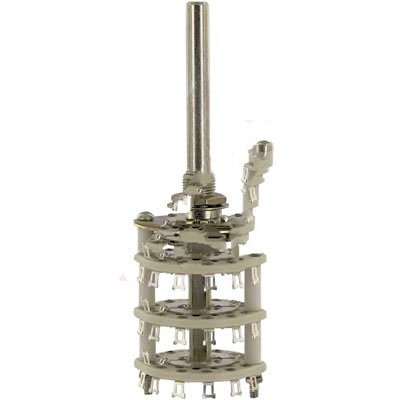

Electroswitch Inc. D4C0606N

Electroswitch Inc. D4C0606N, Switch, Rotary; 6 Pole; 2-6 Pos; 3 Sec; Ceramic Ins; Non-Shorting; 1.5A; 28VDC; Solder

Electroswitch Inc. D4C0606N, Switch, Rotary; 6 Pole; 2-6 Pos; 3 Sec; Ceramic Ins; Non-Shorting; 1.5A; 28VDC; Solderzoom

Attributes

Key Value
AC Voltage115 V
Actuator Length47.63mm
Actuator TypeShaft ; 6.35 mm Dia, Ro.
Angle of Throw30?
CategorySwitches
Circuit per DeckDP6T
Contact FinishSilver
Contact FormDP6T
Contact MaterialBrass
Contact PlatingSilver
Contact TimingNon-Shorting (BBM)
Current Rating0.5 A
Current Rating (Amps)500mA (AC), 1.5A (DC)
DC Voltage28 V
Depth1.781 in
Depth Behind Panel45.24mm
Dielectric Strength1500 VAC
Features-
FunctionNon-Shorting (BBM)
Index StopsAdjustable
IndexingAdjustable
Insulation MaterialCeramic
Mechanical Life25000 Cycles (Min.)
MfrElectroswitch
Mounting Hole Size0.375 in
Mounting TypePanel Mount
Number of Decks3
Number of Poles2
Number of Poles per Deck2
Number of Positions2 to 6, 2 ~ 6
Operating ForceCeramic
PackageBulk
Panel Cutout DimensionsCircular - 9.78mm Dia
Part StatusActive
SeriesD4, D4 Series
TerminationSolder Lugs
Termination StyleSolder Lug
TypeRotary
Voltage Rating115 VAC
Voltage Rating - AC115V
Voltage Rating - DC28V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comD4C0606N101.13126ELECTROSWITCH101.13 @ 1
Digi-Key1209090126.491In StockElectroswitch126.49 @ 1
us.rs-online.com70152448159.7512Electroswitch Inc.159.75 @ 1
thumbzoomNewark06M4652222.261In StockELECTROSWITCH222.26 @ 1
