7311-B-TVP-UA

B00DBNNY4C

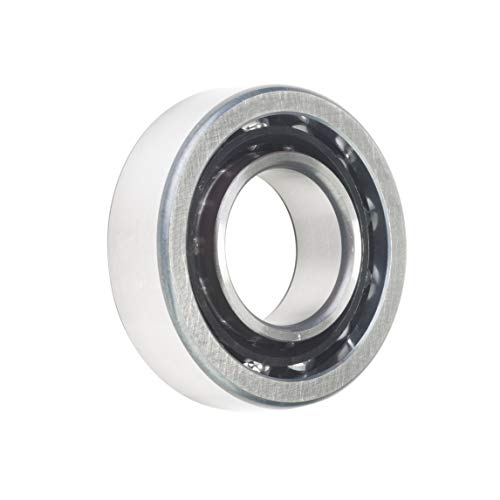

Fag 7311BTVPUA Angular Contact

Fag 7311BTVPUA Angular Contactzoom

Attributes

Key Value
ABEC Tolerance5
Bore2.165 Inch | 55 Millime.
Bore Dia.55 mm
BrandFAG BEARING
Cage MaterialPolymer, PA66
CategoryAngular Contact Ball Be.
Contact Angle (Degree)40
Country of Origin (subj.United States
Dynamic Load Capacity (.86,000
EAN4012801166621
EnclosureOpen
Global Part Number GPN235623
Harmonized Tariff Code8482.10.50.28
Inch - MetricMetric
ItemAngular Contact Ball Be.
LubricationOil
Manufacturer NameSCHAEFFLER GROUP
Max. RPM6,300 RPM
Outside Dia.120 mm
Outside Diameter4.724 Inch | 120 Millim.
Precision ClassABEC 1 | ISO P0
price$ 176.23 / each
Seal MaterialUnsealed
Seal TypeOpen
Static Load Capacity (N)61,000
Temp. Range (F)-22 to 248
title7311-B-TVP-UA
Type-
UNSPSC31171531
Weight / kgm1.38
Weight / LBS3.043
Width1.142 Inch | 29 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6864146142.31In StockFag Bearings3.04142.3 @ 1
thumbzoomLily Bearing7311-B-TVP-UA149.81In StockFAG BEARING3.036149.8 @ 1
thumbzoomPurvis7311-B-TVP-UA225.231In StockFAG225.23 @ 1
thumbzoomsustainablesupply.comC1648689239.011In StockFag Bearings3.04239.01 @ 1
