Best Price Square FQA36P15

mpnFQA36P15
brandname: FAIRCHILD
manufacturername: FAIRCHILD

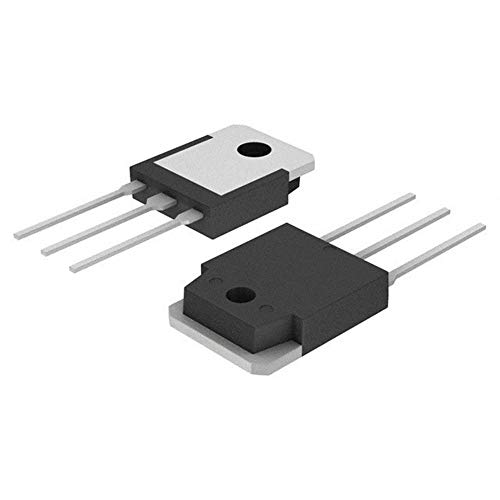

FAIRCHILD SEMICONDUCTOR FQA36P15 P CHANNEL MOSFET, -150V, 36A, TO-3P (1 piece)

FAIRCHILD SEMICONDUCTOR FQA36P15 P CHANNEL MOSFET, -150V, 36A, TO-3P (1 piece)

zoom

Brand: Best Price Square
PartNumber: FQA36P15
Model: FQA36P15
Size: 1 Piece
PackageQuantity: 1
Manufacturer: FAIRCHILD SEMICONDUCTOR
Label: FAIRCHILD SEMICONDUCTOR

Attributes

Key	Value
Alternate Part No.	512-FQA36P15
Base Product Number	FQA36
Brand	Fairchild Semiconductor
Category	Discrete Semiconductor .
Channel Mode	Enhancement
Configuration	Single
Current - Continuous Dr.	36A (Tc)
Description	MOSFET P-CH 150V 36A TO.
Detailed Description	P-Channel 150 V 36A (Tc.
Digi-Key Part Number	FQA36P15-ND
Drain to Source Voltage.	150 V
Drive Voltage (Max Rds .	10V
Fall Time	150 ns
FET Feature	-
FET Type	P-Channel
Forward Transconductanc.	19.5 S
Gate Charge (Qg) (Max) .	105 nC @ 10 V
Id - Continuous Drain C.	36 A
Input Capacitance (Ciss.	3320 pF @ 25 V
Manufacturer	onsemi, Fairchild, Fair.
Manufacturer Part No.	FQA36P15
Manufacturer Product Nu.	FQA36P15
Maximum Operating Tempe.	+ 175 C
Mfr	onsemi
Minimum Operating Tempe.	- 55 C
Mounting Style	Through Hole
Mounting Type	Through Hole
Operating Temperature	-55?C ~ 175?C (TJ)
Package	Tube
Package / Case	TO-3P-3, SC-65-3
Package/Case	TO-3PN-3
Packaging	Tube
Part # Aliases	FQA36P15_NL
Pd - Power Dissipation	294 W
Power Dissipation (Max)	294W (Tc)
Product Category	MOSFET
Product Status	Last Time Buy
Rds On (Max) @ Id, Vgs	90mOhm @ 18A, 10V
Rds On - Drain-Source R.	90 mOhms
Rise Time	350 ns
Series	QFET?, FQA36P15
Supplier Device Package	TO-3PN
Technology	MOSFET (Metal Oxide)
Transistor Polarity	P-Channel
Typical Turn-Off Delay .	155 ns
Unit Weight	6.401 g
Vds - Drain-Source Brea.	- 150 V
Vgs (Max)	?30V
Vgs - Gate-Source Break.	30 V
Vgs(th) (Max) @ Id	4V @ 250?A
Weight (lbs)	(0.004)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	FQA36P15	1.56	1	100		FAIRCHILD		1.56 @ 100
	Avnet	FQA36P15	1.961	30	100		ON Semiconductor		1.961 @ 100
	Hotenda	H1814331	2.1183	1	498		Fairchild Semiconductor		2.1183 @ 100
	Newark	45J3232	2.67	1	100		ONSEMI		2.67 @ 100
	Future Electronics	3042280	2.748	1	100		ON Semiconductor		2.376 @ 125
	BD Enterprises	FQA36P15	2.97	1	100		Fairchild	0.004	2.97 @ 100
	Digi-Key	1057384	3.7086	1	100		onsemi		3.7086 @ 100
	RS Delivers	671-4938P	5.016	1	100		onsemi		5.016 @ 100
	Radwell	FQA36P15	5.55	1	100		FAIRCHILD SEMICONDUCTOR		5.55 @ 100
	swatee.com	FQA36P15	6.44	1	1395		Fairchild Semiconductor		6.44 @ 100
	AmazonTP	B07R26K44W	47.84	1	100	2	ON Semiconductor		47.84 @ 100
	AmazonSC	B07R26K44W	68.77	1	100		ON Semiconductor		68.77 @ 100
