FAIRCHILD (ON SEMICONDUCTOR) FDPF10N60ZUT

B0731QX5N3

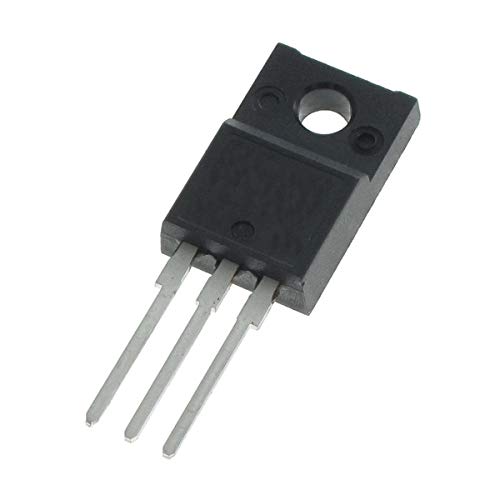

FAIRCHILD (ON SEMICONDUCTOR) FDPF10N60ZUT N Channel 600 V 800 m? Flange Mount UniFET Ultra FRFET Mosfet - TO-220F - 50 item(s)

FAIRCHILD (ON SEMICONDUCTOR) FDPF10N60ZUT N Channel 600 V 800 m? Flange Mount UniFET Ultra FRFET Mosfet - TO-220F - 50 item(s)zoom

Attributes

Key Value
Alternate Part No.512-FDPF10N60ZUT
Base Product NumberFDPF10
BrandFairchild Semiconductor
CategoryDiscrete Semiconductor .
Current - Continuous Dr.9A (Tc)
Drain to Source Voltage.600 V
Drive Voltage (Max Rds .10V
Fall Time60 ns
FET Feature-
FET TypeN-Channel
Forward Transconductanc.12.5 S
Gate Charge (Qg) (Max) .40 nC @ 10 V
Id - Continuous Drain C.9 A
Input Capacitance (Ciss.1980 pF @ 25 V
ManufacturerFairchild Semiconductor
Manufacturer Part No.FDPF10N60ZUT
Mfronsemi
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Operating Temperature-55?C ~ 150?C (TJ)
PackageTube
Package / CaseTO-220-3 Full Pack
Package/CaseTO-220-3
PackagingTube
Pd - Power Dissipation42 W
Power Dissipation (Max)42W (Tc)
Product CategoryMOSFET
Product StatusLast Time Buy
Qg - Gate Charge31 nC
Rds On (Max) @ Id, Vgs800mOhm @ 4.5A, 10V
Rds On - Drain-Source R.650 mOhms
Rise Time40 ns
SeriesFDPF10N60, UniFET?
Supplier Device PackageTO-220F-3
TechnologyMOSFET (Metal Oxide)
Transistor PolarityN-Channel
Typical Turn-Off Delay .95 ns
Unit Weight2.270 g
Vds - Drain-Source Brea.600 V
Vgs (Max)?30V
Vgs - Gate-Source Break.30 V
Vgs th - Gate-Source Th.5 V
Vgs(th) (Max) @ Id5V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceFDPF10N60ZUT0.86760136Fairchild/ON Semiconductor0.867 @ 60
HotendaH18248141.5761927Fairchild Semiconductor1.576 @ 50
RadwellFDPF10N60ZUT2.2100050FAIRCHILD SEMICONDUCTOR2.2 @ 1000
Digi-Key25096243.1944150onsemi3.1944 @ 50
thumbzoomswatee.comFDPF10N60ZUT5.39150Fairchild Semiconductor5.39 @ 50
